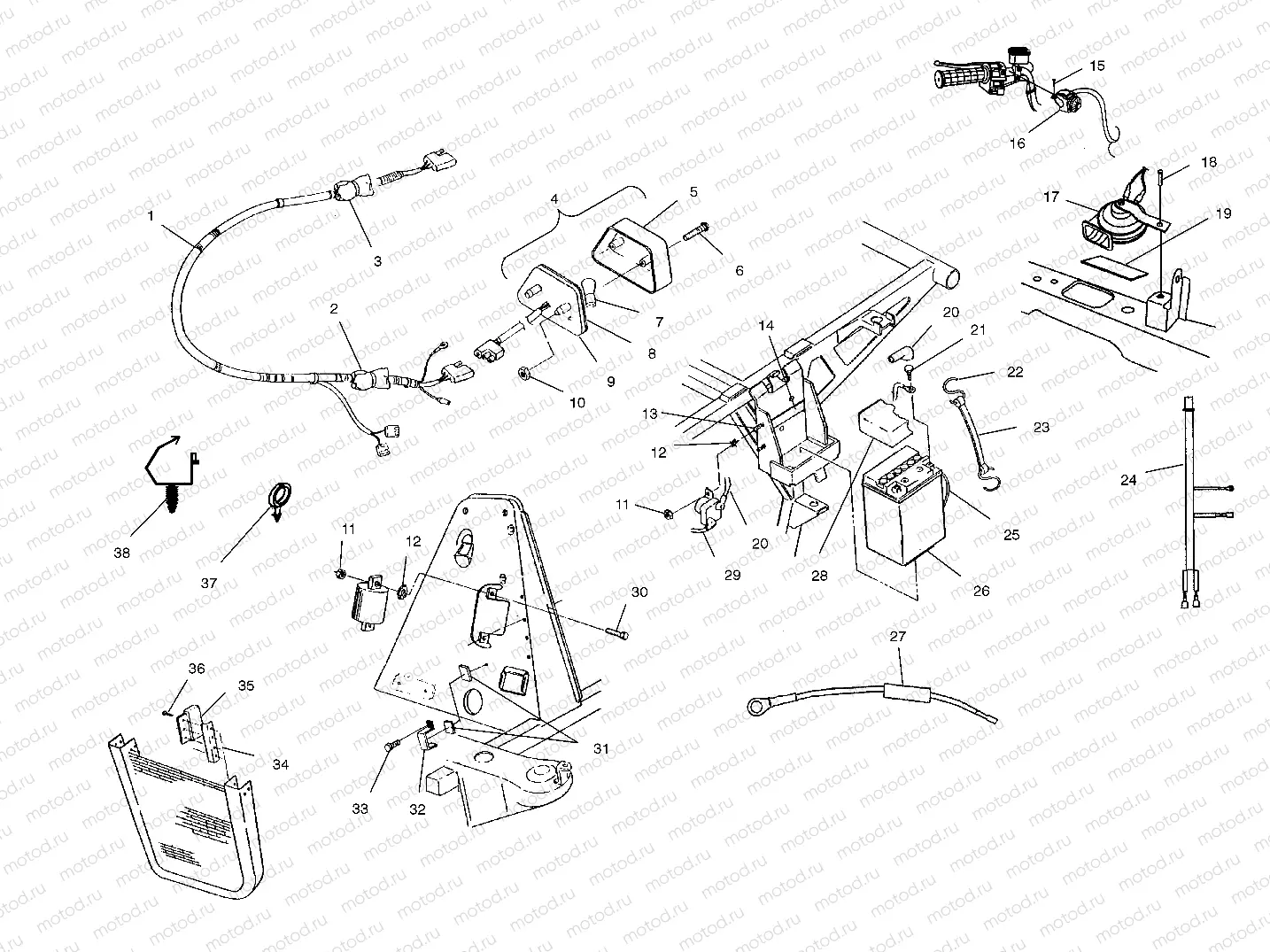

ELECTRICAL/TAILLIGHT - A02CH50 ALL OPTIONS (4967436743C08) | ELECTRICAL/TAILLIGHT - A02CH50 ALL OPTIONS (4967436743C08)

ELECTRICAL/TAILLIGHT - A02CH50 ALL OPTIONS (4967436743C08) | ELECTRICAL/TAILLIGHT - A02CH50 ALL OPTIONS (4967436743C08)

Например: 2460944

1

2460944

Harness, Main

2

2200593

KIT CKT.BRKR 20 AMP

3

2201795

KIT-CIRCUT BREAKER FAN

4

2410320

ASM-TAILLIGHT 12V SERIES FIL

4

2432034

TAIL LIGHT ASM.

5

4032046

Taillight lens

6

4032029

Vis

7

4030043

BULB

8

4032045

Gasket

9

4032064

BACKING TAILLIGHT

10

7670054

NUT PUSH-ON

11

7541925

NUT NYLOK 10-24 Y

12

7571602

Rondelle

13

7512027

Vis

14

5810290

PAD BATTERY

15

7517386

Vis

16

4010311

SWITCH BUTTON

17

4010310

HORN (FA)

18

7512057

SCREW(10) (FA)(FB)

19

5810317

PAD,FUELTANK BRKT. Substituted by 8360026

20

4010094

CABLE BATT/SOLENOID RED

21

2200361

KIT-BATTERY BOLT (SHORT)

22

7010032

HOOK-BATTERY STRAP

23

5418182

STRAP-BATTERY HOLD DOWN-C

24

2460837

HARNESS-ADAPTER,HORN (FA)

25

5432077

TUBE VENT

26

4140006

La batterie

27

2202147

KIT-FUSIBLE LINK

28

5431769

COVER BATTERY

29

4010093

CABLE SOL/STARTER

30

7512007

Vis

31

5810455

PAD

32

5241416

BRACKET-CDI

33

7512024

Vis

34

5131036

HEATSINK RECT.

35

2203636

KIT RECT-REG RPLC 4060173

35

4013954

REGULATOR-RECT LR-390 1200HZOB

36

7512018

Vis

37

4020149

CLIP ROSEBUD

38

7670109

CLIP-ROUTING
