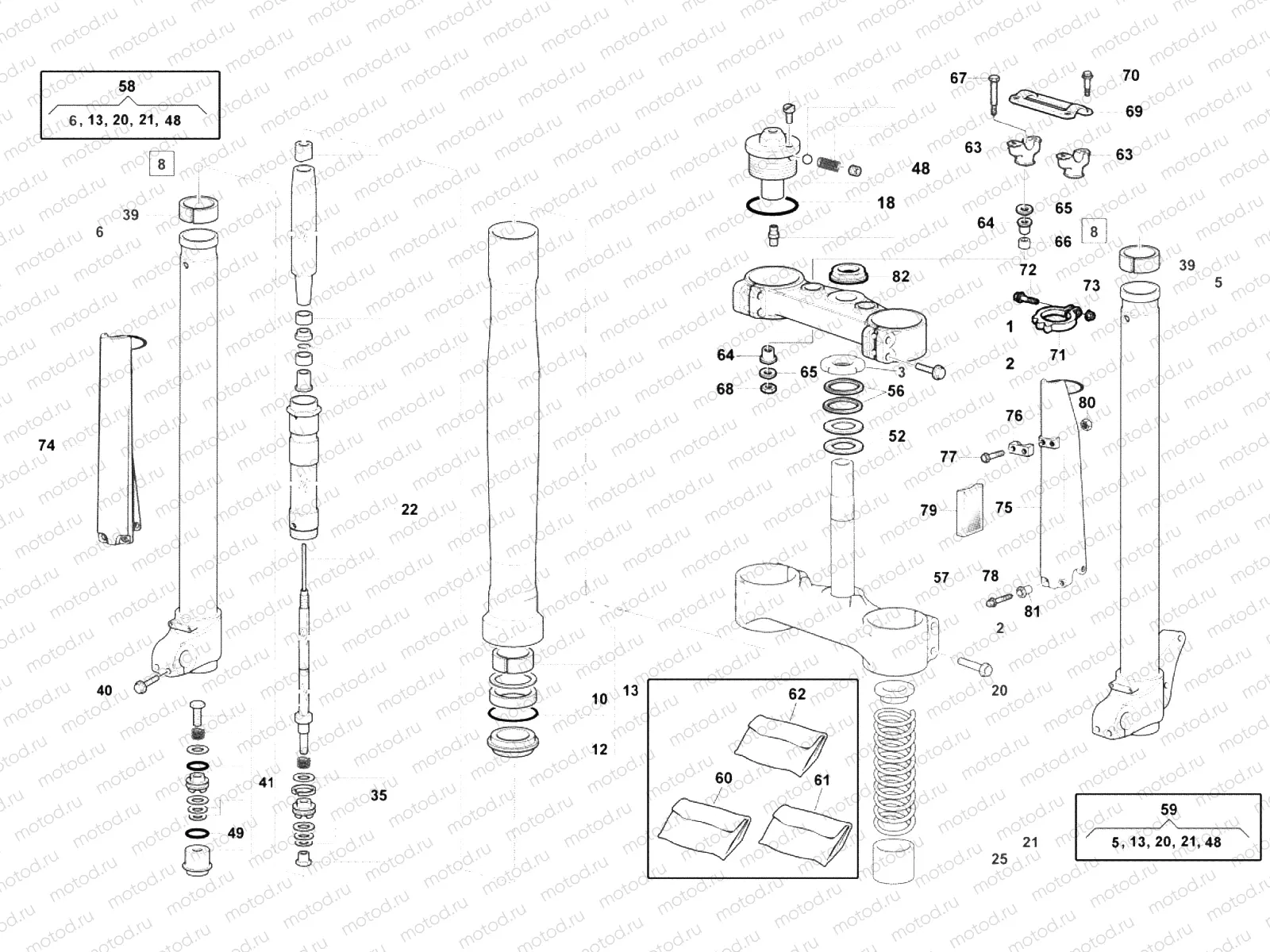

FRONT FORK ASSEMBLY

FRONT FORK ASSEMBLY
Например: 8D0095703
1
8D0095703
HEAD, STEERING STEM
2
Z00062796
Vis
3
8A0087717
Nut
5
80A0A7573
FORK INNER TUBE LH
6
80A098786
FORK INNER TUBE RH
8
8000A0380
Upper bushing (b) (c)
10
800085930
Seal ring(Gasket are also supplied in bag ref. N° 52)
12
800097749
FRONT FORK SEAL OVERHAUL SET
13
8A0091474
FORK OUTER TUBE
18
800091478
O-Ring (c)
20
800077373
CUP
21
8000A2228
SPRING, FRONT FORK K=5.0 N/MM
21
8000A7578
SPRING, FRONT FORK K=4.8 N/MM
22
8000B1661
CYLINDER COMP FRONT FORK
22
8000B1656
CYLINDER COMP FRONT FORK
25
8000A7579
SPACER, SPRING
25
8000H0090
Pipe
35
800089243
Circlip(Gasket are also supplied in bag ref. N° 52)
39
800091497
BUSHING-FRONT FORK, SLIDE LOW
40
Z00062729
Vis
41
8000B1657
SPINDLE TAPER
48
8000A7659
CAP, FRONT FORK
49
800097748
O-Ring
52
800087745
Gasket
56
800087736
WASHER 40.5X29.5X2
57
8000B0850
STEM, STEERING
58
8A00A6178
FRONT CUSHION ASSY RH
58
8A00A5304
FRONT CUSHION ASSY RH
59
8A00A6177
FRONT CUSHION ASSY LH
59
8A00A5303
FRONT CUSHION ASSY LH
60
800097749
FRONT FORK SEAL OVERHAUL SET
61
8000A0381
BUSH SET
62
8000A0379
FRONT FORK OVERHAUL SET
63
8A00A5879
HOLDER, HANDLE LOWER
64
800060233
RUBBER
65
800060234
Rondelle (28x22x10.5x2.5)
66
8000H3016
Entretoise
67
60ND01221
SCREW M10X75
68
Z00061314
Nut (Lock)
69
8000B0522
HANDLEBAR BRACKET, UPPER
70
SPMV8C00B2682
REW M8X1,25-L30
71
800093283
Collier
72
8B0067997
Vis (M5x0.8x30)
73
800056443
Nut
74
80C069338
GUARD FORK TUBE, RH
75
8000H6084
PROTECTION FORK TUBE, LEFT
75
800095696
GUARD FORK TUBE, LH
76
80A0A0633
PLATE
77
ZA0067997
Vis
78
Z00067997
Vis
79
800074842
REFLEX REFLECTOR, SIDE
80
Z00061355
Nut (Lock)
81
800069282
Bushing
82
8A0069315
NUT, STEERING STEM M26X1 CH30
