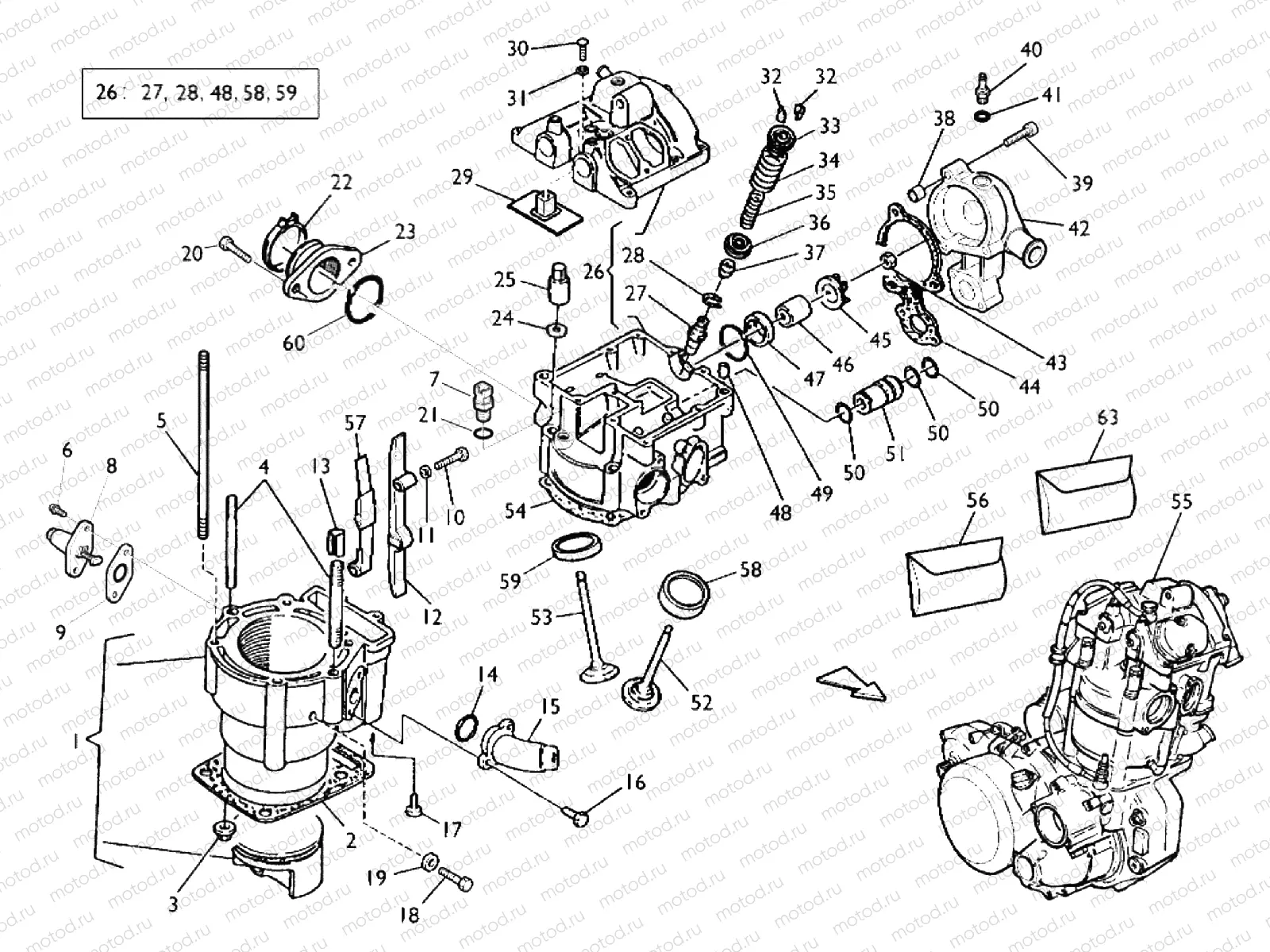

CYLINDER - CYLINDER HEAD

CYLINDER - CYLINDER HEAD
Например: 8000A5012
1
8000A5012
CYLINDER ASSY
2
161540702
Joint d'embase cylindre
3
61N115195
Mutter
4
161533201
Stud bolt
5
800081650
Stud bolt
6
60N107335
Vis
7
8000H3649
Water temperature switch
8
8A0068908
Tendeur de chaîne
9
161535801
GASCKET TENSIONER ASSY, CAM CH
10
161535902
Vis
11
800045194
WASHER 14X8.2X1
12
8000H9064
CHAIN SLIDER KIT 610
13
8000H0278
BUSH
14
SPMV800019789
pc - O-Ring
15
80A066222
JOINT
16
Z00062727
Vis
17
60N102511
Vis
18
Z00062725
Vis
19
8A0015960
Rondelle
20
8F0090426
Vis
21
8A0023108
O RING 2037
22
8000A7693
Collier
23
8000A6762
Pipe d’admission
24
SPMV800069156
pc - WASHER, 18x10,5x2 FLAT, BLACK
25
161535101
Nut
26
8B0081645
HEAD, CYLINDER
27
8B0080661
VALVE GUIDE
27
8A0080661
GUIDE, INTAKE VALVE +0.025 MM
28
800059940
ELASTIC RING
29
800073482
SHEET
30
800014837
SCREW TCIC M5X0.8X10
31
62N015672
ALUMINIUM WASHER 10X5.1X1
32
800077425
HALF-CONES
33
800081799
SEAT SPRING
34
800082205
SPRING, VALVE OUTER (EX)
35
800082204
SPRING, VALVE INNER (IN)
36
800081647
SPRING CAP
37
161530301
Seal ring
37
SPMV800075584
pc - O-Ring
38
161795501
BUSH 8X6.4X6
39
Z00062730
Vis
40
800066395
JOINT
41
8A0015960
Rondelle
42
80C075766
HOUSING, WATER PUMP
43
Z00042278
Nut
44
8A0063644
Gasket - water pump
45
8A0060415
IMPELLER, WATER PUMP
46
800053339
Joint
47
800063817
BUSH
48
161170801
BUSH
49
0770291016
O-Ring
50
SPMV800018422
O-Ring
51
8A0078765
WATER PIPE
52
8000A9321
Valve (EX)
53
8000A9320
Valve (IN)
54
800064726
Joint culasse
55
8000A7913
Engine assy
55
8000A8979
Engine assy
56
800097970
GASKET SET, ENGINE
57
800081151
GUIDE, TIMING CHAIN
58
8A0080669
SEAT, EXHAUST VALVE +0.03 MM
58
8B0080669
SEAT, EXHAUST VALVE +0.06 MM
59
8B0080668
SEAT, INTAKE VALVE +0.06 MM
59
8A0080668
SEAT, INTAKE VALVE +0.03 MM
60
8A0069413
O-RING 47.3X2.62
63
800097971
OIL SEAL SET, ENGINE
