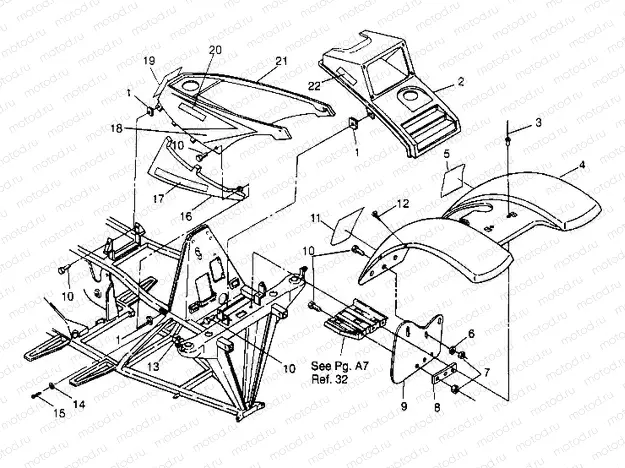

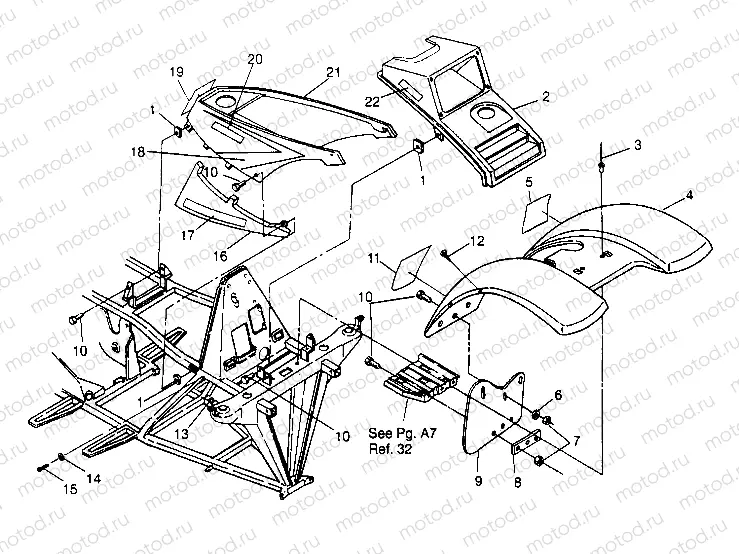

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 400L 2X4 (W947540) Polaris 1994 ATV FRONT CAB ASSEMBLY 2x4 400L W947540 (4926752675A005) | FRONT CAB ASSEMBLY 2x4 400L W947540 (4926752675A005)

FRONT CAB ASSEMBLY 2x4 400L W947540 (4926752675A005) | FRONT CAB ASSEMBLY 2x4 400L W947540 (4926752675A005)

FRONT CAB ASSEMBLY 2x4 400L W947540 (4926752675A005) | FRONT CAB ASSEMBLY 2x4 400L W947540 (4926752675A005)

Например: 7670060

1

7670060

NUT SPEED

2

5431202-136

COVER,(P.RED),H/L.

3

7621457

RIVET

4

2631610-136

CAB ASM,FR.LIQ-4WH,RED (Incl. 5,11)

5

7079083

DECAL-WARN,GENERAL,CPSC (AL)

6

7555859

WASHER FLAT

7

7542122

NUT-NYLOK

8

5211131-067

BRKT LH MUD FLAP

9

5850082-070

MUDFLAP,FRT,LH,BLK.

9

5850092-070

MUDFLAP,FRT,RH,BLK.

10

7512282

BOLT BLACK

11

7074608

DECAL,WARN(CPSC),DISCRET.

12

7670052

CLIP, PUSH-ON(10)

13

5410012

PLUG RUBBER-HOLE .5DIA

14

7558302

WASHER WROUGHT

15

7512232

Vis

16

5430970-143

COVER,LH PAN(L.GREY) Substituted by 5433382-143

16

5433579-143

COVER,RH,PAN.(L.GREY) Substituted by 5433579-143

17

7074230

DECAL,LH,SIDEPANEL

17

7074231

DECAL,RH,SIDEPANEL

18

7074229

DECAL,RH,TANKSIDE

18

7074228

DECAL,LH,TANKSIDE

19

7072933

DECAL(CPSC),AGE WARN. Substituted by 7074827

20

7074250

DECAL,'LIQUID COOLED'

21

5431263-143

COVER,FUELTANK,GREY

22

7074227

DECAL,'POLARIS'H/L POD
