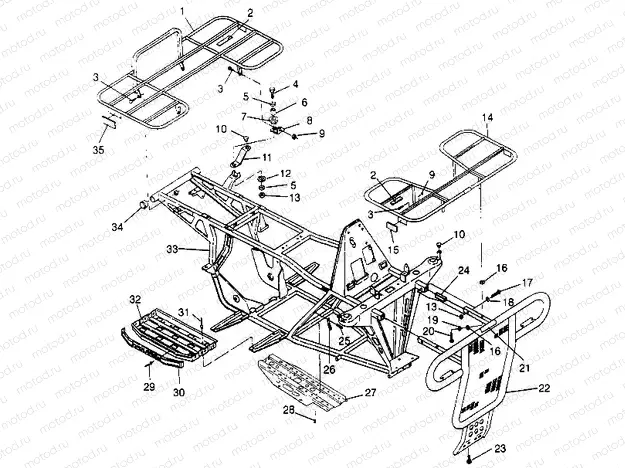

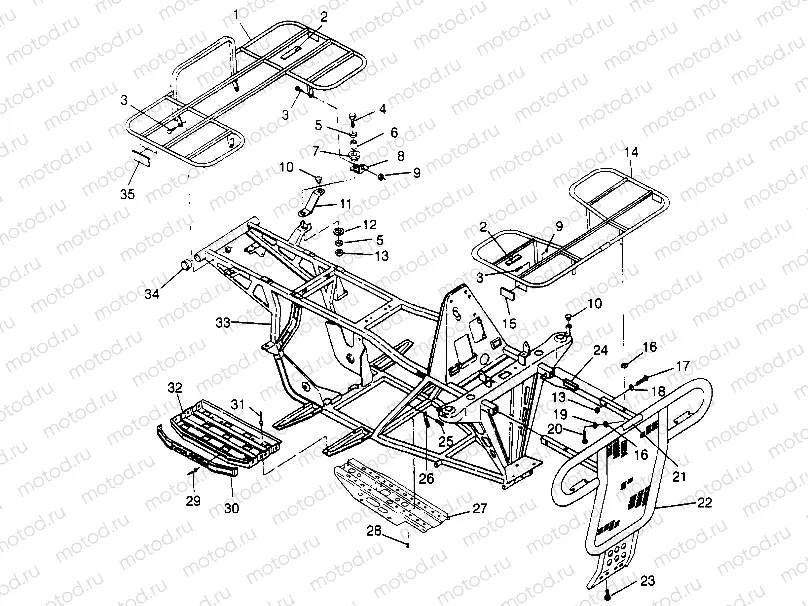

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 400L 2X4 (W947540) Polaris 1994 ATV BUMPER/RACK MOUNTING 2x4 400L W947540 (4926752675A007) | BUMPER/RACK MOUNTING 2x4 400L W947540 (4926752675A007)

BUMPER/RACK MOUNTING 2x4 400L W947540 (4926752675A007) | BUMPER/RACK MOUNTING 2x4 400L W947540 (4926752675A007)

BUMPER/RACK MOUNTING 2x4 400L W947540 (4926752675A007) | BUMPER/RACK MOUNTING 2x4 400L W947540 (4926752675A007)

Например: 2670138-067

1

2670138-067

RACK REAR

2

5810455

PAD

3

7515355

Vis

4

7515304

SCREW-FLANGED

5

7555716

Rondelle

6

5010192

BUSHING

7

5412508

DAMPENER-VIBRATION

8

5243468-067

BRKT SUPPORT RACK LH BLK

8

5220901-067

BRKT,RH SUPPORT RACK Substituted by 5243469-067

9

7542327

NUT NYLOK

10

5410012

PLUG RUBBER-HOLE .5DIA

11

5220902-067

SUPPORT R.FENDER

12

5410436

Rondelle (Rubber)

13

7542324

Nut (SELF-LOCKING)

14

2670137-067

RACK FRT.BLK.

15

2670134

ASM. REFLECTOR AMBER

16

7558301

WASHER FLAT

17

7512329

Vis

18

7558402

WASHER FLAT

19

7552801

Rondelle (Lock)

20

7512126

Vis

21

7074220

DECAL,MACPHERSON STRUT

22

2670125-067

BUMPER FRT BLK(2X4 350)

23

7512399

Vis

24

5810467

PLUG FRAME

25

7512208

Vis

26

5222665

TAB, SPRINGS

27

5240560-067

GUARD,ROCK,BLK.

28

7512232

Vis

29

7661825

RIVET

30

5431484

TRIM, FOOTREST

31

7661637

RIVET INTERLOCK Z

32

1040274-117

FOOTPAD,LH,SILVER

32

1040417-117

FOOTPAD,RH

33

1040347-067

FRAME,(400-2X4)

34

5432047

PLUG,ENDCAP(10)

35

2670133

REFLECTOR ASM RED
