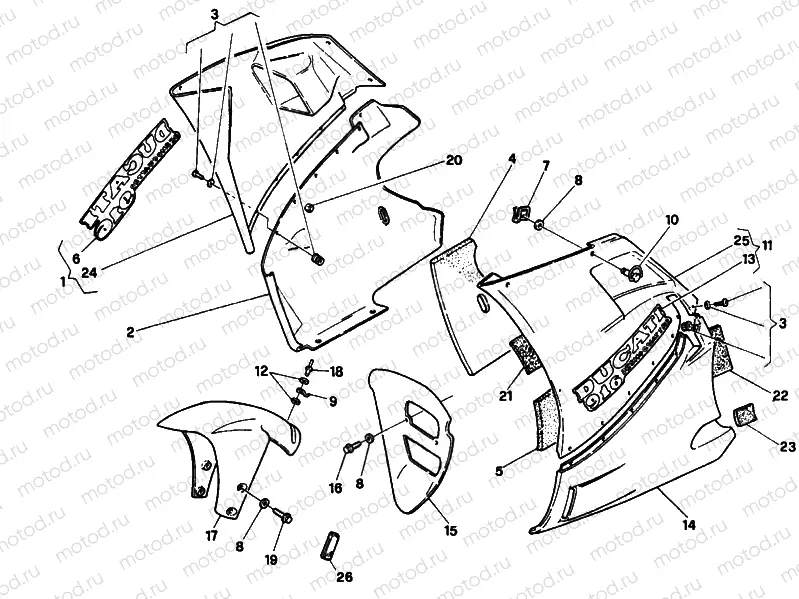

FAIRING » PLASTICS

FAIRING » PLASTICS
1
48010401A
RIGHT UPPER HALF-FAIRING
2
48010411A
RIGHT LOWER HALF-FAIRING
2
48030411A
RIGHT LOWER HALF-FAIRING
3
69920721A
SCREW & NUT KIT
4
48610441A
RIGHT SIDE PANEL
5
48610451A
LEFT SIDE PANEL
6
43710711A
RIGHTDUCATI 916 TRANSFER
7
85040191A
2 pc - CLAMP ATTACHMENT
8
85610421A
pc - Rondelle (plastic)
9
85010031A
2 pc - . CLIP
10
85044801A
PIN
11
48010391A
LEFT UPPER HALF-FAIRING
12
85210751A
pc - Rondelle
13
43710721A
LEFTDUCATI 916 TRANSFER
14
48010421BA
LEFT LOWER HALF-FAIRING
14
48030421B
LEFT LOWER HALF-FAIRING
15
48410191B
AIR CONVEYOR
15
48410192A
IR CONVEYOR
15
48430192A
IR CONVEYOR
16
77250968B
pc - Vis (M6x10)
17
56410181A
FRONT FENDER RED
17
969262AAA
Front mudguard
17
56430181A
FRONT MUDGUARD UNPAINTED
18
73640401A
.SHEAR RIVET
19
77210601A
pc - Vis
20
76410171A
Damper
21
46010651A
PANEL
22
46010661A
PANEL
23
46010671A
PANEL
24
48030401A
RIGHT UPPER HALF-FAIRING
25
48030391A
LEFT UPPER HALF-FAIRING
26
52910111A
.REFLEX REFLECTOR AMBER

Узлы для Superbike 916 DUCATI 1996
