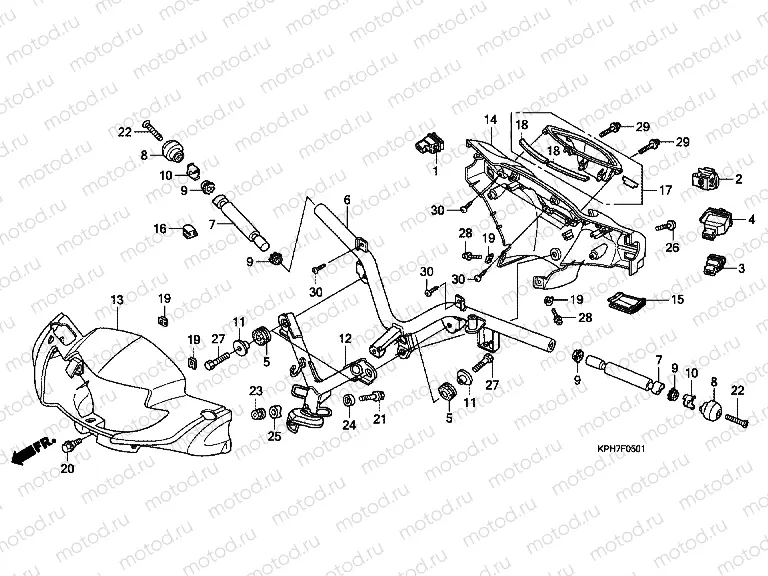

F-5-1 TIE ROD TUBE / HANDLE COVER / SWITCH (2)

F-5-1 TIE ROD TUBE / HANDLE COVER / SWITCH (2)
Например: 35160-KPH-971
1
35160-KPH-971
SWITCH UNIT, STARTING
2
35170-KPH-651
SW UNITDIMMER
1 488 ₽/шт
3
35180-KVB-851
SW UNITHORN
4
35200-KPH-971
SWITCH UNIT, WINKER
5
50613-KFL-850
RUBBER, MAIN STEP MOUNTIN
409 ₽/шт
6
53100-KPH-700
andlebar
7
53104-KPH-950
WEIGHT B, STEERING HANDLE
1 561 ₽/шт
8
53105-KPH-970
WEIGHT A, STEERING HANDLE
9
53106-KR3-000
UBBER A, HANDLE WEIGHT
291 ₽/шт
10
53108-KR3-770
ING, HANDLE WEIGHT SNAP
432 ₽/шт
11
53109-KPH-900
COLLARHANDLE MOU
12
53120-KTM-D20
POST COMPHANDLE
13
53205-KTM-950ZB
COVER, FR. HANDLE *NHA35M
14
53206-KPH-700
COVER, HANDLE RR.
15
53208-KPH-700
RUBB CAP B.HNDL R
16
53209-KPH-700
RUBB CAP AHNDL R
17
53270-KTM-D20ZA
SET ILLUS*NH411M*
18
53271-KTM-D20
APESPDMT COVER
19
64521-MN5-000
Clip nuts (4 mm)
189 ₽/шт
20
90103-KPH-720
BOLTFR HANDLE CO
21
90106-GN5-900
Vis
291 ₽/шт
22
90191-KPH-970
Vis (6x65)
275 ₽/шт
23
90304-KGH-901
Nut (10 mm)
291 ₽/шт
24
90501-KPH-880
COLLAR A, HANDLE SETTING
377 ₽/шт
25
90505-KPH-880
COLLAR B, HANDLE SETTING
432 ₽/шт
26
91509-GE2-760
Vis
234 ₽/шт
27
92101-080-250H
Bolt, hex., 8x25
63 ₽/шт
28
93891-040-1607
Screw-washer
47 ₽/шт
29
93891-040-2007
Screw-washer
47 ₽/шт
30
93903-24310
Vis
39 ₽/шт
