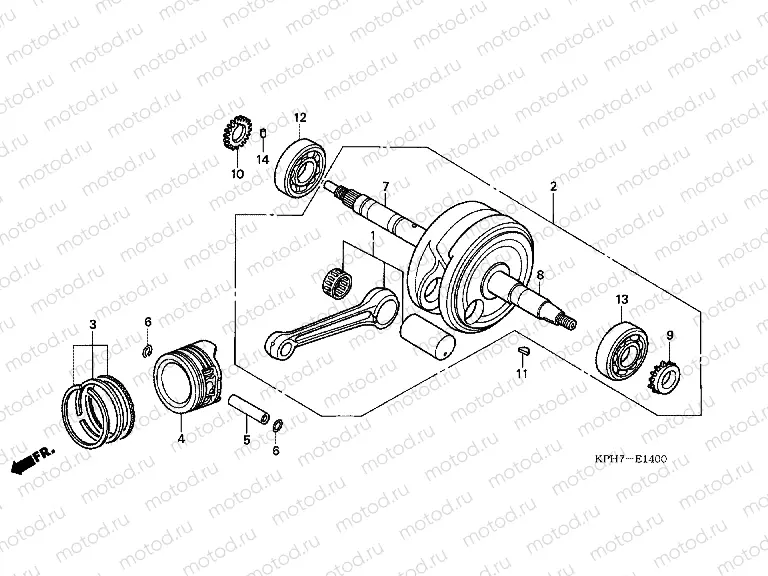

E-14 CRANKSHAFT / PISTON

E-14 CRANKSHAFT / PISTON
Например: 06381-KPH-900
1
06381-KPH-900
Connecting rod
2
13000-KPH-900
Vilebrequin
3
13051-KPH-900
ir segment (+ 1 mm)
4
13105-KTM-305
Piston (+ 1 mm)
5
13111-GB0-910
Piston pin
645 ₽/шт
6
13115-GN5-910
Snap ring - piston pin (13 mm)
181 ₽/шт
7
13310-KPH-900
CRANK SHAFT COMP
8
13321-KPH-900
CRANK SHAFTLEFT
9
14311-KPH-900
SPROCKETTIMING
10
15341-KPH-900
GEAR, OIL PUMP DRIVE (19T
1 792 ₽/шт
11
90701-HB6-010
Woodruff key (25 x 14 x 4)
305 ₽/шт
12
91001-KPH-881
Roulement
13
91002-KPH-902
BRGBALL RADIAL 6
14
94303-03050
DOWEL PIN, 3X5
86 ₽/шт
