Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA ANF 125 Innova HONDA ANF1257 Innova 2007 HONDA (VIN: MLHJC37A) F-31-1 MAIN PIPE COVER / FOOT PROTECTION SHEET (2)

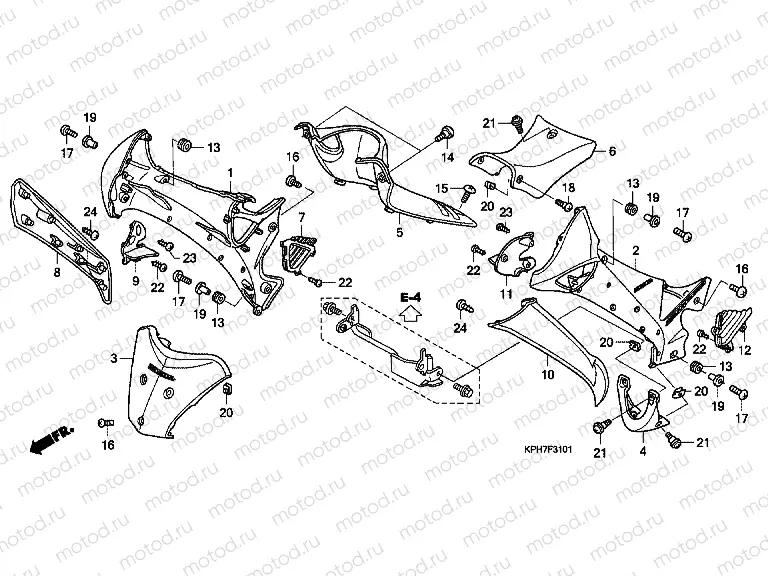

F-31-1 MAIN PIPE COVER / FOOT PROTECTION SHEET (2)

F-31-1 MAIN PIPE COVER / FOOT PROTECTION SHEET (2)
Например: 64200-KPH-700ZB
1
64200-KPH-700ZB
COVER SET, R. MAIN PIPE S
2
64250-KPH-700ZF
COVER SET, L. MAIN PIPE S
3
64300-KTM-D20ZB
SET ILLUST*TYPE2*
4
64310-KPH-700ZL
COVERUND*YR183M*
5
64320-KTM-D20
COVER, MAIN PIPE UPPER
6
64325-KPH-700
COVER, CENTER
7
64405-KPH-700ZA
LOUVER, R. *NH487M *
8
64430-KPH-700ZL
SHIELD, R. LEG *YR183M *
9
64435-KTM-D20
COVERR INNER
10
64440-KPH-700ZL
SHIELD, L. LEG *YR183M *
11
64445-KTM-D20
COVER, L. INNER
12
64455-KPH-700ZA
LOUVERL *NH487M*
13
77228-GBG-850
RUBBER, SEAT LOCK
14
90104-KPH-900
Vis (spec)
283 ₽/шт
15
90107-KGH-600
Vis (6x12)
393 ₽/шт
16
90107-KPH-970
Vis
17
90107-KTM-D20
Vis
18
90115-KW7-900
Vis (spec)
208 ₽/шт
19
90522-KPH-700
COLLARSIDE COVER
20
90677-KAN-T00
Clip nuts (5 mm)
338 ₽/шт
21
91509-GE2-760
Vis
234 ₽/шт
22
93903-24310
Vis
39 ₽/шт
23
93903-24480
Vis
39 ₽/шт
24
93903-25210
Vis
41 ₽/шт
