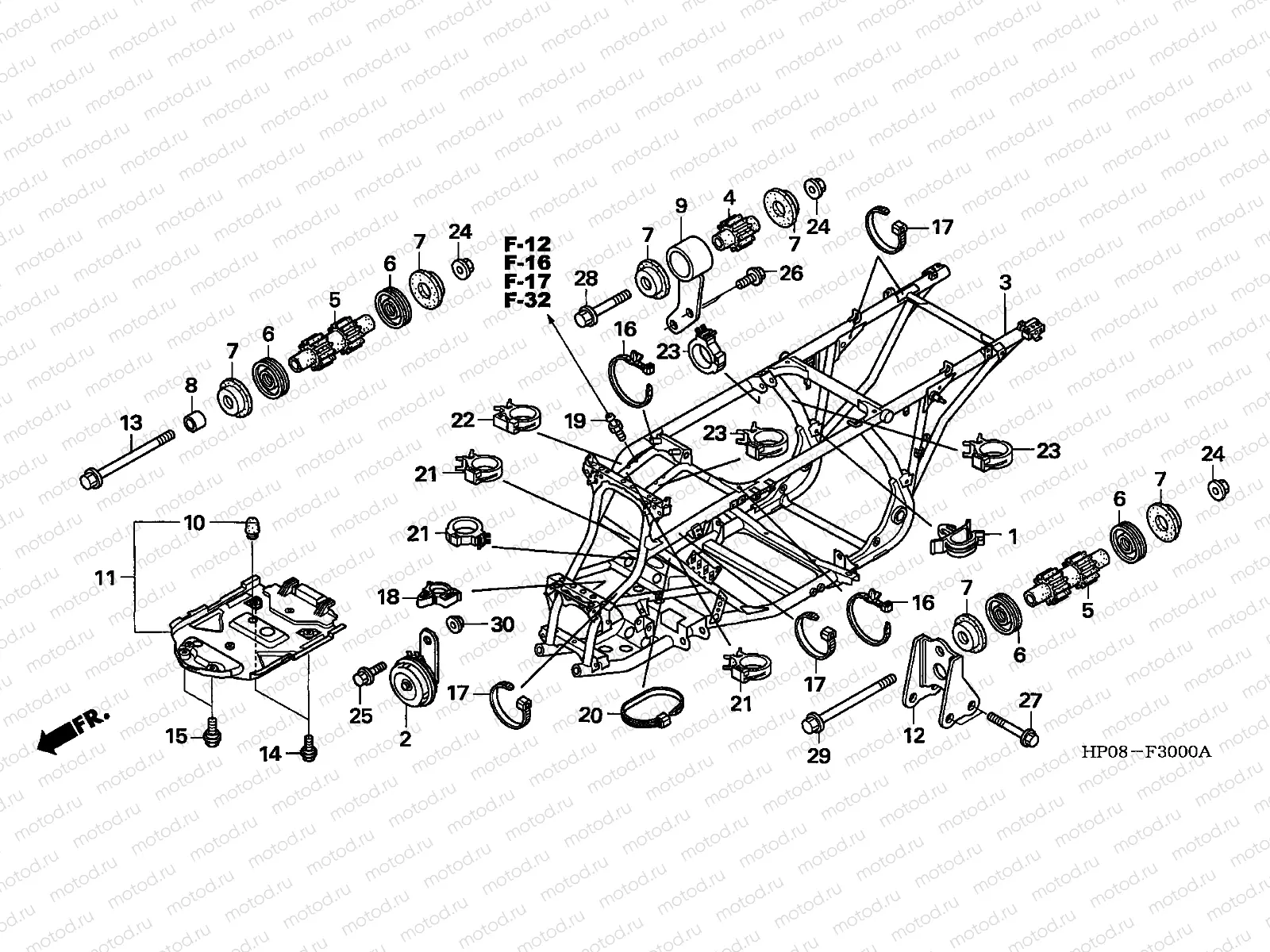

F-30 FRAME BODY

F-30 FRAME BODY
Например: 32161-393-003
1
32161-393-003
CLIP, WIRE HARNESS
417 ₽/шт
2
38110-HC4-732
ORN COMP. (HIGH)
2 847 ₽/шт
3
50100-HP0-A00
FRAME BODY COMP
4
50201-HN2-000
RUBBERENG HEAD M
5
50202-HN2-305
RUBBER SETENG LW
6
50203-HM7-003
DUST SEAL, ENGINE MOUNTIN
7
50204-HM7-003
OUNT RUBBER C
8
50205-HM8-000
COLLAR, ENGINE HANGER
9
50351-HP0-A00
LATEHEAD HANGER
10
50352-HM5-730
RUBBER A, STOPPER
11
50360-HP0-H10
GUARD ASSYENG
12
50363-HP0-A00
NGERLOWER ENG
13
90103-147-000
BOLT, ENGINE HANGER, 10X1
833 ₽/шт
14
90113-GF0-000
Vis
275 ₽/шт
15
90186-GBC-000
Vis
165 ₽/шт
16
90649-SC2-003
BAND, WIRE HARNESS (NATUR
290 ₽/шт
17
90651-KV6-003
BAND, WIRE, 165MM (BLACK)
311 ₽/шт
18
90652-HC4-003
LAMP, HARNESS
315 ₽/шт
19
90652-HF7-003
JOINT, BREATHER TUBE
20
90652-KT1-771
BAND, WIRE (BLACK)
244 ₽/шт
21
90690-GHB-661
CLIP, CABLE, 20MM
208 ₽/шт
22
90690-GHB-671
CLIP, CABLE, 25MM
208 ₽/шт
23
90690-GHB-681
CLIP, CABLE, 30MM
189 ₽/шт
24
94050-10000
Nut
79 ₽/шт
25
95701-080-1607
Bolt (95701-08016-07)
63 ₽/шт
26
95701-080-2000
БОЛТ
66 ₽/шт
27
95701-080-6000
Bolt, flange, 8x60
86 ₽/шт
28
95701-100-6000
Bolt, flange, 10x60
110 ₽/шт
29
95801-101-2000
Bolt, flange, 10x120
182 ₽/шт
30
94050-08000
Nut
55 ₽/шт
