Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA TRX 500 Fourtrax Foreman HONDA TRX500FE6 TRX500FE6 U 2006 HONDA (VIN: 1HFTE31U) F-3 HANDLE LEVER/SWITCH/CABLE

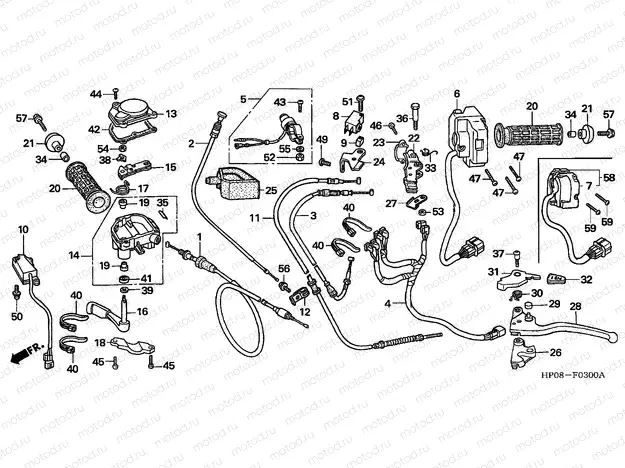

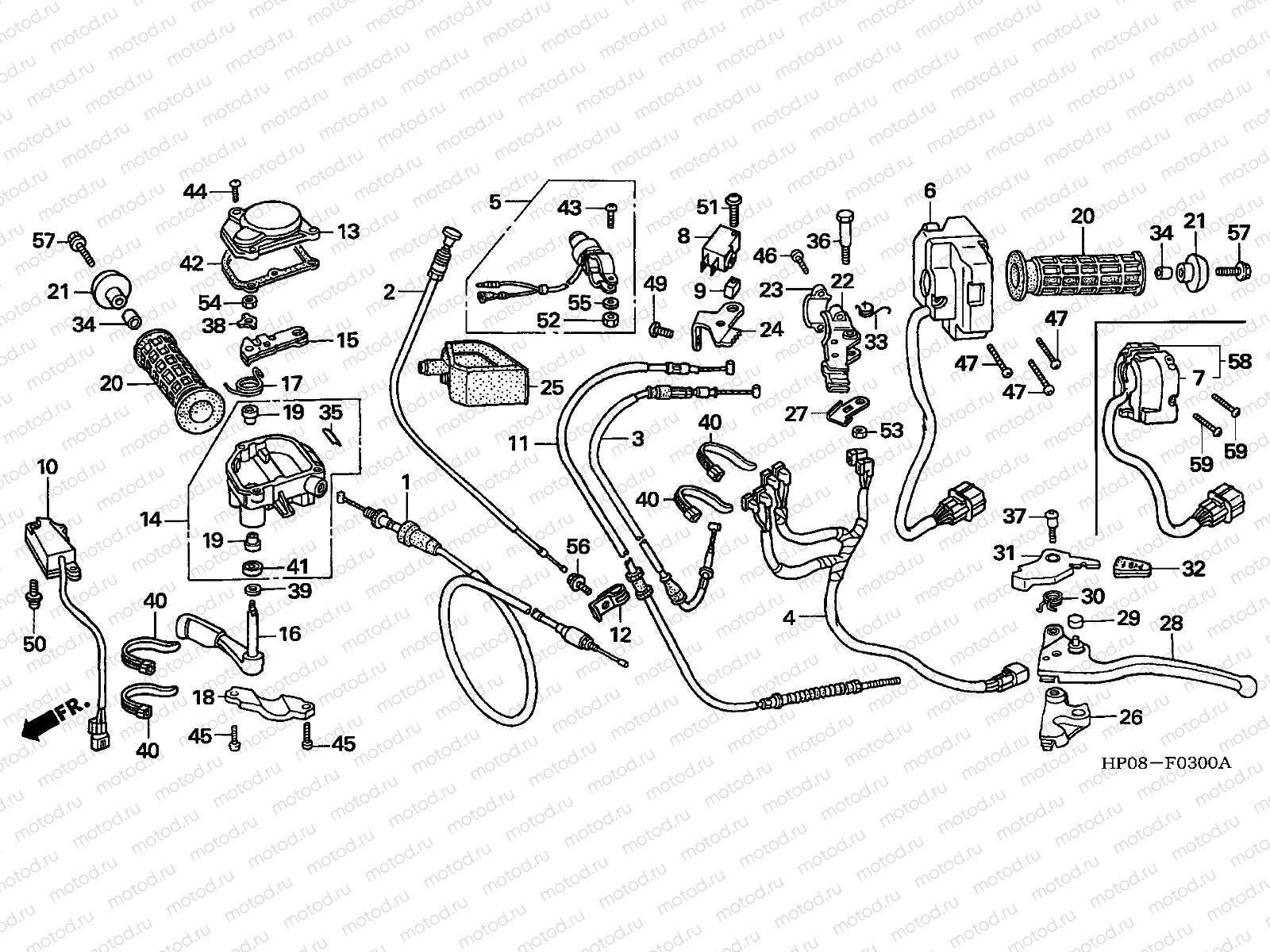

F-3 HANDLE LEVER/SWITCH/CABLE

F-3 HANDLE LEVER/SWITCH/CABLE

Например: 17910-HP0-A00

1

17910-HP0-A00

Câble de gaz

2

17950-HP0-A00

CABLE COMP., CHOKE

3

22880-HP0-A00

CABLE, REVERSE ASSIST

4

32105-HP0-A00

SUB HARNESS, FR. STOP SWI

5

35180-HM8-851

SWITCH ASSY., HORN

6

35200-HP0-A10

SWITCH ASSY., L. HANDLE

7

35201-HB7-671

COVERSWITCH

1 038 ₽/шт

8

35340-ML4-005

Commutateur de feu-stop

1 478 ₽/шт

9

35345-HF1-830

COLLAR, STOP SWITCH

10

35400-HP0-A00

SW ASSY2WD/4WD S

11

43460-HP0-A00

Câble de frein

12

50352-HN2-000

CLAMP, BRAKE CABLE

13

53141-HP1-000

COVER, THROTTLE CASE

14

53143-HN0-305

CASE ASSY., THROTTLE LEVE

15

53144-HA0-010

RM COMP., THROTTLE

723 ₽/шт

16

53145-HA0-770

LEVER, THROTTLE

2 514 ₽/шт

17

53146-HM8-000

SPRING, THROTTLE RETURN

18

53147-HN0-670

OLDER, THROTTLE CASE

19

53148-HA0-000

BUSH, THROTTLE PIVOT

566 ₽/шт

20

53165-958-010

GRIP, HANDLE

1 431 ₽/шт

21

53167-958-680

GUARD, HANDLE END

519 ₽/шт

22

53172-HN5-V70

BRACKET, BRAKE LEVER

23

53173-376-000

HOLDER, LEVER BRACKET

1 289 ₽/шт

24

53174-HP0-A00

STAYPKG STOPPER

25

53177-HP0-A00

COVERL HANDLE LE

26

53179-HA6-000

RM, REVERSE ASSISTANT

27

53179-HN5-M40

OLDER, STOP SWITCH SUB C

28

53180-HP0-A00

LEVER COMP., RR. BRAKE

29

53187-VM6-000

CAP, REVERSE PIN

275 ₽/шт

30

53191-961-010

SPRING, PARKING BRAKE LEV

307 ₽/шт

31

53192-HP0-A00

LEVER, PARKING BRAKE LOCK

32

53193-HA0-770

CAP, PARKING LEVER

454 ₽/шт

33

53193-HP0-A10

SPGRETURN LEVER

34

84906-118-000

COLLAR, NUMBER BRACKET SE

239 ₽/шт

35

87516-HN0-670

MARK, SELECT (2WD/4WD)

36

90114-HM8-000

BOLT, HANDLE LEVER PIVOT

37

90115-HA6-000

SCREW, PARKING LEVER PIVO

283 ₽/шт

38

90501-HA0-000

WASHER, LOCK, 6MM

272 ₽/шт

39

90504-HA0-000

Rondelle (9x20)

223 ₽/шт

40

90651-MA6-720

BAND, WIRE HARNESS

315 ₽/шт

41

91210-HA0-004

DUST SEAL, 9X16X5 (NOK)

404 ₽/шт

41

91210-HA0-004

DUST SEAL, 9X16X5 (NOK)

404 ₽/шт

42

91532-HA0-020

PACKING, THROTTLE CASE

272 ₽/шт

43

93500-040-140B

Screw, pan (4x14)

55 ₽/шт

44

93500-040-160G

Болт

41 ₽/шт

45

93500-050-140G

Screw, pan (5x14)

39 ₽/шт

46

93500-050-180G

Screw, pan, 5x18

41 ₽/шт

47

93500-050-280G

Screw, pan, 5x28

47 ₽/шт

49

93500-060-160G

Screw, pan (6x16)

47 ₽/шт

50

93891-040-1207

Screw-washer

47 ₽/шт

51

93893-040-2207

SCREW-WASHER, 4X22

52

94001-040-000S

Гайка

39 ₽/шт

53

94001-060-700S

Гайка

47 ₽/шт

54

94002-060-000S

Гайка

47 ₽/шт

55

94111-04000

WASHER, SPRING, 4MM

41 ₽/шт

56

95701-060-1200

Bolt

58 ₽/шт

57

95701-060-2507

БОЛТ

66 ₽/шт

58

35200-HP0-A02

SW ASSYLIGHT ENG

59

93500-050-250G

Screw, pan, 5x25

47 ₽/шт
