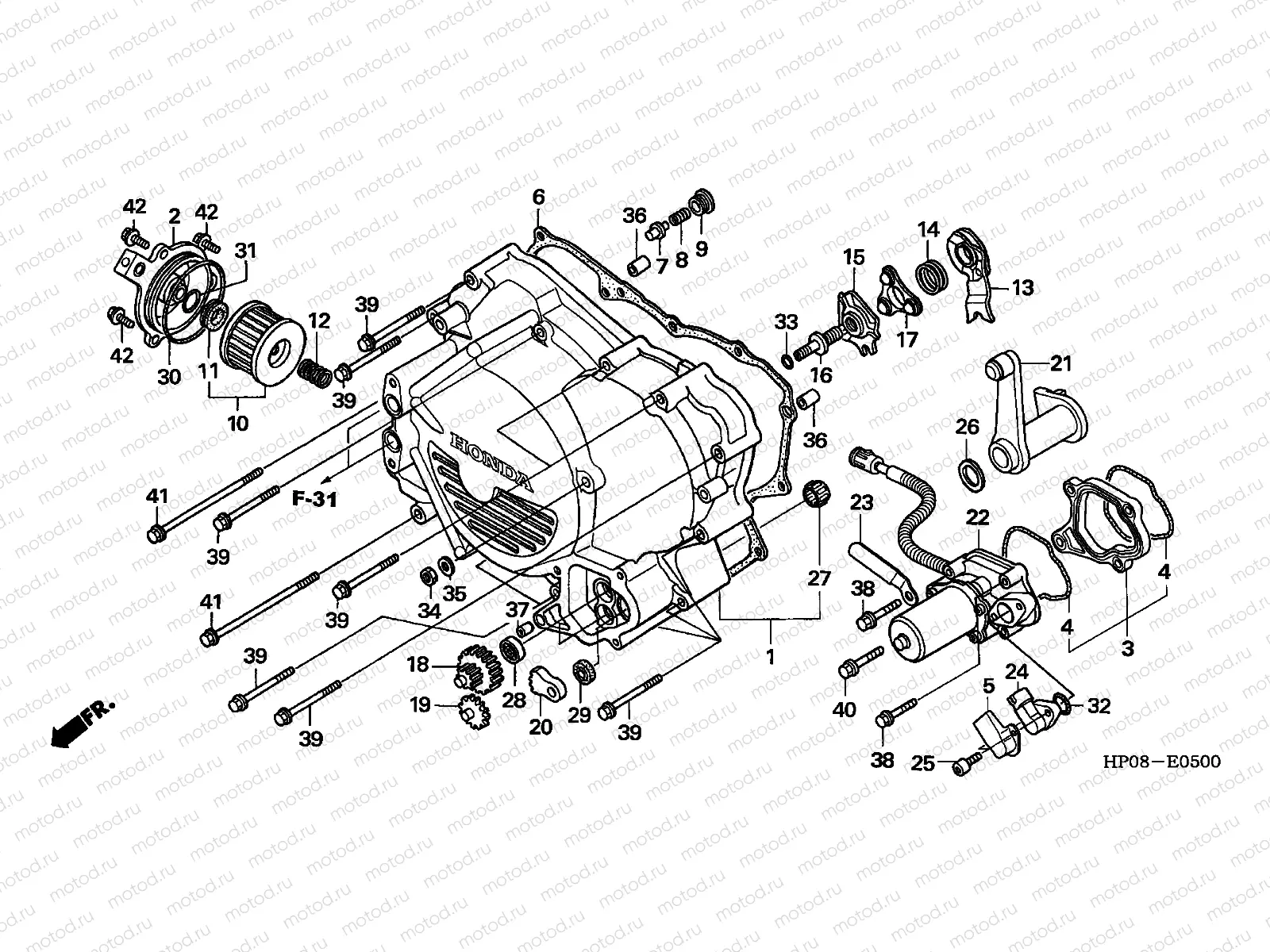

E-5 FRONT CRANKCASE COVER (TRX500FE)

E-5 FRONT CRANKCASE COVER (TRX500FE)
Например: 11330-HP0-A10
1
11330-HP0-A10
COVER COMPFR CRA
2
11333-HP0-A00
COVER COMPOIL FI
3
11334-HP0-A10
SPACER COMPBRACK
4
11336-HN0-A10
O-Ring
5
11339-HP0-A10
ROTECTORSENSOR
6
11394-HP0-A00
Gasket - clutch cover
7
15231-HP0-A00
VALVE, RELIEF
8
15232-HM3-670
SPRING, RELIEF VALVE
9
15235-HP0-A00
CAP, RELIEF VALVE
10
15412-HM5-A10
Filtre à huile
1 072 ₽/шт
11
15413-MC8-000
RUBBER, FILTER
272 ₽/шт
12
15414-KF0-000
SPRING, OIL FILTER ELEMEN
244 ₽/шт
13
22820-HP0-A00
LATE COMPCLUTCH
14
22825-HN0-671
SPRING, CAM PLATE SIDE
15
22830-HP0-A00
LATE COMPCLUTCH
16
22841-HP0-A00
BOLTCLUTCH ADJUS
17
22860-HB3-000
RETAINER COMP., BALL
640 ₽/шт
18
24616-HN0-771
GEAR, REDUCTION (40T/12T)
19
24615-HN0-771
GEAR, REDUCTION (41T/10T)
20
24617-HN0-771
GEAR, REDUCTION (7/43T)
21
24670-HP0-A10
RM COMPSUB GEAR
22
31300-HP0-A11
MOTOR ASSY., CONTROL
23
32901-MA1-000
CLIP, SUB CORD
550 ₽/шт
24
38800-HP0-A11
SENSOR ASSY., ANGLE
25
90116-KCY-671
Vis
353 ₽/шт
26
90413-GE0-000
WASHER, 10X21.5 (10x21,5)
27
91021-HN0-671
eedle bearing
28
91060-HN0-A11
Roulement
29
91202-HC0-003
Joint
385 ₽/шт
30
91302-KF0-003
O-Ring (filter cover)
346 ₽/шт
31
91303-HA0-004
O-Ring
204 ₽/шт
32
91308-HN0-A10
O-RING, ANGLE SENSOR
33
91308-MC7-000
O-Ring
222 ₽/шт
34
94030-08000
Nut
47 ₽/шт
35
94102-08800
Rondelle (8x16x1,2)
41 ₽/шт
36
94301-08140
Dowel pin (8x14)
94 ₽/шт
37
94301-08200
Dowel pin (8x20)
94 ₽/шт
38
95701-060-4500
Bolt
79 ₽/шт
39
95701-060-5500
Bolt
79 ₽/шт
40
95701-060-5508
БОЛТ
86 ₽/шт
41
95701-060-9000
Bolt, flange, 6x90
94 ₽/шт
42
96001-060-1800
Bolt
63 ₽/шт
