Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA TRX 500 Fourtrax Foreman HONDA TRX500FE7 TRX500FE7 U / CMF 2007 HONDA (VIN: 1HFTE31U) F-24 SWINGARM

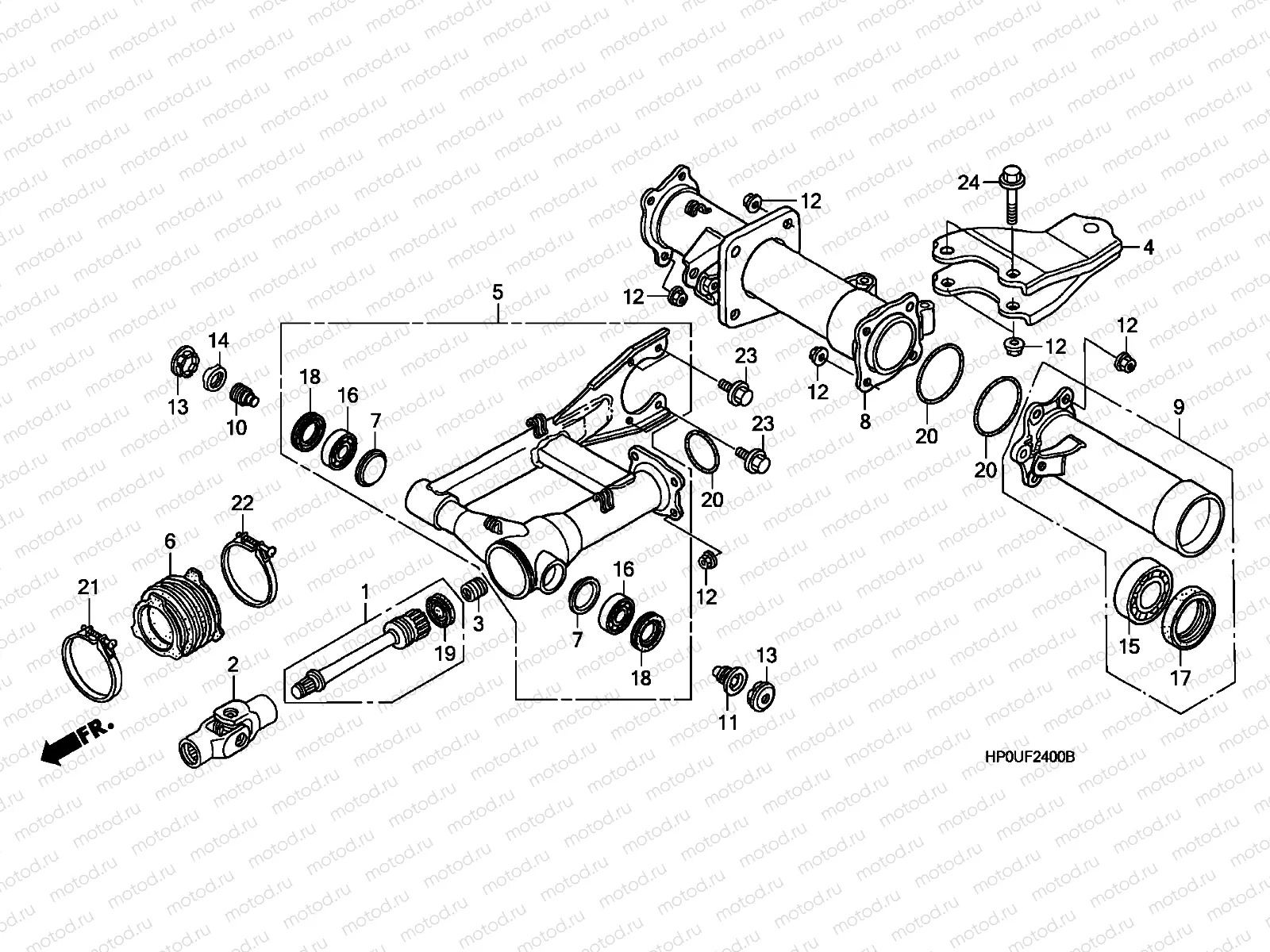

F-24 SWINGARM

F-24 SWINGARM
Например: 40200-HP0-A00
1
40200-HP0-A00
SHAFT ASSYPROP
2
40210-HN7-010
JOINT COMP., YOKE
3
40215-HN0-671
SPRING, PROPELLER SHAFT
4
50810-HP0-A00
ITCH COMPTRAILE
5
52100-HP0-A50
SWINGARM ASSYRR
6
52101-HM7-000
BOOT, JOINT
7
52112-MA1-300
HOLDER, RR. FORK GREASE
425 ₽/шт
8
52210-HP0-A00
IPE COMP RHOUSI
9
52300-HN2-000
PIPE ASSYL HOUSI
10
90121-HM5-930
BOLT A, PIVOT
11
90122-HM5-930
BOLT B, PIVOT
12
90305-HC0-770
Nut (Lock, 10mm)
311 ₽/шт
13
90312-HM5-670
CAP, LOCK NUT
14
90355-469-000
NUT, SWINGARM PIVOT LOCK
1 022 ₽/шт
15
91055-HN5-681
BEARING, RADIAL BALL, 32X
16
91066-HC4-004
BEARING, ANGULAR, 7203
17
91255-HA0-681
Joint
1 548 ₽/шт
18
91268-HN0-A01
DUST SEAL, 26X40X5 (NOK)
19
91302-HM7-003
SEAL A, RUBBER
20
91320-HM7-702
O-Ring
348 ₽/шт
21
95018-74250
BAND, AIR CLEANER CONNECT
22
95018-90250
BAND, AIR CLEANER CONNECT
23
95701-100-2000
Bolt
79 ₽/шт
24
95701-100-6000
Bolt, flange, 10x60
110 ₽/шт
