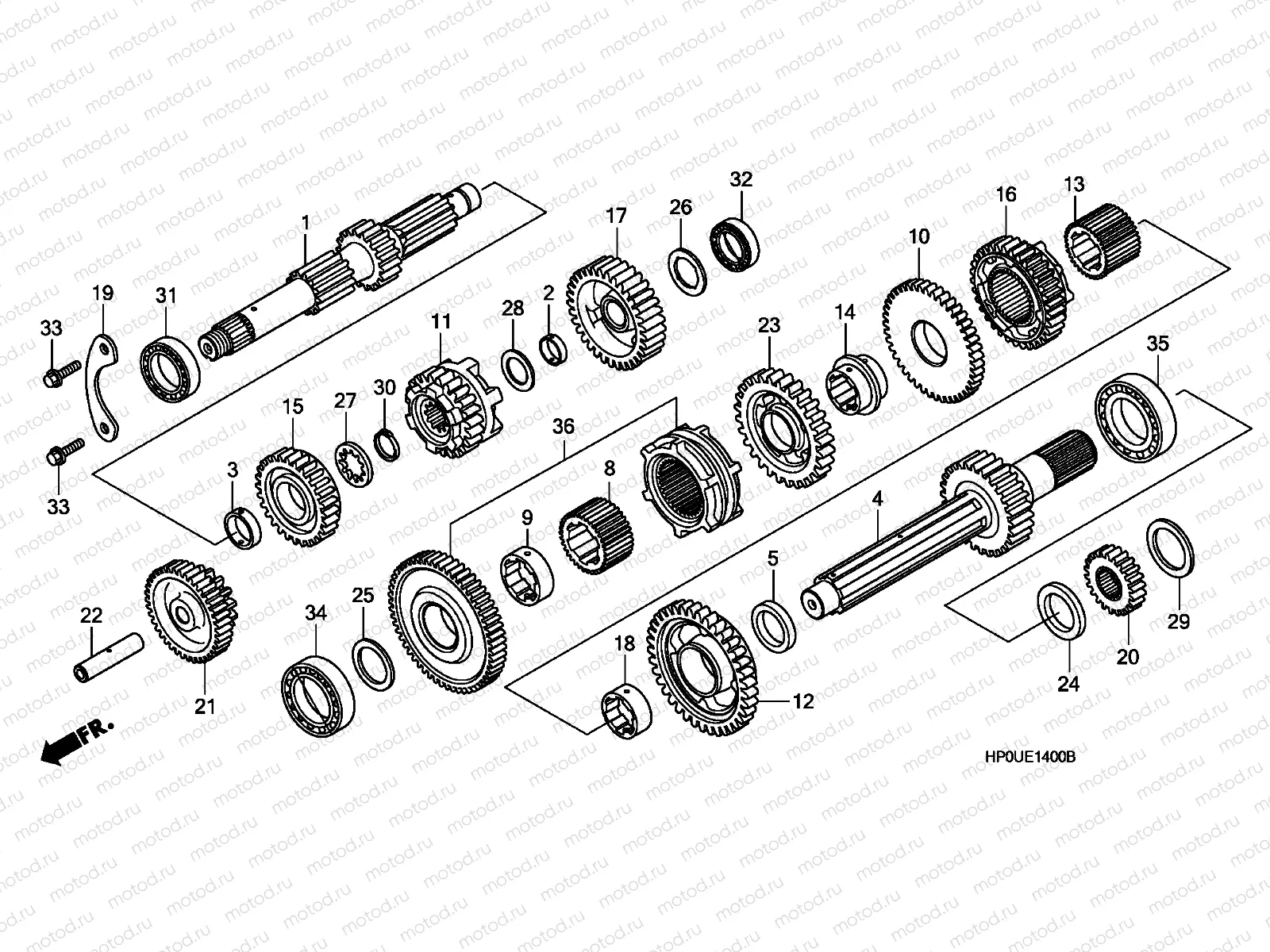

E-14 TRANSMISSION

E-14 TRANSMISSION
Например: 23211-HP0-A00
1
23211-HP0-A00
MAINSHAFT, TRANSMISSION (
2
23212-HP0-A00
BUSH, 17MM
3
23214-HA0-000
BUSH A, 22MM
1 363 ₽/шт
4
23221-HP0-A00
SHAFTCOUNTER TRA
5
23224-HP0-A00
COLLARCOUNTER SH
8
23413-HA7-670
COLLARSPLINE
2 051 ₽/шт
9
23414-HA0-000
BUSH, SPLINE, 25MM
1 546 ₽/шт
10
23431-HP0-A00
GEAR, COUNTERSHAFT SECOND
11
23441-HP0-A00
GEAR, MAINSHAFT THIRD (23
12
23451-HP0-A00
GEAR, COUNTERSHAFT THIRD
13
23453-HN0-A10
COLLARSPLINE C-4
14
23454-HA0-000
BUSHSPL 25MMA
2 769 ₽/шт
15
23461-HP0-A00
GEAR, MAINSHAFT FOURTH (2
16
23471-HP0-A00
GEAR, COUNTERSHAFT FOURTH
17
23481-HP0-A00
GEAR, MAINSHAFT FIFTH (33
18
23512-MB0-000
COLLAR, SPLINE, 25X12.5
1 750 ₽/шт
19
23521-HP0-A00
LATEBRG SET
20
23621-HP0-A00
GEARFINAL DRIVE
21
23721-HP0-A00
GEARRVS IDLE
22
23731-HB3-000
SHAFT, REVERSE IDLE
23
23751-HP0-A00
GEAR, COUNTERSHAFT REVERS
24
75146-750-000
COLLAR, DISTANCE, 25MM
25
90401-HP0-A00
WASHER, THRUST, 20MM
26
90403-HN8-000
WASHER, SPECIAL, 17MM
27
90451-KY1-000
WASHER, SPLINE, 22MM
305 ₽/шт
28
90452-GB4-770
Rondelle (17mm)
291 ₽/шт
29
90459-357-000
WASHER C, THRUST, 25MM
409 ₽/шт
30
90601-329-000
CIRCLIP, 22MM
307 ₽/шт
31
91002-PL0-008
Bearing, ball, 62/22(ntn)
32
91006-HN2-003
BEARING, RADIAL BALL (620
33
95701-060-1600
БОЛТ С ФЛАНЦЕМ
61 ₽/шт
34
96100-620-4000
ПОДШИПНИК ВЫЖИМНОЙ
708 ₽/шт
35
96100-630-5000
Bearing, radial ball, 6305
1 116 ₽/шт
36
06234-HP0-306
GEAR SET, LOW
