Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA TRX 500 Fourtrax Foreman HONDA TRX500FE7 TRX500FE7 U / CMF 2007 HONDA (VIN: 1HFTE31U) F-17 FINAL DRIVEN GEAR

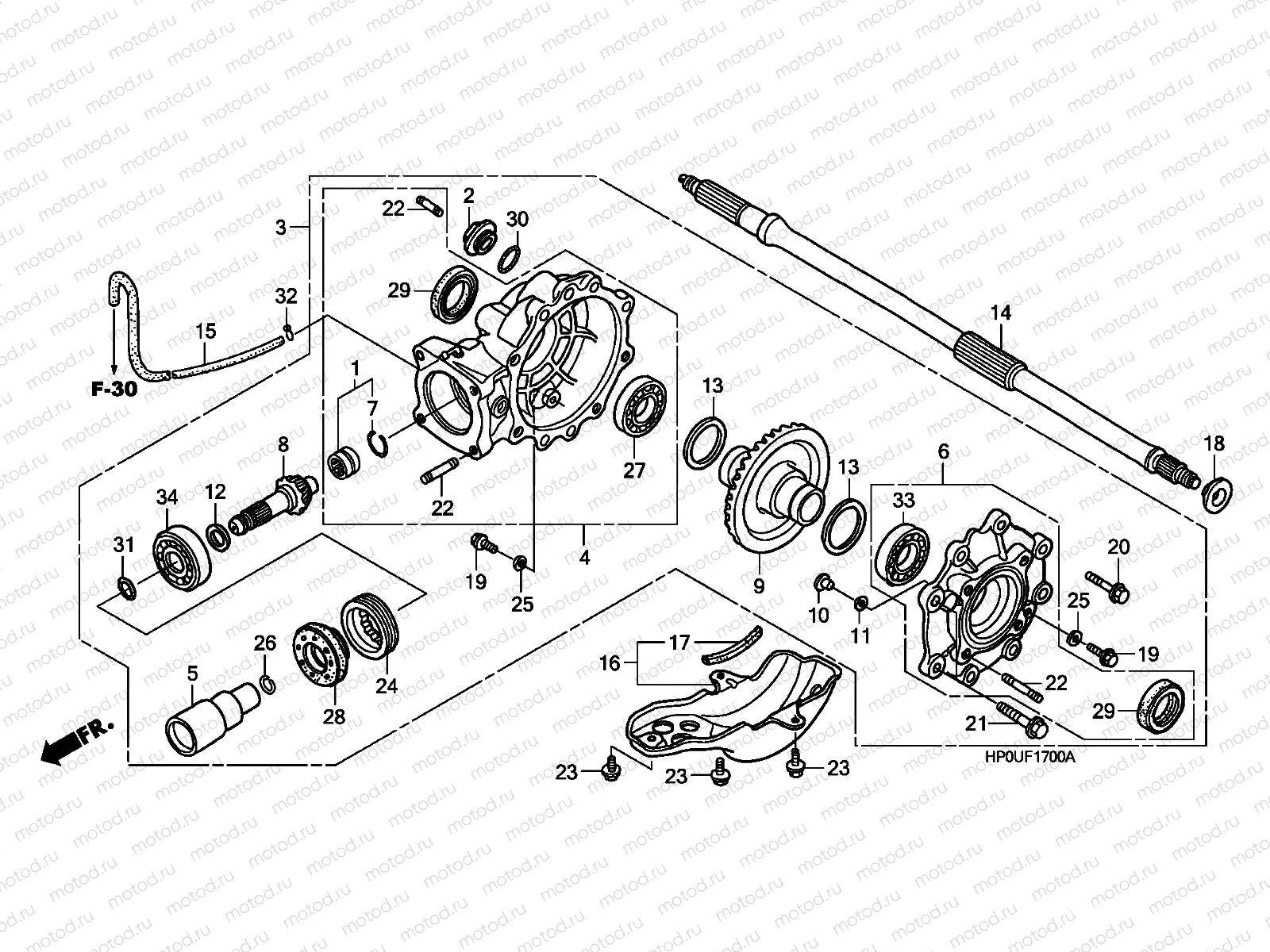

F-17 FINAL DRIVEN GEAR

F-17 FINAL DRIVEN GEAR
Например: 06910-HP0-A00
1
06910-HP0-A00
BEARING SET, NEEDLE
2
12361-035-000
Vis de vidange d'huile
3
41300-HP0-B80
GEAR ASSYRR FINA
4
41311-HP0-A00
CASE SUB ASSYRR
5
41315-HN2-000
JOINT, RR. PINION
6
41320-HN2-010
COVER SUB ASSYRR
7
41405-HA7-670
RING, STOPPER
236 ₽/шт
8
41421-HP0-A00
GEARRR PINION
9
41431-HP0-A00
GEAR, RR. RING (41T)
10
41436-MB0-310
PIN, RING GEAR STOPPER
1 662 ₽/шт
11
41437-MB0-310
SHIM A, STOPPER PIN (0.10
425 ₽/шт
11
41438-MB0-310
SHIM B, STOPPER PIN (0.15
425 ₽/шт
12
41454-HM8-000
SHIM G, PINION GEAR (2.00
12
41456-HM8-000
SHIM I, PINION GEAR (2.12
12
41449-HM8-000
SHIM C, PINION GEAR (1.76
12
41455-HM8-000
SHIM H, PINION GEAR (2.06
12
41457-HM8-000
SHIM J, PINION GEAR (2.18
12
41453-HM8-000
SHIM F, PINION GEAR (1.94
12
41447-HM8-000
SHIM A, PINION GEAR (1.64
12
41452-HM8-000
SHIM E, PINION GEAR (1.88
12
41448-HM8-000
SHIM B, PINION GEAR (1.70
12
41451-HM8-000
SHIM D, PINION GEAR (1.82
13
41543-HA0-000
SPACER D, RING GEAR (2.00
13
41540-HA0-000
SPACER A, RING GEAR (1.82
912 ₽/шт
13
41545-HA0-000
SPACER F, RING GEAR (2.12
13
41548-HA0-000
SPACER I, RING GEAR (2.30
13
41546-HA0-000
SPACER G, RING GEAR (2.18
13
41544-HA0-000
SPACER E, RING GEAR (2.06
13
41542-HA0-000
SPACER C, RING GEAR (1.94
13
41541-HA0-000
SPACER B, RING GEAR (1.88
13
41547-HA0-000
SPACER H, RING GEAR (2.24
14
42311-HN2-020
SHAFT, RR. AXLE
15
43133-HM7-000
TUBE BREATHER 3.5
16
50355-HN5-670
PLATE COMPSKID
17
50356-HM7-300
RUBBERSTOPPER
18
52112-HA0-000
STOPPER, L. BEARING
1 195 ₽/шт
19
90109-371-000
BOLT, SEALING, 8MM
385 ₽/шт
20
90133-MB0-000
Vis
613 ₽/шт
21
90134-HA0-000
Vis
566 ₽/шт
22
90135-HA7-770
Stud bolt (10x22)
23
90190-MG3-000
Vis
204 ₽/шт
24
90242-MB0-000
Nut (64 MM)
2 254 ₽/шт
25
90471-580-000
Gasket (8 mm)
157 ₽/шт
26
90602-MR1-000
CLIP, 25MM
213 ₽/шт
27
91062-HP0-A01
BEARING, RADIAL BALL, 35X
28
91251-HN2-003
OIL SEAL, 39X70X11
29
91252-HA0-004
Joint
760 ₽/шт
30
91302-001-020
O-Ring
381 ₽/шт
31
91312-KM9-003
O-Ring
330 ₽/шт
32
95002-35000
CLIP, TUBE (C6.5)
39 ₽/шт
33
96100-600-7300
Bearing (6007)
1 195 ₽/шт
34
96100-620-6000
Roulement
