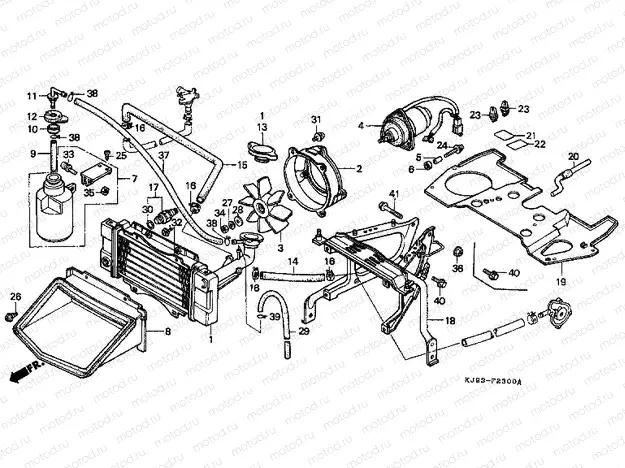

F-23 RADIATOR (CH125E / G)

F-23 RADIATOR (CH125E / G)
Например: 19010-KN7-671
1
19010-KN7-671
Radiateur - refroidisseur d’eau
2
19015-KJ9-003
SHROUD COMP.
3
19020-KJ9-003
FANCOOLING
4
19030-KJ9-004
MOTORASSY FAN
5
19040-611-003
BUSH
6
19041-611-003
RUBBER, BUSHING
215 ₽/шт
7
19101-KN7-670
TANKRESERVE
9
19103-PH7-010
Gumicső, kiegyenlítőtartály
10
19104-GE2-000
CAP, RESERVE TANK
467 ₽/шт
11
19106-GE2-000
ADAPTER, RESERVE CAP
613 ₽/шт
12
19107-GE2-000
STOPPER, RADIATOR FLUID
432 ₽/шт
13
19111-KE1-013
CAP, RADIATOR FILLER
3 506 ₽/шт
14
19121-KJ9-000
HOSE R.FRONT
15
19122-KN7-670
HOSEL FRONT
16
19509-GE2-003
Collier (D19)
519 ₽/шт
17
37760-KS4-880
WITCH ASSY., THERMOSTAT
9 176 ₽/шт
18
50310-KN7-670
STAYGRILL SPT.
19
64295-KN7-770
BUFFLEFR.PLATE
20
64318-KJ9-000
No longer available
22
87515-KN7-770
MARKHEADLIGHT CA
23
90010-KN7-670
RODHOLDER
24
90041-679-003
Vis
25
93913-14280
Vis
44 ₽/шт
27
90401-679-003
WASHERSPRING5MM
28
94103-05800
Rondelle (5 mm)
41 ₽/шт
29
90913-KN7-670
TUBE COMP.RADIAT
30
91214-ZM3-003
OIL SEAL, 15X25X6
31
93891-050-1008
Screw-washer
47 ₽/шт
32
93891-060-1200
Screw-washer
55 ₽/шт
33
93891-060-2008
Screw-washer
55 ₽/шт
34
94001-050-800S
Гайка
39 ₽/шт
35
94001-062-000S
Гайка
47 ₽/шт
36
94050-06000
Nut
55 ₽/шт
37
95001-750-0160M
Bulk tube,f 75x1m
1 242 ₽/шт
38
95002-02120
Collier
55 ₽/шт
39
95002-407-3008
Clamp, tube (d7.3)
79 ₽/шт
40
95701-060-1208
ДЕТАЛЬ
58 ₽/шт
41
95701-060-5508
БОЛТ
86 ₽/шт
