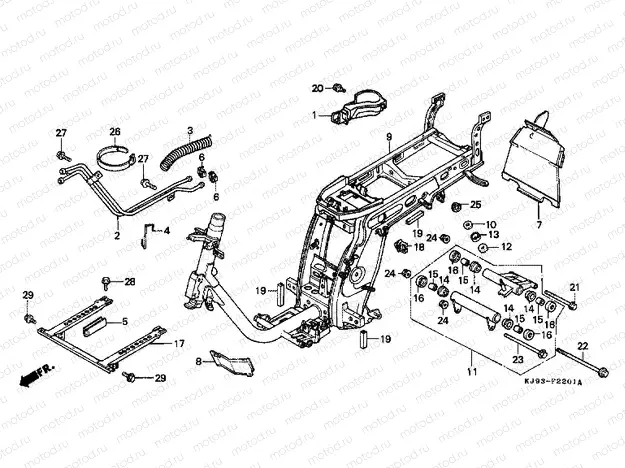

F-22-1 FRAME HOUSING (CH125G)

F-22-1 FRAME HOUSING (CH125G)
Например: 16960-KN7-670
1
16960-KN7-670
COVERFUEL COCK
2
19120-KJ9-020
Durite radiateur
3
19504-KJ9-010
WIREWATER HOSE G
4
19505-KJ9-000
HANGERWATER HOSE
5
19506-KJ9-000
PROTECTORHOSE
6
19509-GE2-003
Collier (D19)
519 ₽/шт
7
33711-KJ9-000
PROTECTORBULB
8
46520-KN7-670
GUARDSPLASH
9
50100-KJ9-691
VÁZSZERKEZET
108 909 ₽/шт
10
50348-KN7-670
WASHERENGINE HAN
11
50350-KJ9-752
HANGER ASSY.ENG.
12
50352-GE0-000
RUBBER A, ENGINE HANGER
771 ₽/шт
13
50352-KJ9-000
RUBBER A, ENGINE HANGER
550 ₽/шт
14
50357-KM1-310
BEARING B, ENGINE HANGER
640 ₽/шт
15
50358-KM1-000
COLLAR BTHRUST
16
50359-KM1-000
WASHER BTHRUST
17
50611-KN7-670
REINFORCEMENTFLO
18
53105-KJ9-003
CLIPWIRE HARNESS
245 ₽/шт
19
64209-KJ9-000
MOLUDINGWIND
20
90003-GE0-000
BOLT, RR. FENDER
21
90105-KJ9-000
Vis
771 ₽/шт
22
90105-KN7-670
BOLTM10X235.5
23
90106-KJ9-000
Vis
519 ₽/шт
24
90304-GBL-003
Nut (10 mm)
307 ₽/шт
25
90309-428-731
Nut
409 ₽/шт
26
32161-404-000
BAND B1, WIRE
283 ₽/шт
27
95701-060-1000
БОЛТ С ФЛАНЦЕМ
55 ₽/шт
28
95701-060-1200
Bolt
58 ₽/шт
29
95701-080-1200
Bolt, flange, 8x12
66 ₽/шт
