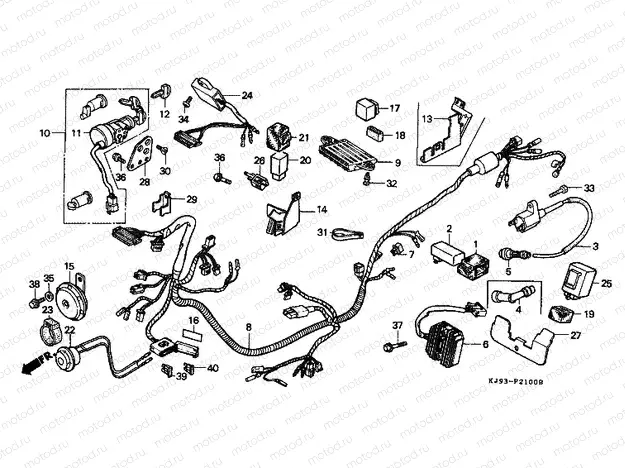

F-21 WIRING HARNESS (CH125E / G)

F-21 WIRING HARNESS (CH125E / G)
Например: 30401-KB4-000
1
30401-KB4-000
CUSHION, C.D.I. UNIT
550 ₽/шт
2
30410-KN7-670
CDI unit
3
30510-GR2-405
Bobine d'allumage
7 052 ₽/шт
5
30700-KN7-671
Spark plug cap
6
31600-KS4-841
Régulateur de tension
19 001 ₽/шт
8
32100-KJ9-630
Harness wire
9
32150-GE8-601
MULTI-COUPLER, 15X5 (MALE
1 363 ₽/шт
10
35010-KJ9-751
EY SET
11
35100-KJ9-753
SWITCH ASSY.COMB
12
35122-MR1-770
Clé Vierge
991 ₽/шт
14
35550-KN7-770
PLATEELECTRIC
15
38110-GFL-013
HORN COMP (HIGH)
16
38215-KJ9-300
CÍMKE, BIZTOSÍTÉK
17
38301-GN3-672
Relais clignotant (mitsuba)
4 089 ₽/шт
18
38306-GE7-000
SUSPENSION, WINKER RELAY
495 ₽/шт
20
38360-762-003
RELAY ASSY(20A)C
21
38356-KJ9-003
No longer available
22
38401-KM1-670
AUDIBLE PILOT COM
23
38402-GC1-000
SUSPENSION, AUDIBLE PILOT
456 ₽/шт
26
39500-KJ9-003
TIMERUNIT
27
50148-KN7-670
STAYC.D.I.& RELA
28
53128-KJ9-000
STAYHANDLE LOCK
29
53129-KN7-770
o longer available
30
90164-028-000
SCREW, U-LOCK FLAT, 6X12
204 ₽/шт
31
90668-GA7-003
STRAP CCABLE
32
90674-SK3-E00
Rivet - panel fixing
33
92101-050-200A
Bolt, hex., 5x20
41 ₽/шт
36
95701-060-1200
Bolt
58 ₽/шт
37
95701-060-1600
БОЛТ С ФЛАНЦЕМ
61 ₽/шт
38
95701-080-1200
Bolt, flange, 8x12
66 ₽/шт
40
98200-31500
Fusible (15A)
55 ₽/шт
