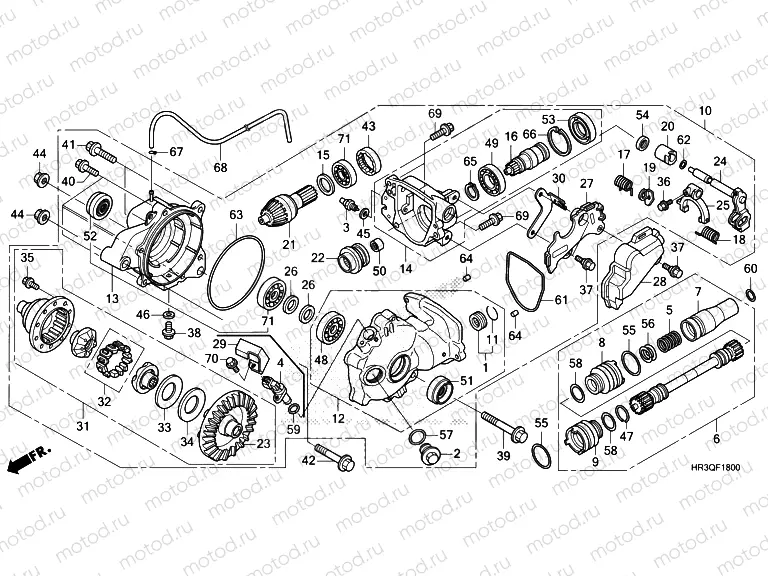

F-18 FRONT FINAL GEAR

F-18 FRONT FINAL GEAR
Например: 06910-HL5-E60
1
06910-HL5-E60
BEARING SET, NEEDLE
2
12361-035-000
Vis de vidange d'huile
3
35600-HN7-003
Swich Neutral light
5
40215-HM7-000
SPRING, SHAFT
6
40400-HR3-A20
SHAFT ASSY., FR. PROPELLE
7
40402-HR3-A20
JOINT, FR. PROPELLER SHAF
8
40420-HM7-A00
BOOT B, PROPELLER
9
40420-HP5-600
BOOT, PROPELLER SHAFT COV
10
41400-HR3-HC0
GEAR ASSY., FR. FINAL
11
41405-HA7-670
RING, STOPPER
236 ₽/шт
12
41411-HR3-HC0
ASE SUB ASSY., FR. GEAR
13
41412-HR3-A20
COVER SUB ASSY., FR. GEAR
14
CASE SUB ASSY., FR. CLUTCH
15
41463-HN0-670
SHIM O, PINION GEAR (2.48
15
41452-HM8-000
SHIM E, PINION GEAR (1.88
15
41448-HM8-000
SHIM B, PINION GEAR (1.70
15
41447-HM8-000
SHIM A, PINION GEAR (1.64
15
41453-HM8-000
SHIM F, PINION GEAR (1.94
15
41449-HM8-000
SHIM C, PINION GEAR (1.76
15
41459-HN0-670
SHIM L, PINION GEAR (2.30
15
41457-HM8-000
SHIM J, PINION GEAR (2.18
15
41455-HM8-000
SHIM H, PINION GEAR (2.06
15
41462-HN0-670
SHIM N, PINION GEAR (2.42
15
41456-HM8-000
SHIM I, PINION GEAR (2.12
15
41458-HN0-670
SHIM K, PINION GEAR (2.24
15
41461-HN0-670
SHIM M, PINION GEAR (2.36
15
41451-HM8-000
SHIM D, PINION GEAR (1.82
15
41454-HM8-000
SHIM G, PINION GEAR (2.00
16
41502-HL1-A01
JOINT, FR. FINAL CLUTCH
17
41503-HP5-600
SPRING, FR. FINAL CLUTCH
18
41504-HP5-600
SPRING, FR. FINAL CLUTCH
19
41505-HP5-600
STOPPER, FR. FINAL CLUTCH
20
41506-HP5-600
COLLAR, FR. FINAL CLUTCH
21
41521-HR0-F00
GEAR, FR. PINION (13T)
22
41527-HR0-F00
SLEEVE, FR. FINAL CLUTCH
23
41531-HR3-A20
GEAR, FR. RING (42T)
24
41540-HP5-600
SHAFT COMP., FR. FINAL CL
25
41550-HP5-600
FORK COMP., FR. FINAL CLU
26
SHIM R, RING GEAR (1.35)
26
SHIM S, RING GEAR (1.40)
26
SHIM Q, RING GEAR (1.30)
26
SHIM K, RING GEAR (1.00)
26
SHIM C, RING GEAR (0.60)
26
SHIM F, RING GEAR (0.75)
26
SHIM H, RING GEAR (0.85)
26
SHIM O, RING GEAR (1.20)
26
SHIM I, RING GEAR (0.90)
26
SHIM J, RING GEAR (0.95)
26
SHIM B, RING GEAR (0.55)
26
SHIM G, RING GEAR (0.80)
26
SHIM U, RING GEAR (1.50)
26
SHIM D, RING GEAR (0.65)
26
SHIM M, RING GEAR (1.10)
26
SHIM V, RING GEAR (1.55)
26
SHIM P, RING GEAR (1.25)
26
SHIM L, RING GEAR (1.05)
26
SHIM A, RING GEAR (0.50)
26
SHIM W, RING GEAR (1.60)
26
SHIM E, RING GEAR (0.70)
26
SHIM N, RING GEAR (1.15)
26
SHIM T, RING GEAR (1.45)
27
41711-HP5-600
CASE, CLUTCH ARM
28
41712-HP5-600
COVER, CLUTCH ARM
30
41715-HP5-600
STAY, CLUTCH CABLE
31
42400-HR3-A21
DIFFERENTIAL ASSY.
32
42440-HN5-671
FOLLOWER SET, CAM
33
42456-HN7-003
SHIM F (1.8)
33
42451-HN7-003
SHIM A (1.3)
33
42453-HN7-003
SHIM C (1.5)
33
42454-HN7-003
SHIM D (1.6)
33
42455-HN7-003
SHIM E (1.7)
33
42452-HN7-003
SHIM B (1.4)
33
42457-HN7-003
SHIM G (1.9)
34
42461-HN5-671
SPRING, DIFFERENTIAL SIDE
35
90101-HN8-000
BOLT, 8X17
36
90101-HP5-600
BOLT, SPECIAL, 6MM
37
90106-MM9-000
Vis
244 ₽/шт
38
90109-371-000
BOLT, SEALING, 8MM
385 ₽/шт
39
90102-HR6-B00
Vis
40
90133-HP5-600
Vis
41
90134-HP5-600
Vis
42
90182-MB2-003
Vis
550 ₽/шт
43
90244-HA0-000
Nut (60 mm)
2 455 ₽/шт
44
90305-HC0-770
Nut (Lock, 10mm)
311 ₽/шт
45
90443-KR0-000
WASHER, NEUTRAL SWITCH
157 ₽/шт
46
90471-580-000
Gasket (8 mm)
157 ₽/шт
47
91012-KF0-000
CLIP, NEEDLE THRUST BEARI
259 ₽/шт
48
BEARING, RADIAL BALL (30X56X13) (ZHEJIANG)
49
91059-HL4-A01
BEARING, RADIAL BALL, 60/
50
91056-HP5-601
Needle bearing (12x18x12)
607 ₽/шт
51
91252-HC5-003
Joint
52
91252-HC5-003
Joint
53
91254-HR3-A21
OIL SEAL, 42X58X12
54
91254-KS7-831
DUST SEAL, 22X28X5
723 ₽/шт
55
91302-HM7-A00
BAND, BOOT (D27)
675 ₽/шт
56
91302-HN5-671
SEAL, PROPELLER
57
91302-001-020
O-Ring
381 ₽/шт
58
91303-HM7-A00
BAND, BOOT (D20)
60
91311-MB0-003
O-Ring
259 ₽/шт
61
91351-HP5-601
GASKET, FR. FINAL CLUTCH
62
91352-GAZ-930
O-Ring
259 ₽/шт
63
91352-HR0-F01
O-RING, 132X2
64
94301-06100
Dowel pin (6x10)
104 ₽/шт
65
94510-32000
CIRCLIP, EXTERNAL, 32MM
86 ₽/шт
66
94520-58000
Seeger (58mm)
197 ₽/шт
67
95002-35000
CLIP, TUBE (C6.5)
39 ₽/шт
68
95005-350-0130M
Bulk hose (3.5x1000)
472 ₽/шт
69
95701-080-2500
Bolt
79 ₽/шт
71
96100-600-6300
Bearing (6006)
975 ₽/шт
