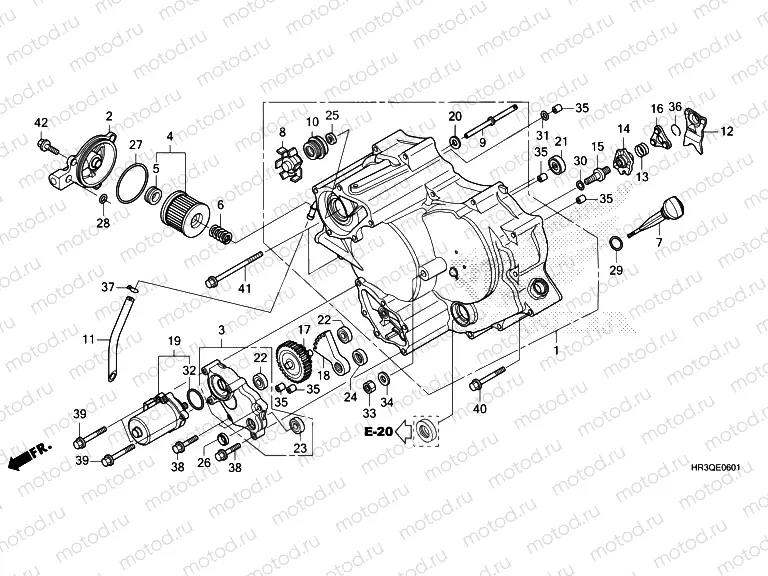

E-6-1 FRONT CRANKCASE COVER

E-6-1 FRONT CRANKCASE COVER
Например: 11300-HR3-WB0
1
11300-HR3-WB0
COVER ASSY., FR. CRANKCAS
2
11333-HR0-F00
COVER COMP., OIL FILTER
4
15412-HM5-A10
Filtre à huile
1 072 ₽/шт
5
15413-MC8-000
RUBBER, FILTER
272 ₽/шт
6
15414-KF0-000
SPRING, OIL FILTER ELEMEN
244 ₽/шт
7
15650-HL5-A00
GAUGE, OIL LEVEL
8
19215-HR6-B00
IMPELLER, WATER PUMP
9
19216-HP5-600
Water pump shaft
10
19217-MAL-300
Garniture mécanique de la pompe à eau
3 902 ₽/шт
11
19507-HP5-600
OSE, DRAIN
12
22821-HP5-600
LATE, CLUTCH CAM
13
22825-HP5-600
SPRING, CAM PLATE SIDE
14
22830-HP5-600
LATE COMP., CLUTCH LIFTE
15
22841-HR0-F00
BOLT, CLUTCH ADJUSTING
16
22860-HP5-600
RETAINER COMP., BALL
20
90599-767-C10
Rondelle (12x23x2)
173 ₽/шт
21
91009-HF1-671
Roulement
25
91201-MV4-003
Joint
503 ₽/шт
27
91302-KF0-003
O-Ring (filter cover)
346 ₽/шт
28
91303-HA0-004
O-Ring
204 ₽/шт
29
91307-KF0-003
O-Ring (18X3 ARAI)
228 ₽/шт
30
91308-MC7-000
O-Ring
222 ₽/шт
31
91301-MJ0-003
O-Ring
236 ₽/шт
33
94030-08000
Nut
47 ₽/шт
34
94102-08800
Rondelle (8x16x1,2)
41 ₽/шт
35
94301-08140
Dowel pin (8x14)
94 ₽/шт
36
94601-15000
CLIP, PISTON PIN, 15MM
50 ₽/шт
37
95002-02130
Collier
55 ₽/шт
40
95701-060-6000
Bolt, flange, 6x60
83 ₽/шт
41
95701-061-1000
Bolt, flange, 6x110
142 ₽/шт
42
96001-060-1800
Bolt
63 ₽/шт
