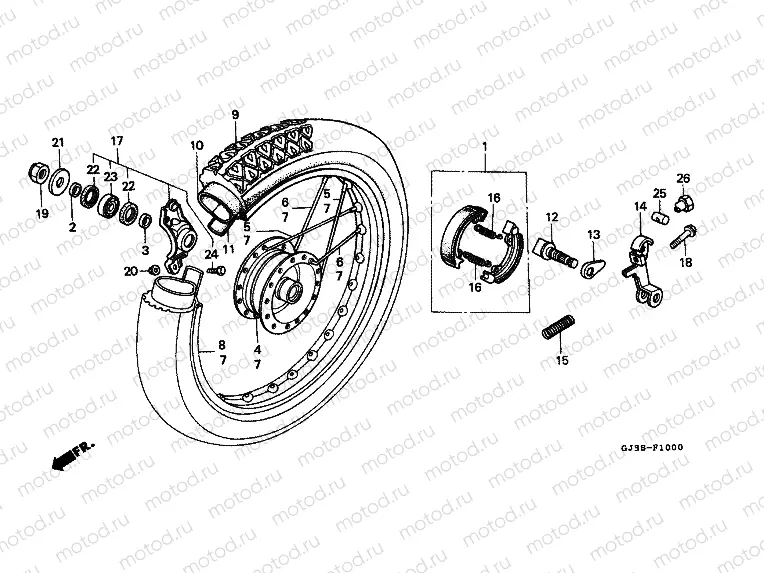

F-10 REAR WHEEL (SH50P / S)

F-10 REAR WHEEL (SH50P / S)
Например: 06430-GJ3-932
1
06430-GJ3-932
Brake shoe
2
42311-GJ2-000
Entretoise (Rear)
3
42312-GJ2-000
Entretoise (Rear)
4
42601-GJ4-760ZA
HUB COMP., RR. WHEEL *NH3
5
42610-GJ4-405
SPOKE SET A, RR. (B10X145
6
42611-GJ4-405
SPOKE SET BRR1B1
7
42650-GJ3-305ZA
WHEEL SUB *NH35M*
8
42701-GJ3-600
RIM RR WHEEL ** NLA**
9
42711-GJ4-762
TIRE(PIRELLI)
10
42712-GJ4-761
TUBETIRE(MICHELI
11
42713-GJ4-762
FLAP
12
43141-GM0-010
CAM RR.BRAKE
1 227 ₽/шт
13
43145-GJ3-600
INDIKATOR RR. BRAKE
14
43410-GA7-020
RMRR.BRAKE
1 631 ₽/шт
15
43472-161-000
SPRING, RR. BRAKE ARM
396 ₽/шт
16
45133-028-000
SPRING, BRAKE SHOE
228 ₽/шт
17
52000-GJ2-000
FORK ASSY. RR. ** NLA**
18
90112-187-010
Vis
244 ₽/шт
19
90305-197-013
Nut (14 mm)
425 ₽/шт
20
90309-428-731
Nut
409 ₽/шт
21
90501-GAH-000
Rondelle (14 mm)
409 ₽/шт
22
90755-KG8-003
SEAL,DUST,22X32X3
23
90912-KG8-004
Roulement
24
92101-080-160A
Bolt, hex., 8x16
55 ₽/шт
25
95015-31001
JOINT A, BRAKE ARM
79 ₽/шт
26
95015-41000
NUT A, BRAKE ROD ADJUSTIN
86 ₽/шт
