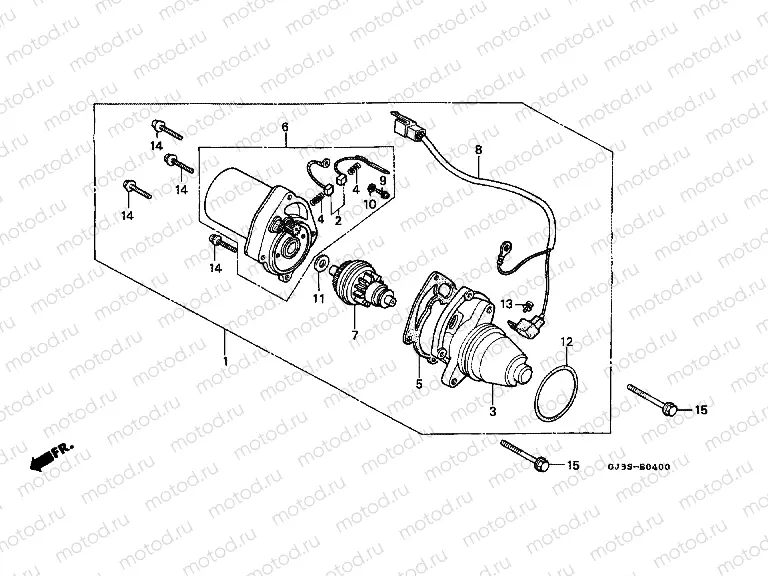

E-4 STARTER ENGINE

E-4 STARTER ENGINE
Например: 31200-GJ3-405
1
31200-GJ3-405
Moteur de démarreur
2
31201-187-701
Brosses de démarreur
1 633 ₽/шт
3
31203-GA7-701
COVER COMP.GEAR
4
31204-187-701
SPRING, BRUSH
370 ₽/шт
5
31206-187-703
GASKET B
6
31208-GE8-000
Moteur
7
31209-GE8-010
PINION ASSY. ** NLA**
8
32101-GJ3-405
SUB HARNESS A
9
90010-187-701
Vis
10
90501-187-701
Rondelle (Spec.)
11
90502-187-701
WASHER, PINION
307 ₽/шт
12
91309-MA6-000
O-Ring
330 ₽/шт
13
93892-040-0608
Screw-washer
47 ₽/шт
14
93892-040-1408
Screw-washer
52 ₽/шт
15
96001-060-4000
БОЛТ
86 ₽/шт
