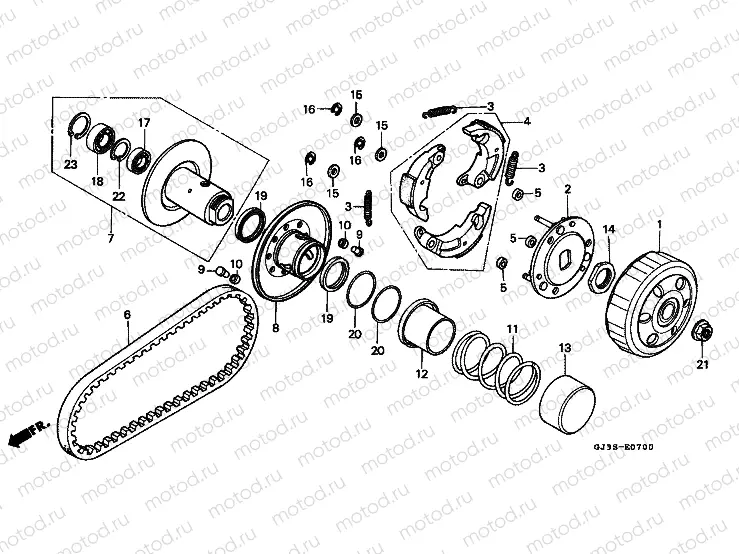

E-7 DRIVED PAGE

E-7 DRIVED PAGE
Например: 22100-GJ3-930
1
22100-GJ3-930
OUTER COMPCLUTCH
2
22350-KBN-930
PLATE COMP., DRIVE
4 378 ₽/шт
3
22401-GJ3-930
SPRING, CLUTCH
487 ₽/шт
4
22535-KBN-306
WEIGHT SET, CLUTCH
7 725 ₽/шт
5
22804-148-000
RUBBER, CLUTCH DAMPER
239 ₽/шт
6
23100-GJ3-932
Courroie
7
23205-GN3-305
FACE SET DRIVE
8
23220-GN3-010
FACE COMP.MOVABL
9
23225-GC8-003
PIN, ROLLER GUIDE
283 ₽/шт
10
23226-GC8-003
ROLLER, GUIDE
220 ₽/шт
11
23233-GJ3-600
Spring
12
23237-GA7-700
COLLARSEAL
1 274 ₽/шт
13
23239-GW3-850
UIDE, SPRING
14
90202-187-000
Nut (spec. 28mm)
550 ₽/шт
15
90442-044-000
Rondelle (6mm)
283 ₽/шт
16
90454-GB2-000
CIRCLIP, 6MM
116 ₽/шт
17
91001-GA7-701
Roulement
925 ₽/шт
18
91002-GA7-701
Roulement
1 074 ₽/шт
19
91211-KN7-671
SEAL, DRIVEN FACE, 34X41X
535 ₽/шт
20
91351-GR1-000
O-RING, 38.5X2
404 ₽/шт
21
94050-10000
Nut
79 ₽/шт
22
94520-24000
CIRCLIP, INTERNAL, 24MM
63 ₽/шт
23
94520-28000
Seeger (28mm)
86 ₽/шт
