Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 DIESEL (A10CH46CA) Polaris 2001 ATV ENGINE MOUNTING - A10CH46CA (4964376437A010) | ENGINE MOUNTING - A10CH46CA (4964376437A010)

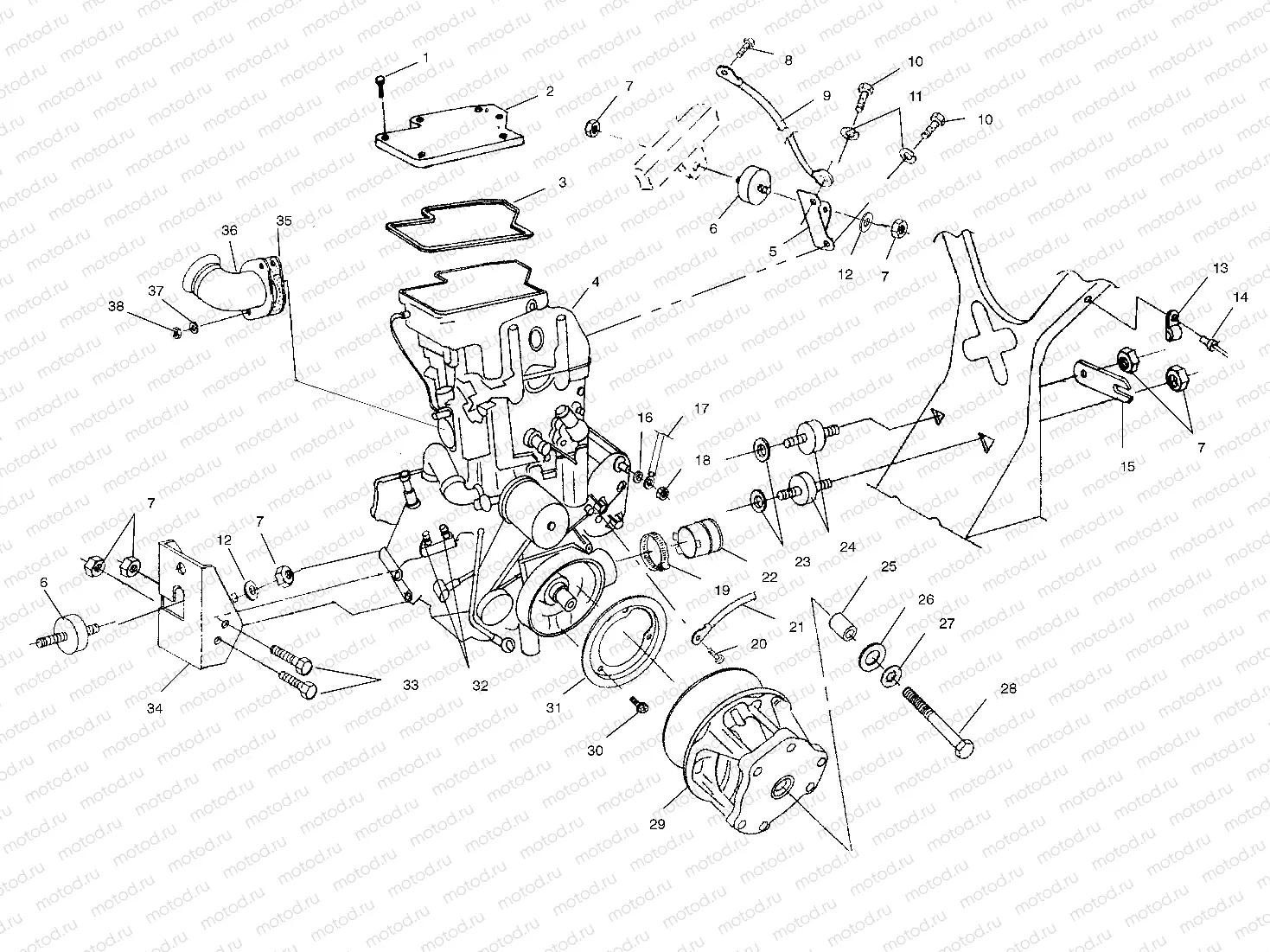

ENGINE MOUNTING - A10CH46CA (4964376437A010) | ENGINE MOUNTING - A10CH46CA (4964376437A010)

ENGINE MOUNTING - A10CH46CA (4964376437A010) | ENGINE MOUNTING - A10CH46CA (4964376437A010)

Например: 9990000

4

9990000

Suspension, Rear

5

5241453

MOUNT-ENGINE TOP PLTD

6

3024012

ISOLATOR-3/8-24M/M 60DURO

7

7547108

Nut

8

7512232

Vis

9

4010132

CABLE GND-ENGINE

10

7512315

Vis

11

7552901

Rondelle (Lock)

12

7555801

Rondelle

13

7080539

CLAMP NYLON CABLE

14

7621462

RIVET

15

5224658-067

STRAP FRAME SUPPORT BLK

16

3085974

Entretoise

17

4010148

CABLE,BATTERY,RED

18

3082910

NUT-FLANGE

19

7080511

CLAMP NARROW BAND

20

7517278

Vis

21

4010201

CABLE-BLK (BATTERY/GND)30.5"

22

5410421

BOOT CLUTCH INTAKE

23

7555815

WASHER FLAT

24

3022072

ISOLATOR-3/8-24M 3/8-16M 60DUR

25

5430261

BUSHING

26

5210748

Rondelle

27

7575202

Rondelle (Lock)

28

7512566

Vis

30

3084205

ASM. SCREW & WASHER

31

LR--

CALIPER, BRAKE, RH

32

7080474

CLAMP HOSE

33

7515417

Vis

34

5241150-067

MOUNT,FR.ENGINE,BLK.

36

1260920-029

MANIFOLD BLK.

37

3080530

Rondelle (Lock)

38

3087199

Nut
