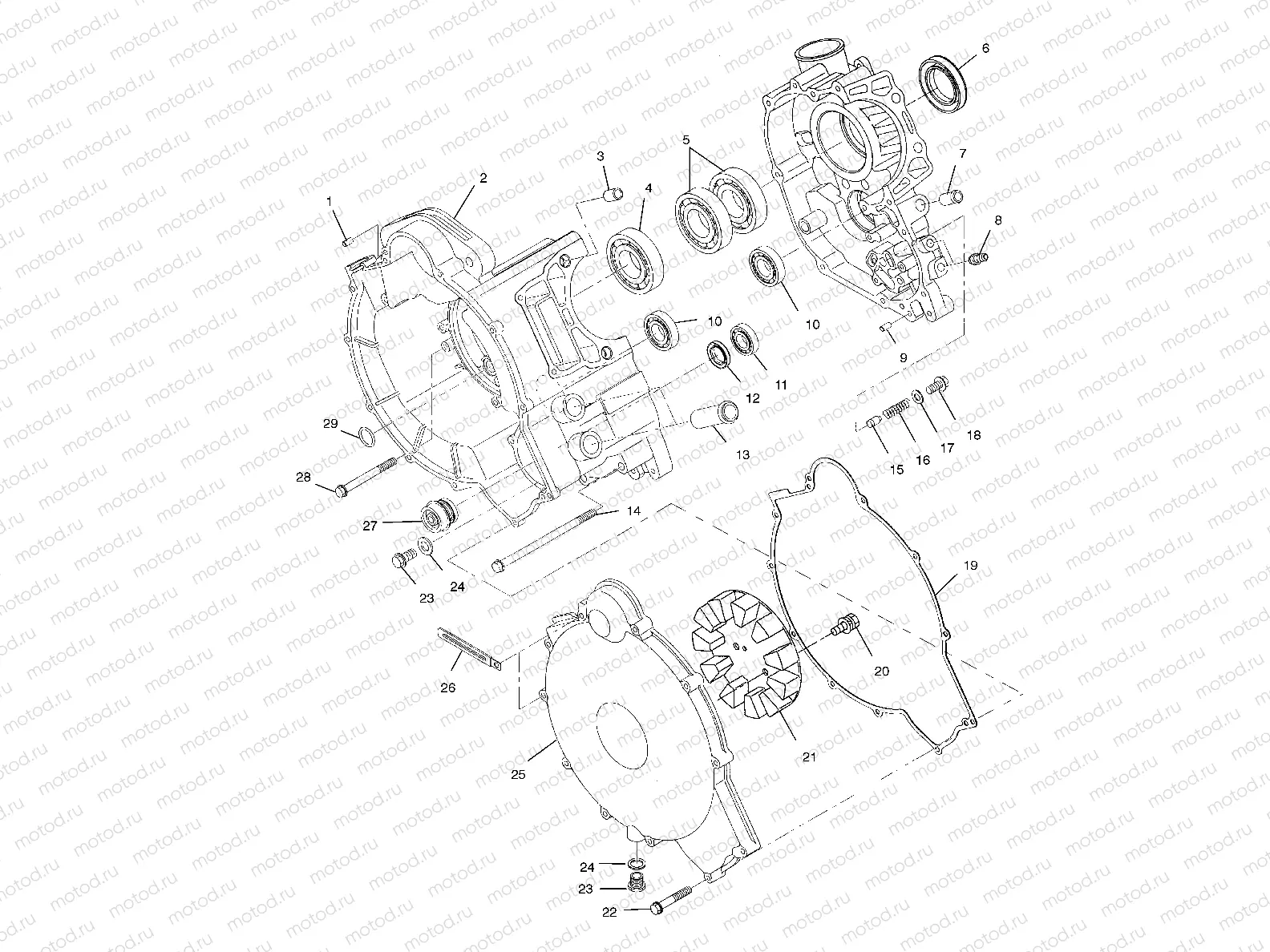

Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 DIESEL (A10CH46CA) Polaris 2001 ATV CRANKCASE - A10CH46CA (4964376437D003) | CRANKCASE - A10CH46CA (4964376437D003)

CRANKCASE - A10CH46CA (4964376437D003) | CRANKCASE - A10CH46CA (4964376437D003)

CRANKCASE - A10CH46CA (4964376437D003) | CRANKCASE - A10CH46CA (4964376437D003)

Например: 3086838

1

3086838

Dowel pin

2

3087078

ASM-CRANKCASE (Incl. 1,4,5,6,7,9-14,27,28)

3

3087266

KNOCK PIPE

4

3087080

BEARING-BALL

5

3085947

BEARING BALL

6

3084839

SEAL OIL

7

3085525

PIPE AIR BREATHER

8

3090305

UNION

9

3090304

Dowel pin

10

3084834

BEARING BALL

11

3084835

BEARING BALL

12

3084836

SEAL OIL

13

3083452

PIPE WATER

14

3085949

BOLT,FLANGE

15

3086810

VALVE-ONEWAY

16

3084844

SPRING ONE WAY VALVE

17

3084846

GASKET (ALUM.)

18

3084845

PLUG

19

3085951

GASKET,COVER

20

3082021

Asm., Bolt and Washer

21

3087076

PLATE-RUBBER

22

3086087

BOLT&WASHER ASM.

23

3083453

PLUG

24

3082956

GASKET

25

3087081

Carter Couverture Générateur

26

3083590

Collier

27

3084837

SEAL MECHANICAL

28

3084841

Vis

29

3084847

O-Ring
