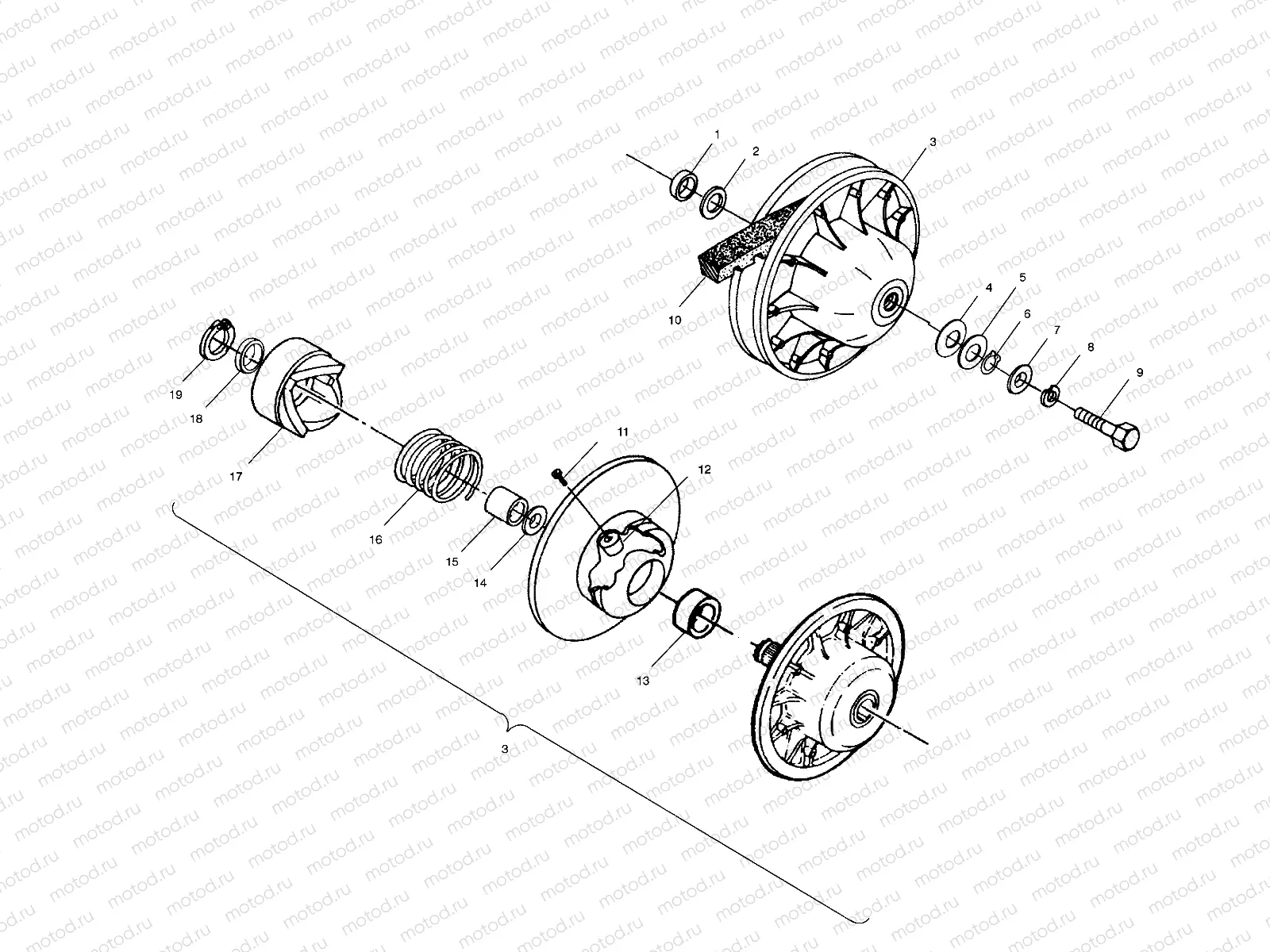

Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 DIESEL (A10CH46CA) Polaris 2001 ATV DRIVEN CLUTCH - A10CH46CA (4964376437C001) | DRIVEN CLUTCH - A10CH46CA (4964376437C001)

DRIVEN CLUTCH - A10CH46CA (4964376437C001) | DRIVEN CLUTCH - A10CH46CA (4964376437C001)

DRIVEN CLUTCH - A10CH46CA (4964376437C001) | DRIVEN CLUTCH - A10CH46CA (4964376437C001)

Например: 5010409

1

5010409

SPACER DRIVEN ATV

2

7556120

WASHER-.906 X 1.38 X .060

3

1322190

CLUTCH DRVN BRKG

4

7556203

WASHER-1.39X2.50X.030 PTFE

5

7556010

BUSHING

6

7710461

RING RETAIN.HD.

7

5220646

WASHER DOMED

8

7552901

Rondelle (Lock)

9

7515327

Vis

10

3211069

BELT DRIVE ENG.BRK.

11

7517323

Vis (spec)

12

1321977

ROLLER-TAPER SP-21

13

3585710

Roulement

14

5211115

Rondelle

15

3576511

BUSHING MOVEABLE 1 INCH

16

7041636

SPRING DRVN 4-STK WHT/GRN

17

5131674

RAMP STA.BRAKE MACH

18

5210752

SPACER .020

19

7710448

RING RETAINING
