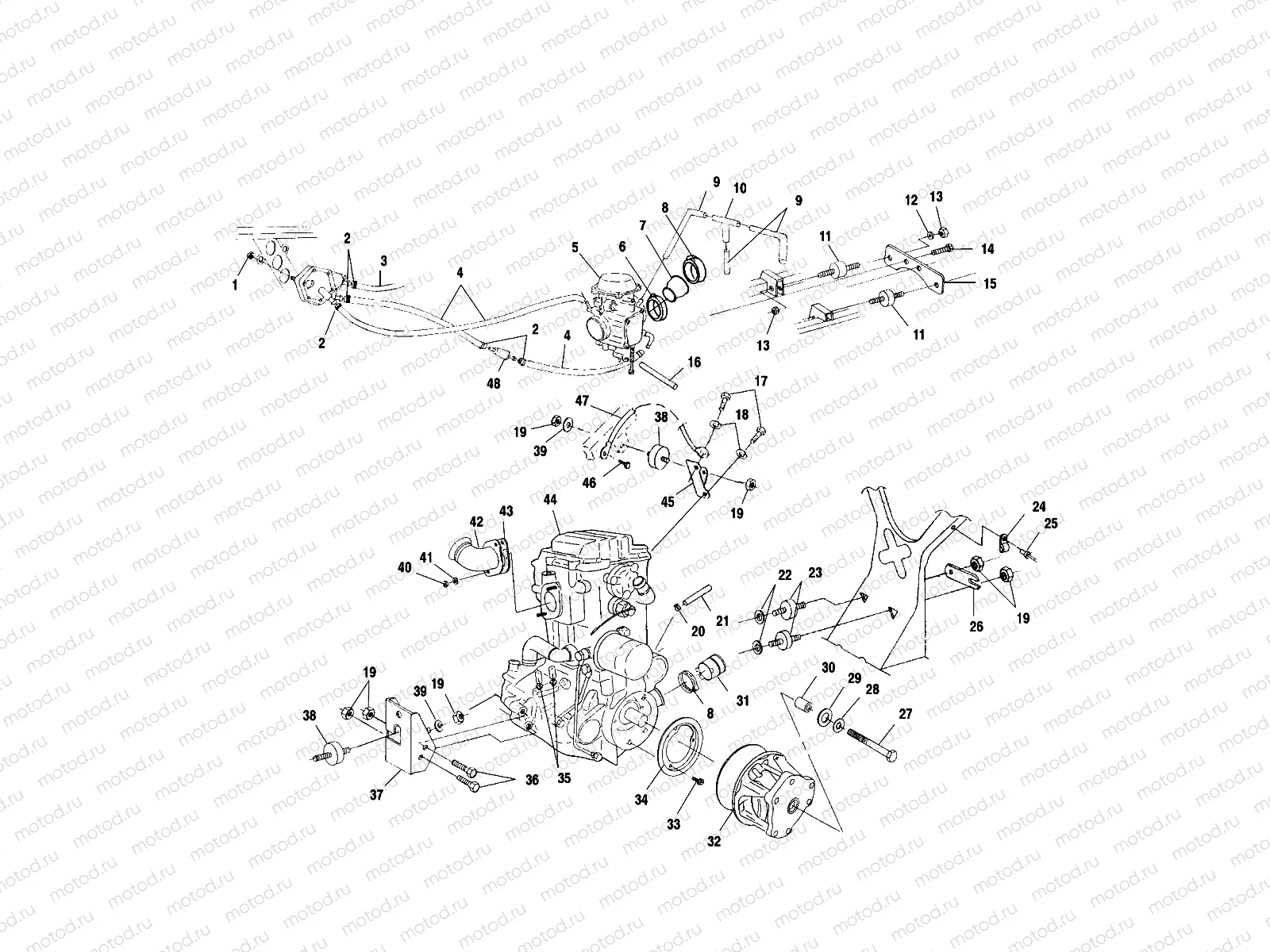

ENGINE MOUNTING - A00CH50AA (4954805480B001) | ENGINE MOUNTING - A00CH50AA (4954805480B001)

ENGINE MOUNTING - A00CH50AA (4954805480B001) | ENGINE MOUNTING - A00CH50AA (4954805480B001)

Например: 7546601

1

7546601

NUT NYLOK

2

7080003

CLAMP HOSE

3

5811490

HOSE,(.25 IDX1.75"LG.)

4

8450040-600

LINE FUEL 1/4 ID(600 CM.)

6

7080413

CLAMP BAND NARROW

7

5410995

BOOT,CARB

8

7080511

CLAMP NARROW BAND

9

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

10

7052075

FITTING TEE

11

3110032

MOUNT RUBBER

12

7552605

Rondelle

13

7547069

NUTSERT HEX

14

LR--

CALIPER, BRAKE, RH

15

5211626-067

STRAP CARB.MT BLK.

16

8360009-600

LINE FUEL 1/8 ID 600 CM.

17

7512315

Vis

18

7552901

Rondelle (Lock)

19

7547108

Nut

20

7080694

CLAMP HOSE SPRING

22

7555815

WASHER FLAT

23

3022072

ISOLATOR-3/8-24M 3/8-16M 60DUR

24

7080539

CLAMP NYLON CABLE

25

7621462

RIVET

26

5224658-067

STRAP FRAME SUPPORT BLK

27

7512566

Vis

28

7575202

Rondelle (Lock)

29

5210748

Rondelle

30

5430261

BUSHING

31

5410421

BOOT CLUTCH INTAKE

35

7080474

CLAMP HOSE

36

7515417

Vis

37

5241150-067

MOUNT,FR.ENGINE,BLK.

38

3024012

ISOLATOR-3/8-24M/M 60DURO

39

7555801

Rondelle

42

1260771-489

WELD-MANIFOLD BLK

44

9990000

Suspension, Rear

45

5241453

MOUNT-ENGINE TOP PLTD

46

7512232

Vis

47

4010132

CABLE GND-ENGINE

48

2530009

Filtre à carburant (IN-LINE)
