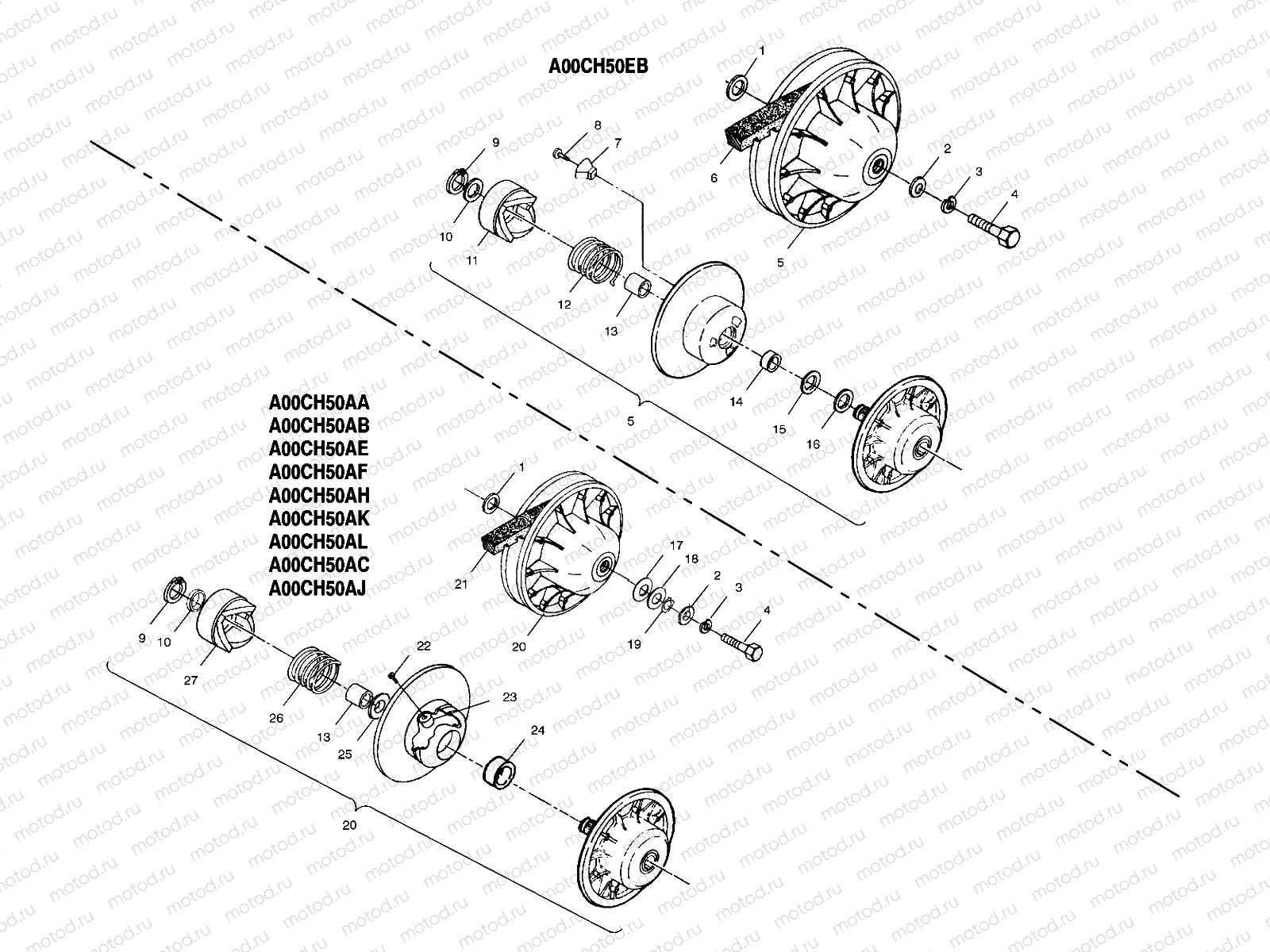

Главная Каталог товаров Polaris EPC 2000 Polaris ATV Polaris 2000 SPORTSMAN 500 (A00CH50AA) Polaris 2000 ATV DRIVEN CLUTCH - A00CH50AA (4954805480C006) | DRIVEN CLUTCH - A00CH50AA (4954805480C006)

DRIVEN CLUTCH - A00CH50AA (4954805480C006) | DRIVEN CLUTCH - A00CH50AA (4954805480C006)

DRIVEN CLUTCH - A00CH50AA (4954805480C006) | DRIVEN CLUTCH - A00CH50AA (4954805480C006)

Например: 7556120

1

7556120

WASHER-.906 X 1.38 X .060

2

5220646

WASHER DOMED

3

7552901

Rondelle (Lock)

4

7515382

Vis

5

1322182

CLUTCH DRVN 3-ANGLE HVY RET

6

3211113

Courroie

7

5450873

BUTTON (3)

8

7511854

Vis

9

7710448

RING RETAINING

10

5210752

SPACER .020

11

5132344

RAMP STA COMP (MACH)

11

5132344

RAMP STA COMP (MACH)

12

7041198

SPRING CLUTCH (RED)

13

3576511

BUSHING MOVEABLE 1 INCH

14

3576504

BUSHING MOVEABLE 1/2 INCH

15

7556804

WSHR-1.505X2.00X.030-Y

16

7556076

WASHER-1.50X2.00X.025-Y

16

7555898

WASHER-1.5X2.0X.020-Y

17

7556203

WASHER-1.39X2.50X.030 PTFE

18

7556010

BUSHING

19

7710461

RING RETAIN.HD.

20

1322190

CLUTCH DRVN BRKG

21

3211069

BELT DRIVE ENG.BRK.

22

7517323

Vis (spec)

23

1321977

ROLLER-TAPER SP-21

24

3585710

Roulement

25

5211115

Rondelle

26

7041636

SPRING DRVN 4-STK WHT/GRN

27

5131674

RAMP STA.BRAKE MACH
