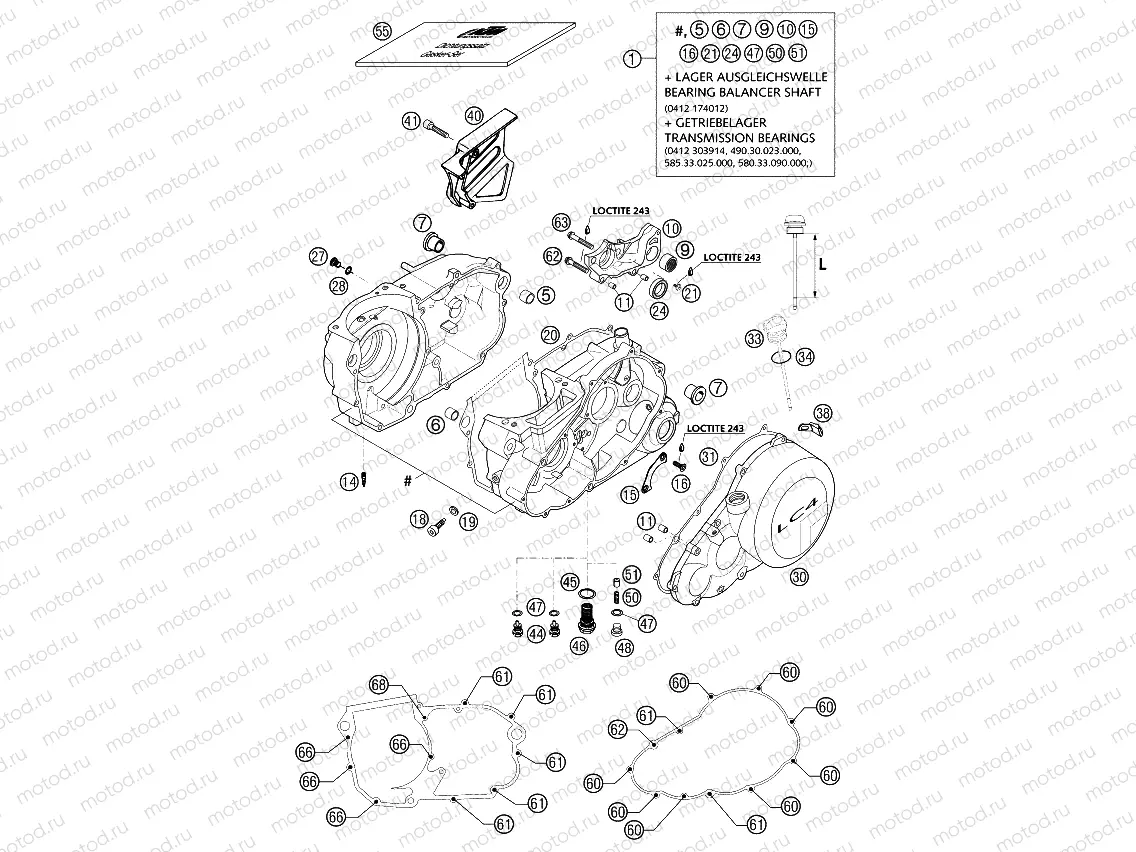

ENGINE CASE

ENGINE CASE
Например: 57330000044
1
57330000044
ENGINE CASE CPL. W. BEARING 02
5
50130027000
DOWEL 19 X15,1X12
6
51030026100
DOWEL 17 X 13 X 12
7
50130010000
CRANK CASE BUSH
9
58033097000
NEEDLE BEARING HK 2216
10
58330011000
SHIFT MECHANISM SUPPORT LC4'94
11
49030090000
Dowel 9,8 x 7 x 10
14
49130450050
TUBE LW 3
15
56530017000
RETAINING PLATE
16
0991060163
FLAT HEAD SCR. DIN7991-M 6X16
18
58030080000
LOCATING SCREW M8 L=23
19
58030081000
Rondelle
20
58530039400
Gasket - crankcase
21
0985050103
OVAL HEAD SCR. DIN7985-M 5X10
24
0625618050
Roulement (61805 C3)
27
49030029000
OIL DRAIN PLUG M10X1,5 AH-WS=6
28
0603100141
Rondelle
30
5833010124430
Clutch cover cpl. black 03
19 386 ₽/шт
31
58530025000
Gasket - clutch cover
33
58330020144
OIL DIPSTICK CPL. L=93MM '96
34
0770191015
O-Ring
38
58333041000
BUMP RUBBER
40
58030050700
CHAIN COVER BLACK '99
41
0912060303
AH SCREW DIN0912-M 6X30
44
58030021100
Vis de vidange d'huile
45
58038017100
Rondelle
46
58038019100
OIL DRAIN PLUG M22X1,5
47
58038022000
Rondelle
48
0908120153
threaded plug DIN 908 M12x1.5
50
58538023000
OIL PRES.SPRING 5 BAR RED 2001
51
58038028000
VALVE PISTON D=10MM
55
57330099000
GASKET SET 660 SMS '02
60
0025060256
Vis
61
0025060306
Vis
62
0025060356
Vis
63
0025060406
Vis
66
0015060556
HH COLLAR SCR. M6X55 WS=8 10.9
68
0015060653
Vis
