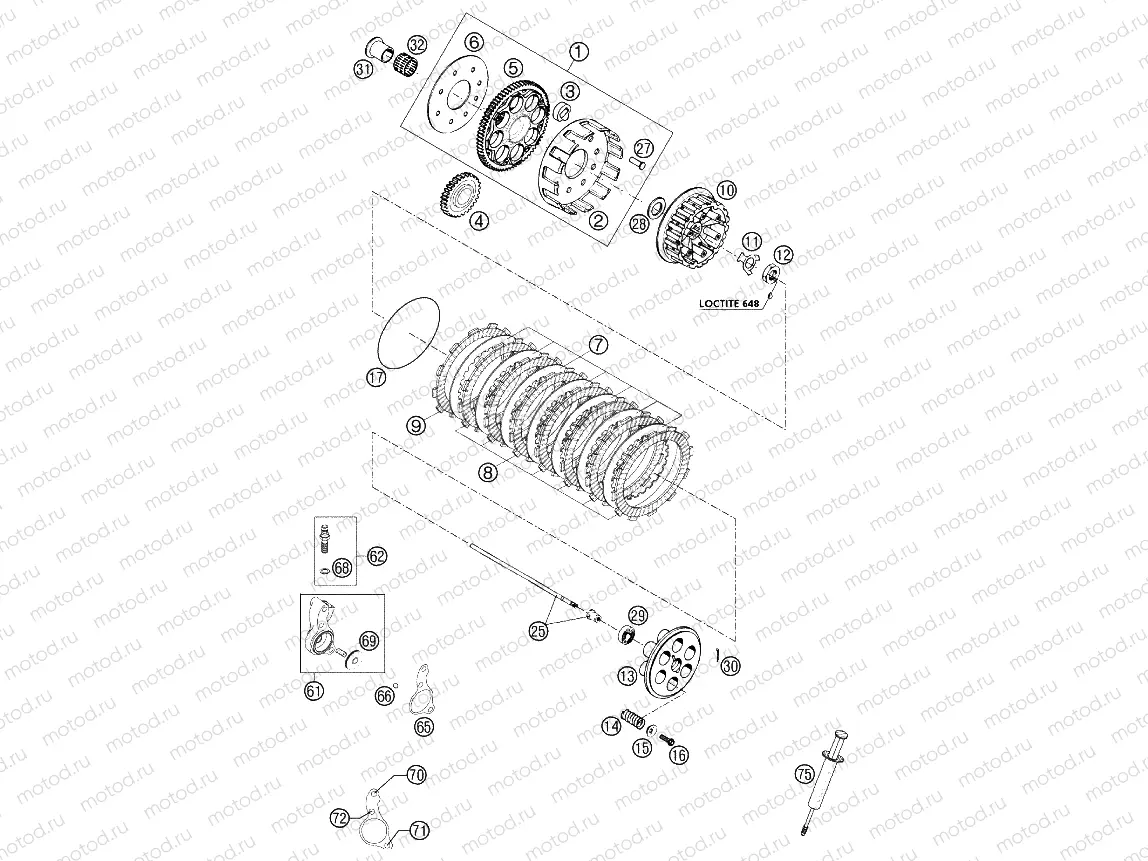

CLUTCH

CLUTCH
Например: 57332001144
1
57332001144
% OUTER CLUTCH HUB CPL.SMS 02/
2
57332001000
OUTER CLUTCH HUB MILLED SMS 02
3
58532026000
DAMPING ELEMENT RALLYE 2001
4
58532000131
PRIMARY GEAR WHEEL 31-T 2001
5
58532000079
CLUTCH WHEEL 79-T 2001
6
58332028000
BRACKET 57 x 132 x 1,5 '94
7
58332112000
STEEL DISK 1,5 MM LC4'94
8
58332011300
LINING DISK 2,7MM FCC 02 (2,7MM FCC 02)
9
58332111300
LINING DISK TURN OUT FCC 02
10
58332002300
INNER CLUTCH HUB LC4/LC4-E 04
11
58332018000
Rondelle (Lock)
12
0936181505
Nut (M18X1,5 R.)
13
58332003300
PRESSURE CAP LC4/LC4-E 04
14
58532080001
CLUTCH SPRING 3,0X33,5
15
58432081000
WASHER 6,5 X 20 X 2
16
0025060206
Vis
17
0770116030
O-Ring (116x3)
25
57332017044
PUSH ROD L=215MM CPL. 03
27
58332007000
RIVET 6 X 23 X 11,2
28
57532013000
SUPPORTWASHER 22,2X35X3 HARDE.
29
0625060016
Roulement (C3)
30
0094020163
PIN DIN0094-2,0X16
31
50332070000
INNER RING WITH COLLAR
32
56532095000
Needle bearing
61
58532061244
CYLINDER D=25MM CPL. RALLYE 05
62
50332062000
HOLLOW SCREW CPL. M 10X1 '98
65
50332065053
Gasket - clutch cover (2)
66
0401070003
BALL DIN5401-7
68
42013226000
Rondelle
69
58532066000
PISTON WITH O-RING D=25MM 2001
70
0912060303
AH SCREW DIN0912-M 6X30
71
0984060163
Vis (M6x16)
72
0912060253
AH SCREW DIN0912-M 6X25
75
50329050000
VENT INJEKTION HYDR. CLUTCH
