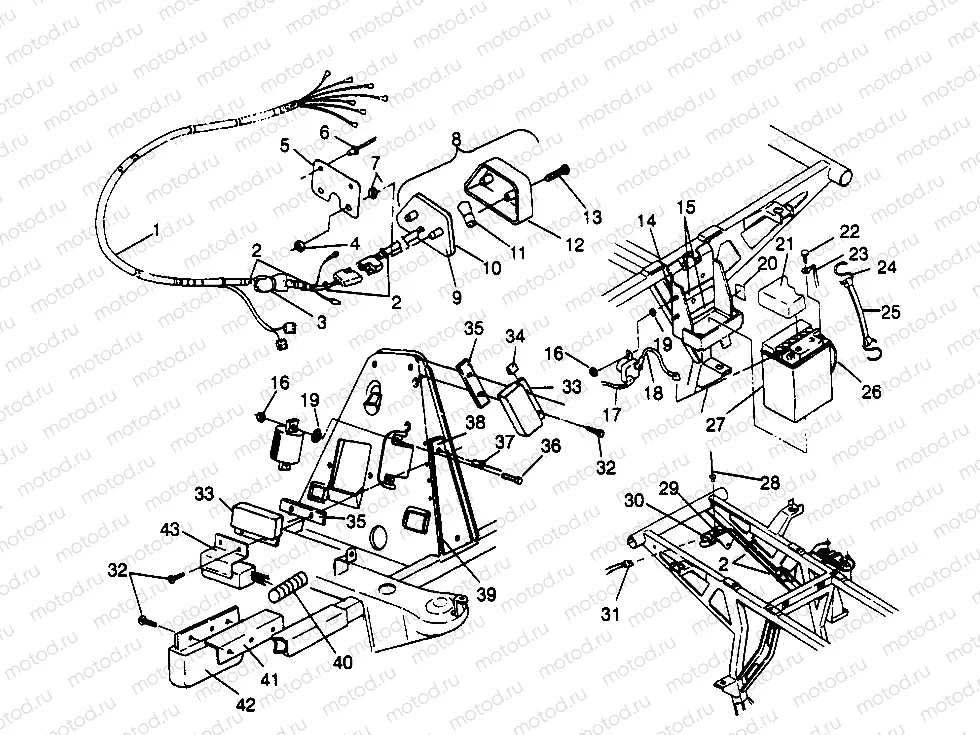

Главная Каталог товаров Polaris EPC 1996 Polaris ATV Polaris 1996 MAGNUM 2X4 (W967544) Polaris 1996 ATV ELECTRICAL/TAILLIGHT Magnum 2X4 W967544 (4936033603C006) | ELECTRICAL/TAILLIGHT Magnum 2X4 W967544 (4936033603C006)

ELECTRICAL/TAILLIGHT Magnum 2X4 W967544 (4936033603C006) | ELECTRICAL/TAILLIGHT Magnum 2X4 W967544 (4936033603C006)

ELECTRICAL/TAILLIGHT Magnum 2X4 W967544 (4936033603C006) | ELECTRICAL/TAILLIGHT Magnum 2X4 W967544 (4936033603C006)

Например: 2460562

1

2460562

HARNESS,MAIN WIRE

2

7080138

CABLE TIE

3

2200593

KIT CKT.BRKR 20 AMP

4

7670054

NUT PUSH-ON

5

5211391-067

ISOLATOR,TAILLIGHT

6

7621453

RIVET

7

7555916

Rondelle (plastic)

8

2432034

TAIL LIGHT ASM.

9

4032064

BACKING TAILLIGHT

10

4032045

Gasket

11

4030043

BULB

12

4032046

Taillight lens

13

4032029

Vis

14

7512027

Vis

15

5810290

PAD BATTERY

16

7541925

NUT NYLOK 10-24 Y

17

4010093

CABLE SOL/STARTER

18

4010094

CABLE BATT/SOLENOID RED

19

7571602

Rondelle

20

7072606

DECAL, BATTERY [No Longer Available]

21

5431769

COVER BATTERY

22

2200361

KIT-BATTERY BOLT (SHORT)

23

4010095

CABLE BATT/ENG. BLK.

24

7010032

HOOK-BATTERY STRAP

25

5418182

STRAP-BATTERY HOLD DOWN-C

26

5432077

TUBE VENT

27

4140006

La batterie

28

7621336

RIVET

29

7080524

CLAMP BLK 5/16 PLASTIC

30

2410022

POWER ASM 12V

31

2460442

PIGTAIL POWER

32

7512018

Vis

33

4060112

LIMITER,RPM,350HZ. Substituted by 4060203

34

8360012-13

DESC NOT_AVAILABLE

35

5210650

HEAT SINK

36

7512007

Vis

37

7621322

RIVET, POP(50)

38

4040056

BOARD,TERMINAL

39

5431152

SHIELD,TERM.BOARD

40

8360011-15

TUBING,CONVOLUTED,3/4"

41

5131036

HEATSINK RECT.

42

2205046

KIT-REGULATOR RECTIFIER LR-35

43

5240428

BRKT CDI(ATV 400)
