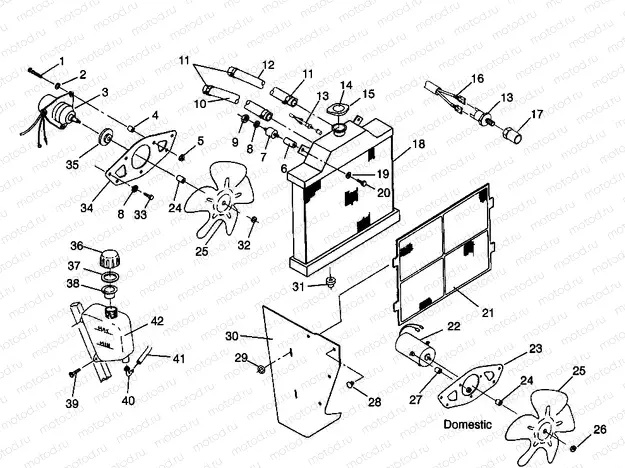

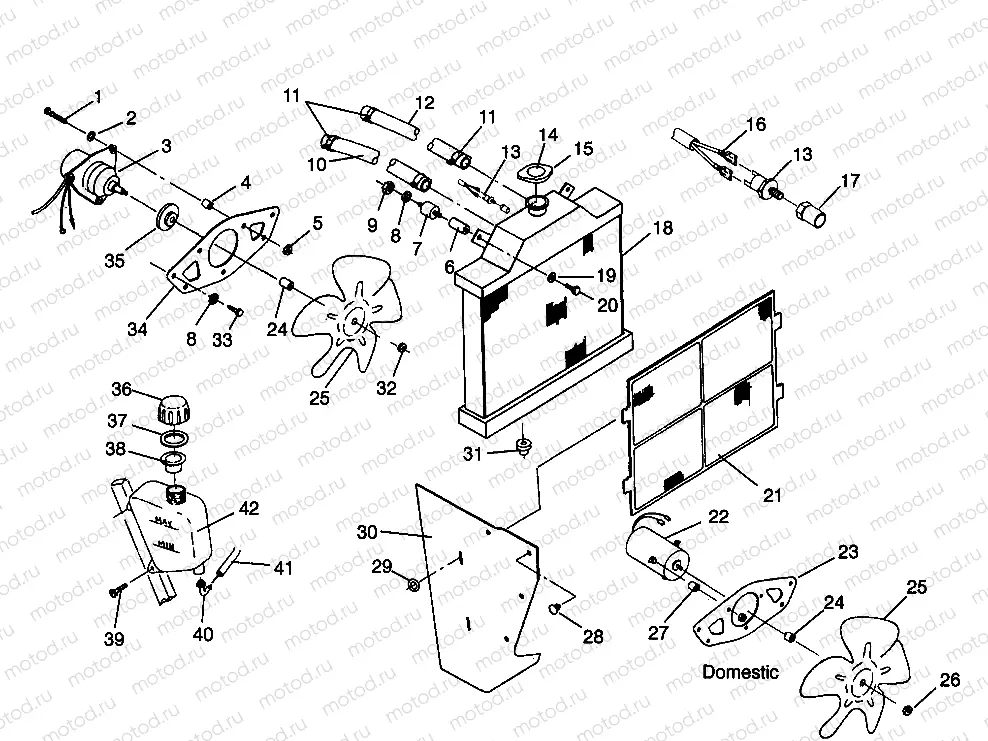

Главная Каталог товаров Polaris EPC 1996 Polaris ATV Polaris 1996 MAGNUM 2X4 (W967544) Polaris 1996 ATV COOLING SYSTEM Magnum 2X4 W967544 (4936033603A009) | COOLING SYSTEM Magnum 2X4 W967544 (4936033603A009)

COOLING SYSTEM Magnum 2X4 W967544 (4936033603A009) | COOLING SYSTEM Magnum 2X4 W967544 (4936033603A009)

COOLING SYSTEM Magnum 2X4 W967544 (4936033603A009) | COOLING SYSTEM Magnum 2X4 W967544 (4936033603A009)

Например: 7517221

1

7517221

Vis

2

7558201

WASHER FLAT

3

4170009

MOTOR FAN LIQ.COOLED

3

4170009

MOTOR FAN LIQ.COOLED

4

5333073

SPACER, FAN BRKT.

5

7547004

NUT

6

5020572

SPACER MOUNT

7

3110032

MOUNT RUBBER

8

7558301

WASHER FLAT

9

7542122

NUT-NYLOK

10

8450050-305

HOSE,WATER,305 CM.

11

7080614

CLAMP HOSE

12

5411108

HOSE CHAFE-PROTECTED

13

4110189

SWITCH ASM THERMAL FAN L/C

14

7073068

DECAL(CPSC),RAD.CAP

15

2511270

CAP PRESSURE (13 LB)

16

2460515

HARNESS FAN/THERM.SWITCH

17

7052116

FITTING HEX BUSH

18

1240015

RADIATOR,"U"FLOW

19

7552605

Rondelle

20

7512113

Vis

21

5431760

COVER,RADIATOR,W/MESH

22

4170009

MOTOR FAN LIQ.COOLED

23

5224741-067

BRKT COOL.FAN BLK

24

5333457

Entretoise

25

5240822

BLADE, FAN

26

7542154

Nut

27

5432294

SPACER,FAN BRKT.

28

7670090

CLIP PLASTIC DART NYLON

29

5410607

O RING

30

5431830

SHIELD,RH,RADIATOR SIDE

30

5431829

SHIELD LH RADIATOR SIDE

31

5410584

BUSHING-MOUNT LOWER RADIATOR

32

3083952

NUT

33

7512232

Vis

34

5224741-067

BRKT COOL.FAN BLK

35

3083951

Couvrir

36

5430743

CAP OVERFLOW

37

5810279

GASKET

38

5433774

CAP PLUG9X(GRN) FLEX TEMP

39

7512018

Vis

40

7052065

FITTING 90 DEGREE

41

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

42

5436936

TANK-SURGE
