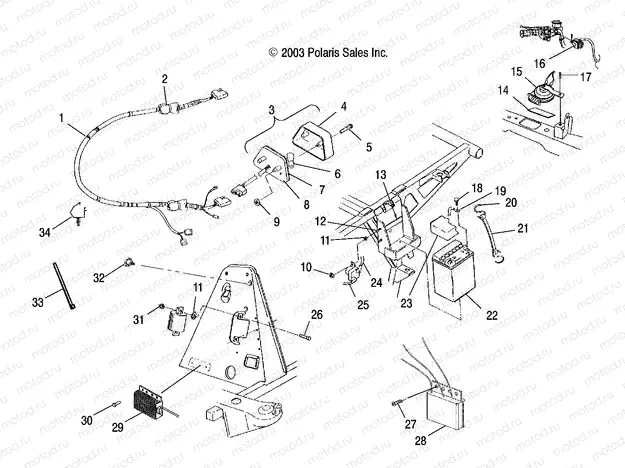

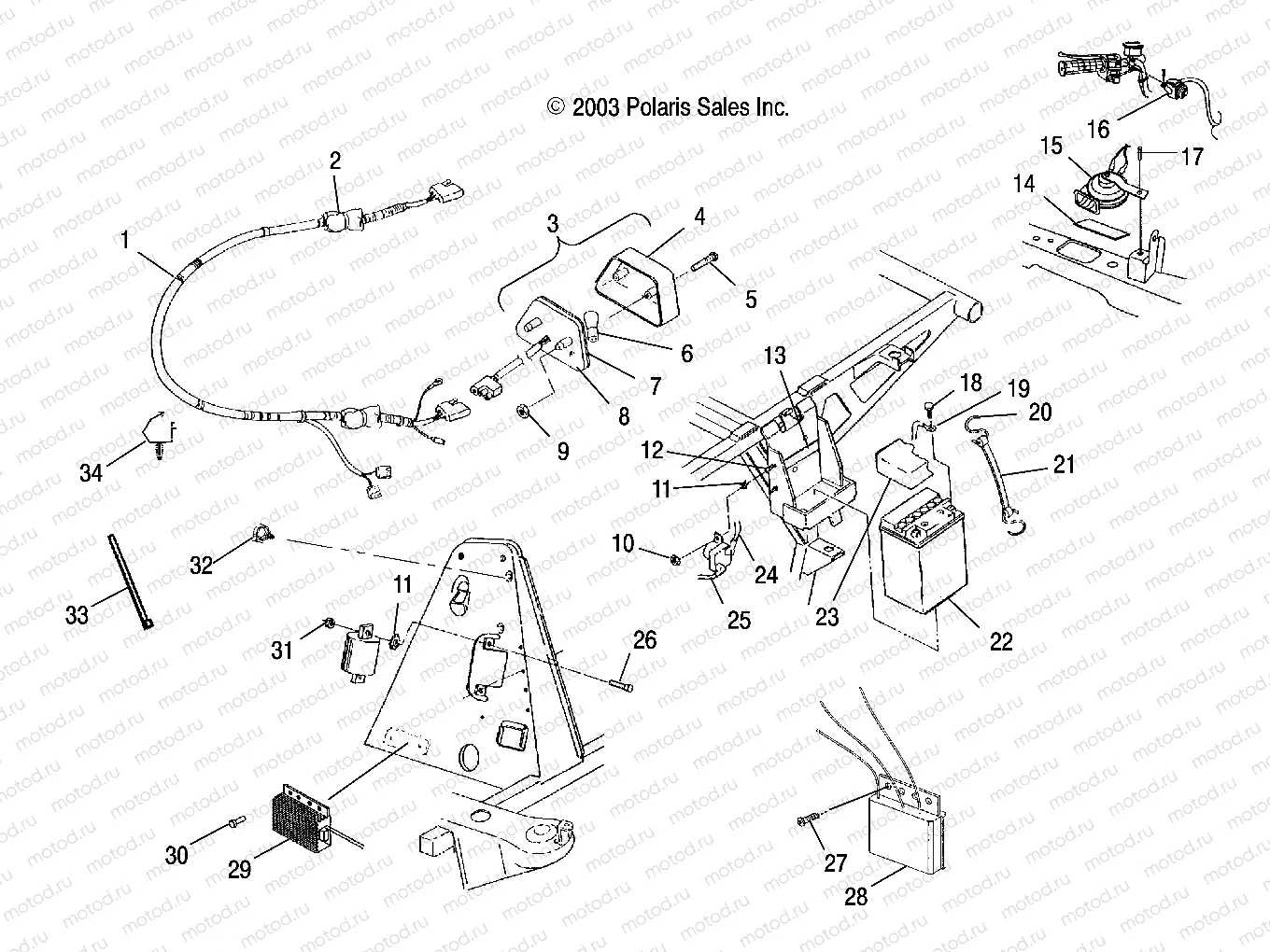

ELECTRICAL/TAILLIGHT - A04CD32AA/AB/AC/FB (4986268626C07) | ELECTRICAL/TAILLIGHT - A04CD32AA/AB/AC/FB (4986268626C07)

ELECTRICAL/TAILLIGHT - A04CD32AA/AB/AC/FB (4986268626C07) | ELECTRICAL/TAILLIGHT - A04CD32AA/AB/AC/FB (4986268626C07)

Например: 2202147

1

2202147

KIT-FUSIBLE LINK

1

2461182

HARNESS-MAIN

1

2461181

Harness, Main [FC]

2

2410323

BREAKER-CIRCUT 20 AMP

3

2410320

ASM-TAILLIGHT 12V SERIES FIL

4

4032046

Taillight lens

5

4032029

Vis

6

4030043

BULB

7

4032045

Gasket

8

LR--

CALIPER, BRAKE, RH

9

7670054

NUT PUSH-ON

10

7518287

NUT-#10-24 NYLOK INSERT

11

7571602

Rondelle

12

7512027

Vis

13

5810290

PAD BATTERY

14

5810317

PAD,FUELTANK BRKT. Substituted by 8360026

15

4010310

HORN (FA)

16

4010311

SWITCH BUTTON

17

7517386

Vis

18

2202213

KIT-BATTERY BOLT (LONG)

19

4010095

CABLE BATT/ENG. BLK.

20

7010032

HOOK-BATTERY STRAP

21

5418182

STRAP-BATTERY HOLD DOWN-C

21

5418182

STRAP-BATTERY HOLD DOWN-C

22

4010774

La batterie

22

4140006

La batterie

23

5431769

COVER BATTERY

24

4010094

CABLE BATT/SOLENOID RED

25

4010093

CABLE SOL/STARTER

26

7512007

Vis

27

7512017

Vis

28

2205237

KIT-LIMITER SPEED 695HZ CONN

28

4010137

LIMITER,RPM,350 HZ,LR44-3 (AA)(CA)

29

4010944

MODULE-ELECTRONIC CONTROL

30

7512024

Vis

31

7541925

NUT NYLOK 10-24 Y

32

4020139

CLIP ROSEBUD

33

7080138

CABLE TIE

34

7670109

CLIP-ROUTING
