Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 MAGNUM 330 4X4 (A04CD32AA) Polaris 2004 ATV (VIN: 4XACD32A) A-ARM/STRUT MOUNTING - A04CD32AA/AB/AC/FB (4986268626C02) | A-ARM/STRUT MOUNTING - A04CD32AA/AB/AC/FB (4986268626C02)

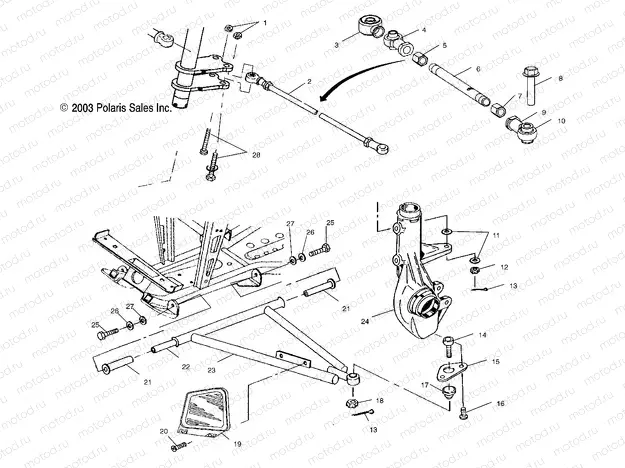

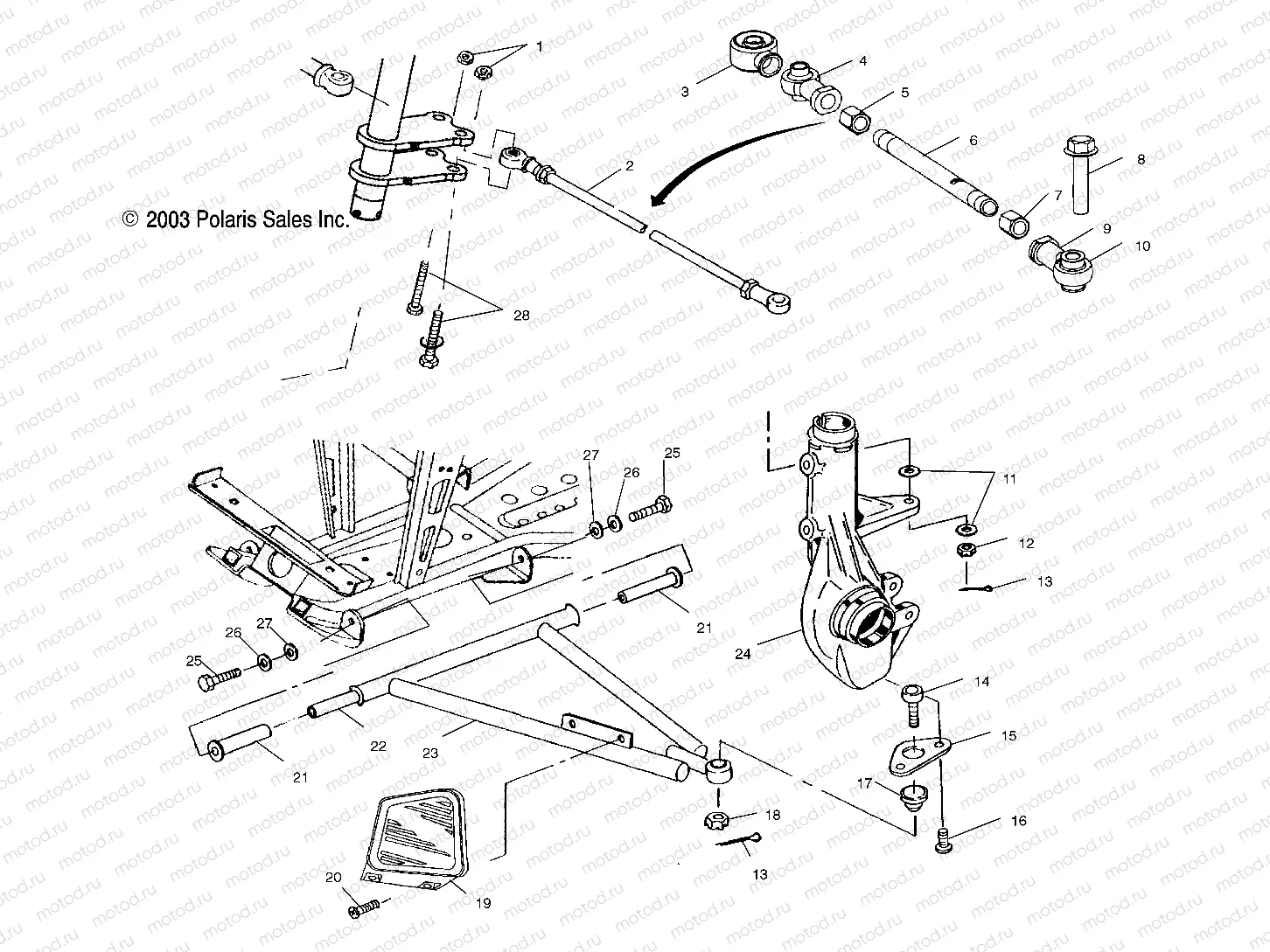

A-ARM/STRUT MOUNTING - A04CD32AA/AB/AC/FB (4986268626C02) | A-ARM/STRUT MOUNTING - A04CD32AA/AB/AC/FB (4986268626C02)

A-ARM/STRUT MOUNTING - A04CD32AA/AB/AC/FB (4986268626C02) | A-ARM/STRUT MOUNTING - A04CD32AA/AB/AC/FB (4986268626C02)

Например: 7542439

1

7542439

Nut (SELF-LOCKING)

2

1822852

ASM-TIE ROD 1/2-20X13.4

3

5412928

BOOT-SEAL ROD END 1/2 IN

4

7061139

ROD-END 3/8 1/2-20RH 44DEG

5

7542711

NUT-JAM

6

5020926

ROD TIE

7

7547028

NUT JAM LH

8

7517909

BOLT-M10X1.25X65 HX WASH HD

9

7061138

ROD-END 10MM 1/2-20LH 42 DEG

10

5412929

BOOT-SEAL ROD END 10MM

11

7556099

WASHER

12

7547177

NUT-M10X1.25-HX-LOCK-Y

13

7661203

PIN COTTER

14

7061158

BALL-JOINT GREASELESS STRUT

15

5211121

BRKT BALL JOINT

16

7512284

BOLT SOCKET

17

5412658

BOOT-BALLJOINT GREASELESS STRT

18

7542438

NUT CASTLE

19

5431149-070

SHIELD-CV JOINT RH BLK

19

5431150-070

SHIELD-CV JOINT LH BLK

19

5435028-070

SHIELD-CV FRONT BASIC LH BLK

19

5435029-070

SHIELD-CV FRONT BASIC RH BLK

20

7512084

Vis

21

5436973

BUSHING-A-ARM LONG 102.36MM(10

22

5133806

SHAFT-A-ARM

23

2202282

KIT-A-FRAME LH(1541870)

23

2202274

KIT-A-FRAME LH(1541740)

23

2202275

KIT-A-FRAME RH(1541741)

23

2202283

KIT-A-FRAME RH(1541871)

24

LR--

CALIPER, BRAKE, RH

25

7512492

Vis

26

7552603

Rondelle (Lock)

27

7555832

Rondelle

28

7515415

Vis

Узлы для MAGNUM 330 4X4 (A04CD32AA) Polaris 2004 ATV (VIN: 4XACD32A)
