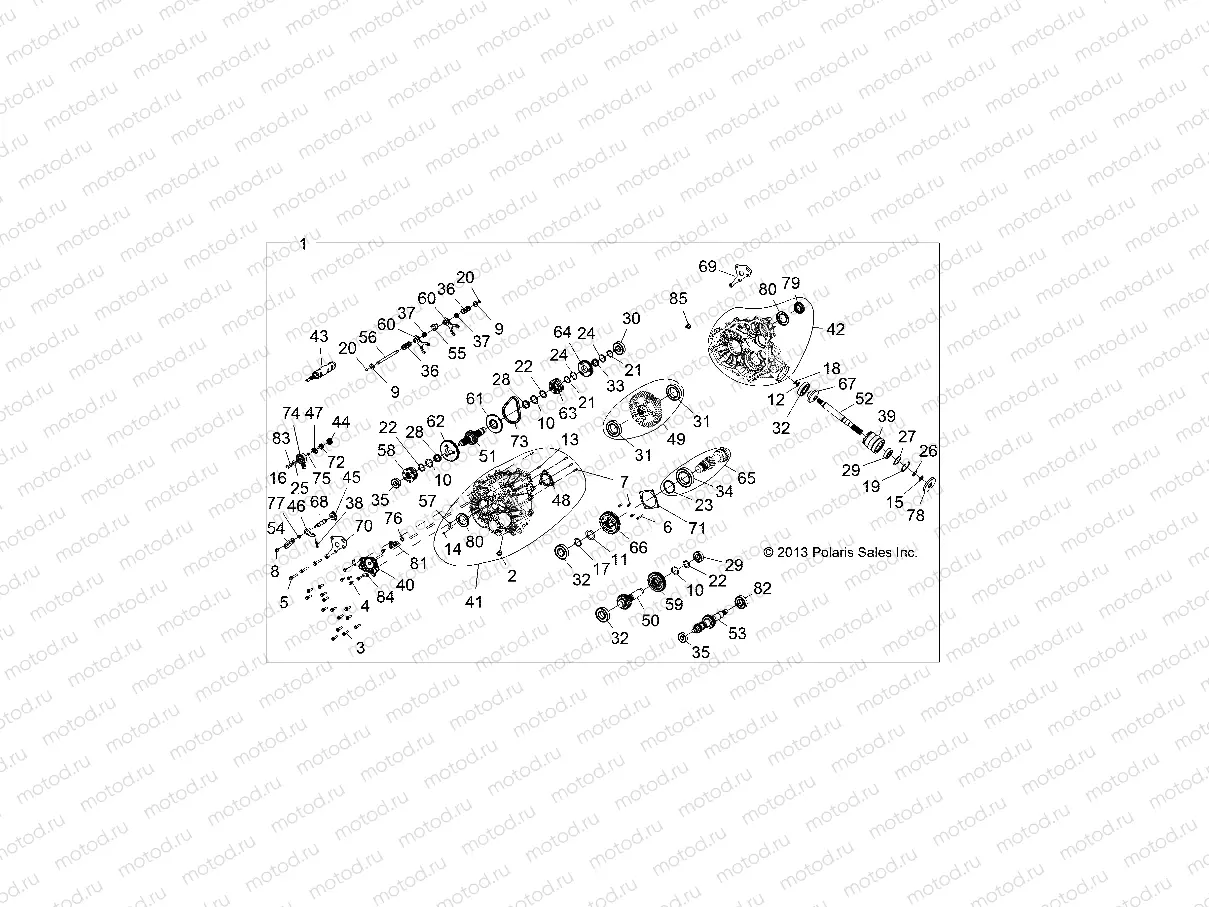

DRIVE TRAIN | DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z146T1EAM/EAW (49RGRGEARCASE14RZR1000)

DRIVE TRAIN | DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z146T1EAM/EAW (49RGRGEARCASE14RZR1000)
Например: 1333121
1
1333121
ASM-GEARCASE COMPLETE
2
3234756
PLUG-SOCKET HEAD W/MAG M18X1.5
3
3234898
SCREW-HEXFLANGEHEAD M8X1.25X30
4
3235206
Vis
5
3235207
Vis
6
3235208
SCR-M6X1.0X40 SOC/CAP(105344)
7
3235332
SCR-SCKT HD CP M6X1X18(105355)
8
3235210
NUT-M8X1.25 HXFLG NYLN(110093)
9
3234091
WASHER-CUP
10
3235211
Rondelle
11
3235212
Rondelle
12
3235213
Rondelle
13
3234330
Dowel pin
14
7043746
SPRING-SLOTTED PIN 6MM
15
3233106
RING SNAP
16
3233834
RING-RETAINING
17
3233364
RING RETAINING
18
3234318
RING RETAINING EXTERNAL SHR-66
19
3234269
RING RETAININGBASICINTRNL2.047
20
3234090
RING-RETAINING
21
3234205
RING RETAINING
22
3235214
RING RETAINING EXTERNAL
23
3235216
RING RETAINING
24
3233378
WASHER THRUST
25
3234642
WASHER THRUST .446X.88X.025
26
3234272
SHIM 1.180 X .995
27
3234273
SHIM 2.040 OD X 1.630 ID
28
3233014
BEARING NEEDLE
29
3233019
Roulement
30
3233020
Roulement
31
3233268
BEARING BALL
32
3234065
BEARING-BALL
33
3233384
BEARING NEEDLE
34
3235218
BEARING BALL
35
3234652
BEARING BALL
36
3234078
SPRING-COMPRESSION
37
3234089
SPRING-COMPRESSION
38
3233830
SPRING-COMPRESSION
39
3234278
TUBE SNORKLE MACH
40
3234188
COVER GEARCASE
41
3235515
SUBASSY RH CASE (412042)
42
3235514
SUBASSY LH CASE(412043)
43
3235463
DRUM-SHIFT MACH.(255289)
44
3233839
GEAR-SECTOR 16T
45
3233832
GEAR-SECTOR 31T-CUT TO 11T
46
3235452
ROLLER PAWL
47
3235453
DETENT STAR
48
3235456
PARK PLATE (270509)
49
3235335
ASM-SUB OUTPUT GEAR(411753)
50
3235223
SHAFT IDLER 29T
51
3235224
SHAFT REVERSE 29T
52
3235394
SHAFT-FRONT OUTPUT(285914)
53
3235492
INPUT-42T 20T 25T(285990)
54
3235227
BELLCRANK
55
3234073
COLLAR-SHIFT
56
3235542
RAIL-SHIFT SHAFT(353622)
57
3234230
TUBE-VENT 90-1/4 HOSE
58
3235457
SHIFT DOG PARK/LOW (353357)
59
3235229
GEAR 44T STAGE 2
60
3235454
SHIFT FORK SUBASSEMBLY
61
3235231
SPROCKET-48T 6-FACE(352854)
62
3235232
GEAR-LOW 67T(352856)
63
3235233
DOG ENGAGEMENT 6-FACE
64
3235234
GEAR 53T
65
3235336
ASM-SUB PINION SHAFT(411759)
66
3235236
GEAR 46T STAGE 3
67
3235237
GEAR-13T FRONT OUTPUT(352957)
68
3235238
SHAFT SHIFT
69
3235558
WELD-REAR MNT BRKT(400288)
70
3235559
BRKT-REAR MOUNT(430702)
71
3235241
COVER BEARING CENTER DRIVE
72
3235243
Entretoise
73
3234737
CHAIN SILENT
74
7661999
PIN-GEAR POSITION SWITCH
75
3233836
O-Ring
76
3234302
O-RING -113
77
3233828
O-Ring
78
3234113
SEAL-TRIPLE LIP 25X80X10
79
3235495
SEAL-TRIP LIP VTN HLX(560385)
80
3235052
SEAL-TRIPLE LIP VITON 40X70X7
81
4013908
SENSOR-SPEED TRANS
82
3235496
BEARING-6206RSH2(180630)
83
3235327
WASHER-SPRING 210393
84
3235350
BRKT-MOUNT(430592)
85
3234755
PLUG-SKT HD 1SO 6149 M18 X 1.5
