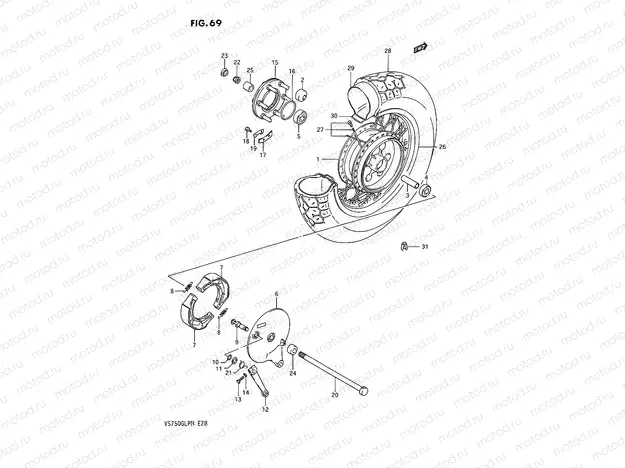

69 - REAR WHEEL (VS750GLFH/GLPH,MODEL J/K/L/M)

69 - REAR WHEEL (VS750GLFH/GLPH,MODEL J/K/L/M)

Например: 64100-07861

1

64100-07861

Hub set,rear

2

09319-12019

САЙЛЕНТБЛОК ВЕРХ.

759 ₽/шт

3

64731-37200

Spacer, rear hub (l:80)

3

09180-17091

Spacer ,rr hub

4

08133-6203B

earing

1 394 ₽/шт

5

08143-63037

Подшипник

1 308 ₽/шт

6

64210-38A21

PANEL,RR BRAKE ANCHOR

18 455 ₽/шт

7

64400-38810

SHOE SET,BRAKE

5 315 ₽/шт

8

55420-30000

SPRING

221 ₽/шт

9

64440-38A00

Cam ,brake

10

09280-15003

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

204 ₽/шт

11

09160-15048

Шайба

102 ₽/шт

12

64451-38A01

LEVER,RR BRAKE CAM

3 988 ₽/шт

13

09118-06086

Болт 6X25

1 680 ₽/шт

14

08321-01067

Шайба, стопорная

81 ₽/шт

15

64680-45113

JOINT ASSY,RR HUB DRIVEN

14 467 ₽/шт

16

09280-65003

O RING(D:2.1,ID:65)

1 840 ₽/шт

17

64677-45110

Шайба упорная

172 ₽/шт

18

09119-06049

БОЛТ

900 ₽/шт

19

09169-06030

Шайба

1 520 ₽/шт

20

64711-38A11

XLE,RR

5 826 ₽/шт

21

09448-33006

Пружина кулачка

3 680 ₽/шт

22

08319-3114A

Гайка

646 ₽/шт

23

64791-38B00

CAP,RR AXLE,R

16 320 ₽/шт

24

64751-46D00

SPACER,RR AXLE,L

1 548 ₽/шт

25

64772-34201

SPACER,RR AXLE,L

1 150 ₽/шт

26

65311-38A02

Rim,wheel

27

65320-38A02

SPOKE ASSY,RR WHEEL

17 360 ₽/шт

28

65100-38A41

Tire, rear (140/90-15m/c 70h) bridgestone

29

65200-38A70

TUBE ASSY,WHEEL INNER

4 497 ₽/шт

30

65261-38A00

PROTECTOR,WHL INR TUBE

714 ₽/шт

31

55413-41F00

BALANCER,WHEEL(30G)

469 ₽/шт
