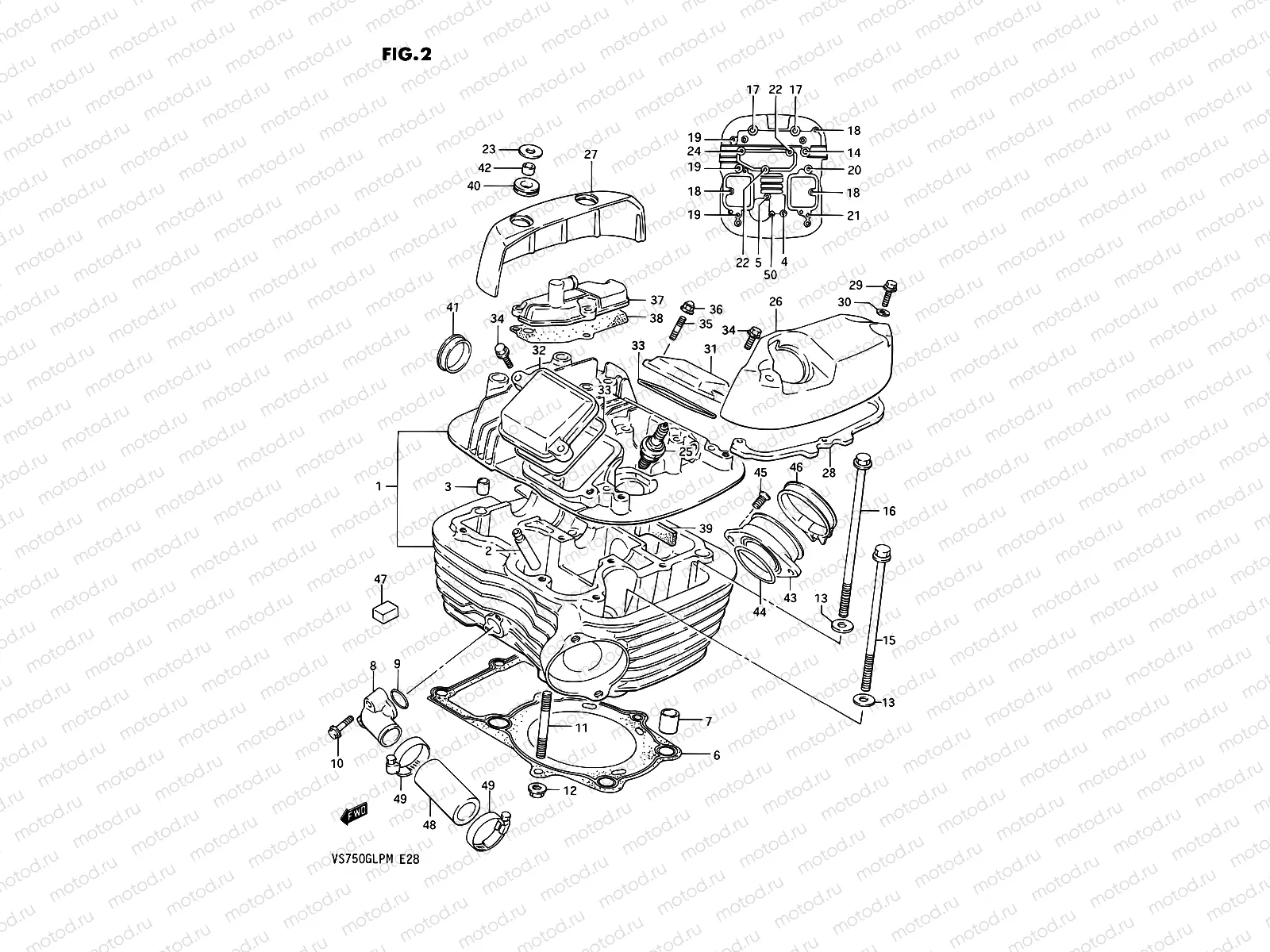

2 - CYLINDER HEAD (REAR)

2 - CYLINDER HEAD (REAR)

Например: 11103-38A02

1

11103-38A02

Head assy, cylinder rear

2

11115-41F70

GUIDE,VALVE(OS:0.3)

1 785 ₽/шт

3

09206-11011

Pin,cylinder he

4

09103-06101

BOLT(6X50)

162 ₽/шт

5

09103-06102

BOLT(6X55)

170 ₽/шт

6

11142-38A03

Joint culasse

7

04211-13189

ШТИФТ

129 ₽/шт

8

11169-45C10

UNION,CYLINDER HEAD WATER

4 199 ₽/шт

9

09280-18004

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

272 ₽/шт

10

01547-06257

БОЛТ

102 ₽/шт

11

09108-08144

Болт

272 ₽/шт

12

08316-10087

ГАЙКА

82 ₽/шт

13

09160-10039

Шайба

119 ₽/шт

14

09103-08040

BOLT(8X140)

291 ₽/шт

15

09103-10133

BOLT(10X155)

678 ₽/шт

16

09103-10134

BOLT(10X165)

792 ₽/шт

17

09103-08180

BOLT(8X245)

10 240 ₽/шт

18

09118-06086

Болт 6X25

1 680 ₽/шт

19

01550-06307

Болт

102 ₽/шт

20

07120-0630B

Болт

97 ₽/шт

21

01550-0640A

Болт

1 410 ₽/шт

22

09103-06102

BOLT(6X55)

170 ₽/шт

23

09160-08130

Шайба

102 ₽/шт

24

01550-06207

БОЛТ

85 ₽/шт

25

09482-00334

SPARK PLUG DPR8EA-9

727 ₽/шт

26

11173-38A03

CAP,CYLINDER HEAD COVER RR,L

7 234 ₽/шт

27

11174-38A02

CAP,CYLINDER HEAD COVER RR,R

6 021 ₽/шт

28

11273-38A01

CUSHION,RR,L CAP

735 ₽/шт

29

01244-06357

Болт

1 840 ₽/шт

30

08322-0106A

Шайба

81 ₽/шт

31

11175-38A11

CAP,INSPECTION INTAKE

1 150 ₽/шт

32

11176-38A02

Cap,inspection

33

11177-38A00

ПРОКЛАДКА

289 ₽/шт

34

01547-06207

Болт

85 ₽/шт

35

01421-0616A

Болт заклепка

114 ₽/шт

36

08313-2006A

Гайка

337 ₽/шт

37

11186-38A02

Крышка сапуна

1 329 ₽/шт

38

11187-38A02-H17

Прокладка

841 ₽/шт

39

11179-38A00

PLATE,HEAD COVER RR

571 ₽/шт

40

09320-13015

CUSHION

204 ₽/шт

41

09241-30004

ШЛАНГ

485 ₽/шт

42

09301-08007

Втулка

194 ₽/шт

43

13102-45C00

PIPE ASSY,INTAKE RR

7 268 ₽/шт

44

09280-40020

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

533 ₽/шт

45

02122-0620B

Винт

1 090 ₽/шт

46

09402-52501

CLAMP

8 450 ₽/шт

47

11152-38A00

PAD

170 ₽/шт

48

17854-38A00

HOSE,CYLINDER HEAD JOINT

606 ₽/шт

49

09402-28511

CLAMP

307 ₽/шт

50

01550-06307

Болт

102 ₽/шт
