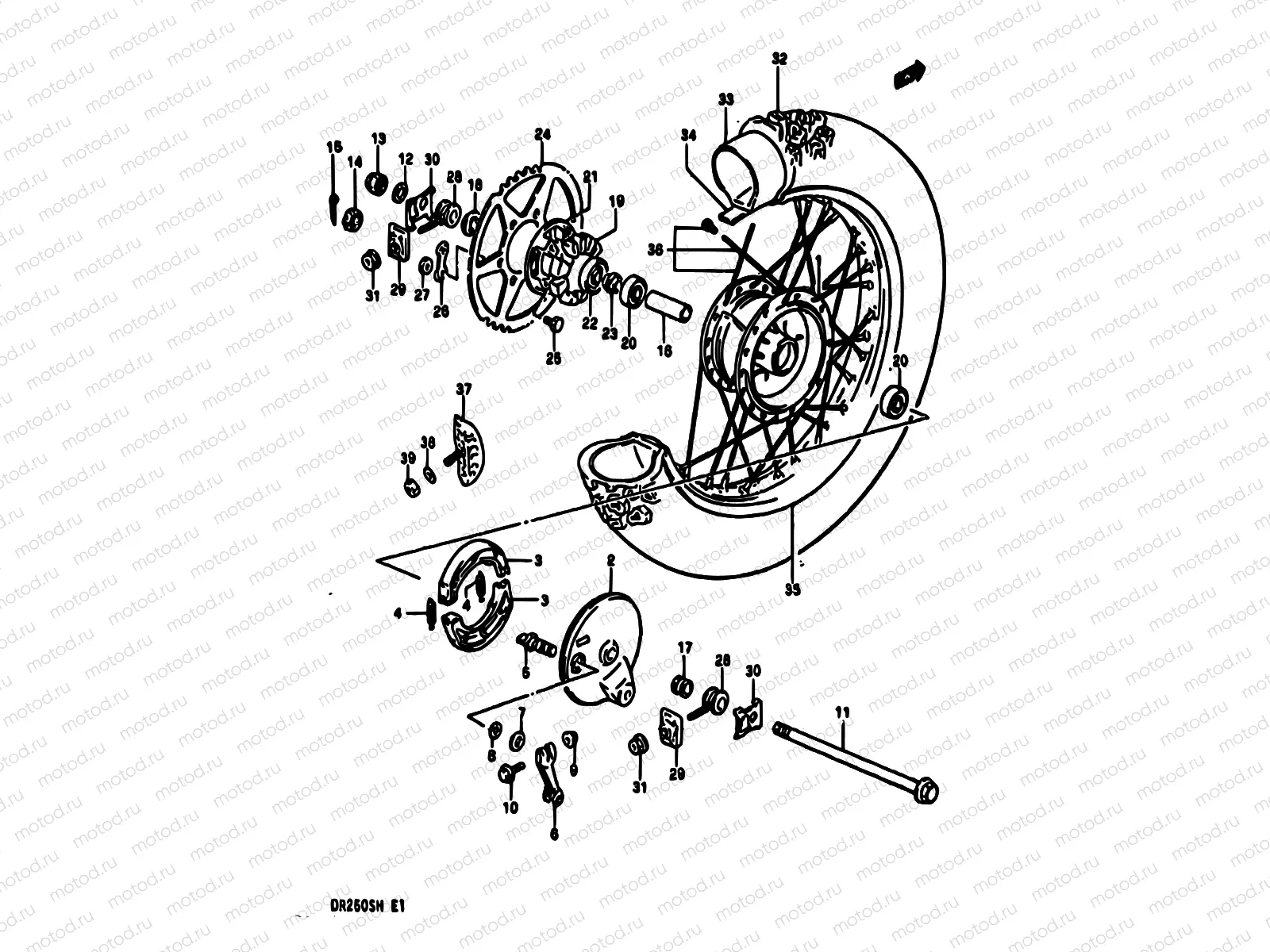

65 - REAR WHEEL

65 - REAR WHEEL

Например: 64110-38200

1

64110-38200

Drum,rear hub

2

64210-38200

Panel,rear hub

3

54410-07040-XNA

Shoe,brake

4

09443-07001

SPRING(L:34)

170 ₽/шт

5

54441-29305

CAM,BRAKE

1 036 ₽/шт

6

64451-29900

Lever,brake cam

7

09160-14055

Шайба

1 450 ₽/шт

8

09280-14011

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ ПОМПЫ МАСЛЯНОЙ, РЕЗИНА !

226 ₽/шт

9

08319-31067

Гайка

153 ₽/шт

10

01550-06357

БОЛТ

102 ₽/шт

11

64711-09B00

12

08322-01167

Шайба

85 ₽/шт

14

09141-16001

Nut

15

04111-4030A

Шпонка

85 ₽/шт

16

64731-40600

Spacer,hub bearing

17

64741-38200

Spacer,axle rh

18

64750-38201

Spacer,axle lh

19

64651-38201

Damper - rear wheel hub

20

08143-62037

BEARING

1 122 ₽/шт

21

64611-38200

Drum,sprocket mounting

22

08123-6204B

earing,rear Wheel Hub

1 308 ₽/шт

23

64733-38200

Holder,sprocket

24

64511-38200

Sprocket,rr nt

25

09119-08078

Vis (8x36)

26

09169-08011

Шайба

187 ₽/шт

27

08310-00087

Гайка 8MM

81 ₽/шт

28

61410-38200

Adjuster,chain

29

61421-38200

PLATE,CHAIN ADJUSTER

629 ₽/шт

30

64712-38200

WASHER,CHAIN ADJUSTER GUIDE

203 ₽/шт

31

08319-31087

Гайка

178 ₽/шт

32

65100-38210

Tire,rear (4.60x17) irc

32

65100-38230

Tire,rear (4.60x17) bg

33

65200-49030

Tube 4.50v17

34

55261-02B40

PROTECTOR,WHL INR TUBE

348 ₽/шт

35

65311-38240

Rim,wheel (215x17al) (gold)

36

65320-38200

Spoke set,rr

37

65270-28E00

STOPPER,BEAD(2.15)

3 324 ₽/шт

38

08322-01087

Шайба

81 ₽/шт

39

08310-00087

Гайка 8MM

81 ₽/шт
