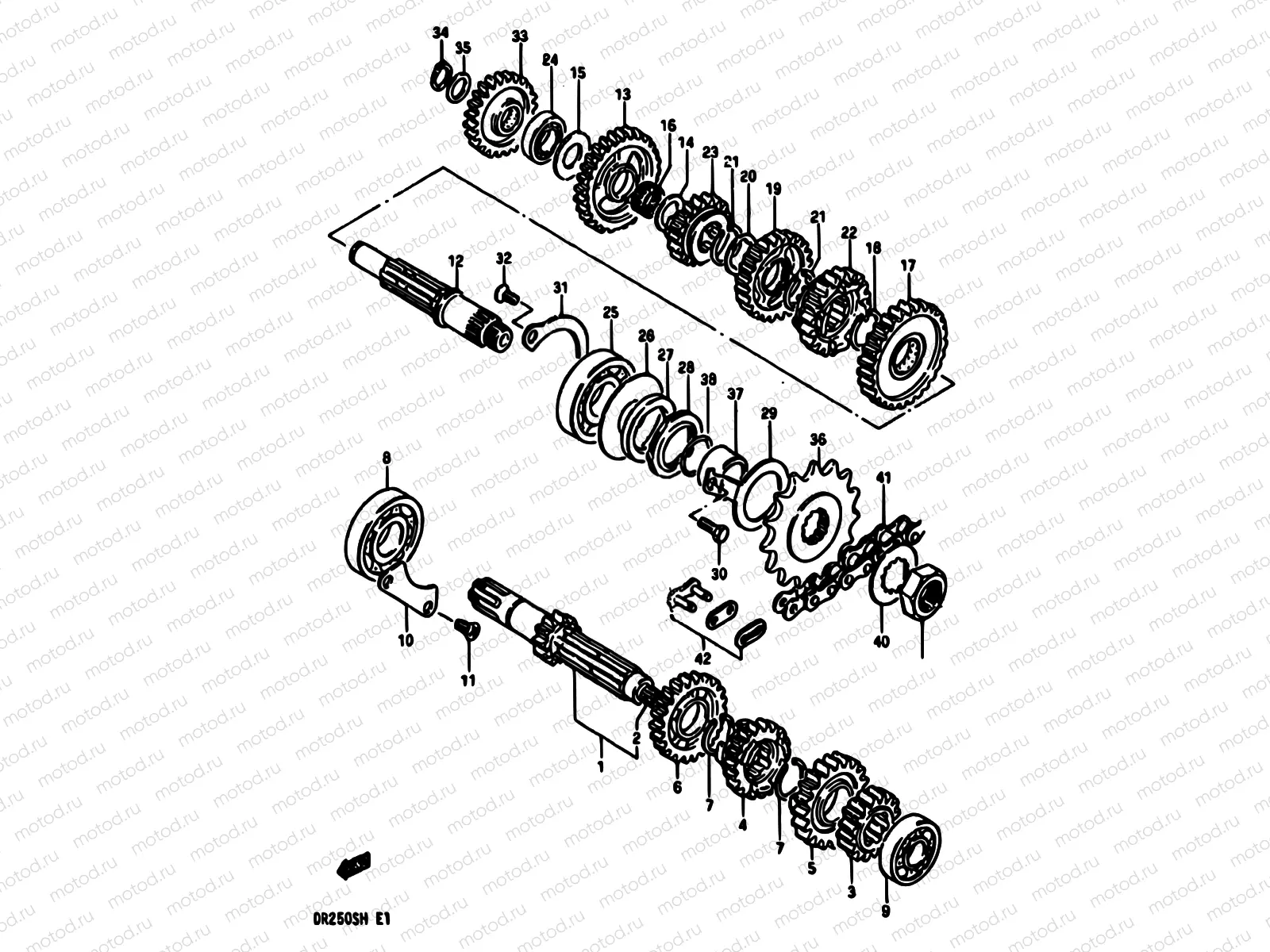

14 - TRANSMISSION

14 - TRANSMISSION

Например: 24120-38203

1

24120-38203

SHAFT,COUNTER(NT:11)

10 518 ₽/шт

2

24125-38201

Втулка

272 ₽/шт

3

24221-32412

GEAR,2ND DRIVE(NT:16)

6 452 ₽/шт

4

24231-38201

GEAR,3RD DRIVE(NT:19)

19 040 ₽/шт

5

24241-32401

GEAR,4TH DRIVE(NT:20)

4 848 ₽/шт

6

24251-32420

GEAR,5TH DRIVE(NT:22)

6 021 ₽/шт

7

09380-22006

КЛИПС

194 ₽/шт

8

09262-22028

Подшипник

4 590 ₽/шт

9

09262-17027

Подшипник

1 683 ₽/шт

10

24741-38200

RETAINER,CNTR SHAFT BEARING

352 ₽/шт

11

02112-06127

Болт

81 ₽/шт

11

02122-0612B

Болт

82 ₽/шт

12

24130-38201

Driveshaft

13

24311-32401

GEAR,1ST DRIVEN(NT:29)

12 325 ₽/шт

14

09181-17195

Шайба

1 800 ₽/шт

15

08211-17363

WASHER

1 520 ₽/шт

16

09263-17004

BEARING(17X21X9.8)

774 ₽/шт

17

24320-32411

GEAR,2ND DRIVEN(NT:27)

6 295 ₽/шт

18

09380-22006

КЛИПС

194 ₽/шт

19

24330-38202

GEAR,3RD DRIVEN(NT:24)

5 357 ₽/шт

20

09167-22011

Пластина замка

1 880 ₽/шт

21

09380-22006

КЛИПС

194 ₽/шт

22

24341-38201

GEAR,4TH DRIVEN(NT:20)

7 429 ₽/шт

23

24351-38201

GEAR,5TH DRIVEN(NT:18)

10 710 ₽/шт

24

09264-17001

BEARING(17X36X12)

2 581 ₽/шт

25

09262-22013

BEARING(22X56X16)

5 865 ₽/шт

26

09160-35007

WASHER(35X55X1)

1 410 ₽/шт

27

09282-30004

SEAL,OIL(30X43X5)

602 ₽/шт

28

09283-30041

SEAL,OIL(30X43X7)

622 ₽/шт

29

24751-38201

RETAINER,DRIVE SHAFT OIL SEAL

743 ₽/шт

30

01500-0612B

Болт

1 210 ₽/шт

31

24752-14210

Plate,drive sha

32

02122-0612B

Болт

82 ₽/шт

33

26260-38200

GEAR,KICK STARTER IDLE(NT:24)

4 301 ₽/шт

34

09380-17001

CIRCLIP

162 ₽/шт

35

08211-17241

WASHER

162 ₽/шт

36

27511-32401

SPROCKET,ENGINE(NT:15)

9 520 ₽/шт

36

27511-37400

Sprocket,engine

37

27531-32400

Spacer

38

09280-21008

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

210 ₽/шт

39

09140-18008

ШАЙБА

697 ₽/шт

40

09167-22012

Пластина замка

85 ₽/шт

41

27600-43D02-116

CHAIN,DRIVE (DID520DMA4 SDH)

20 485 ₽/шт

42

27620-28C01
