Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VLR 1800 Intruder C1800R / Boulevard C109R SUZUKI VLR1800 L0 Intruder C1800R / Boulevard C109R SUZUKI 62 - FRONT BRAKE HOSE

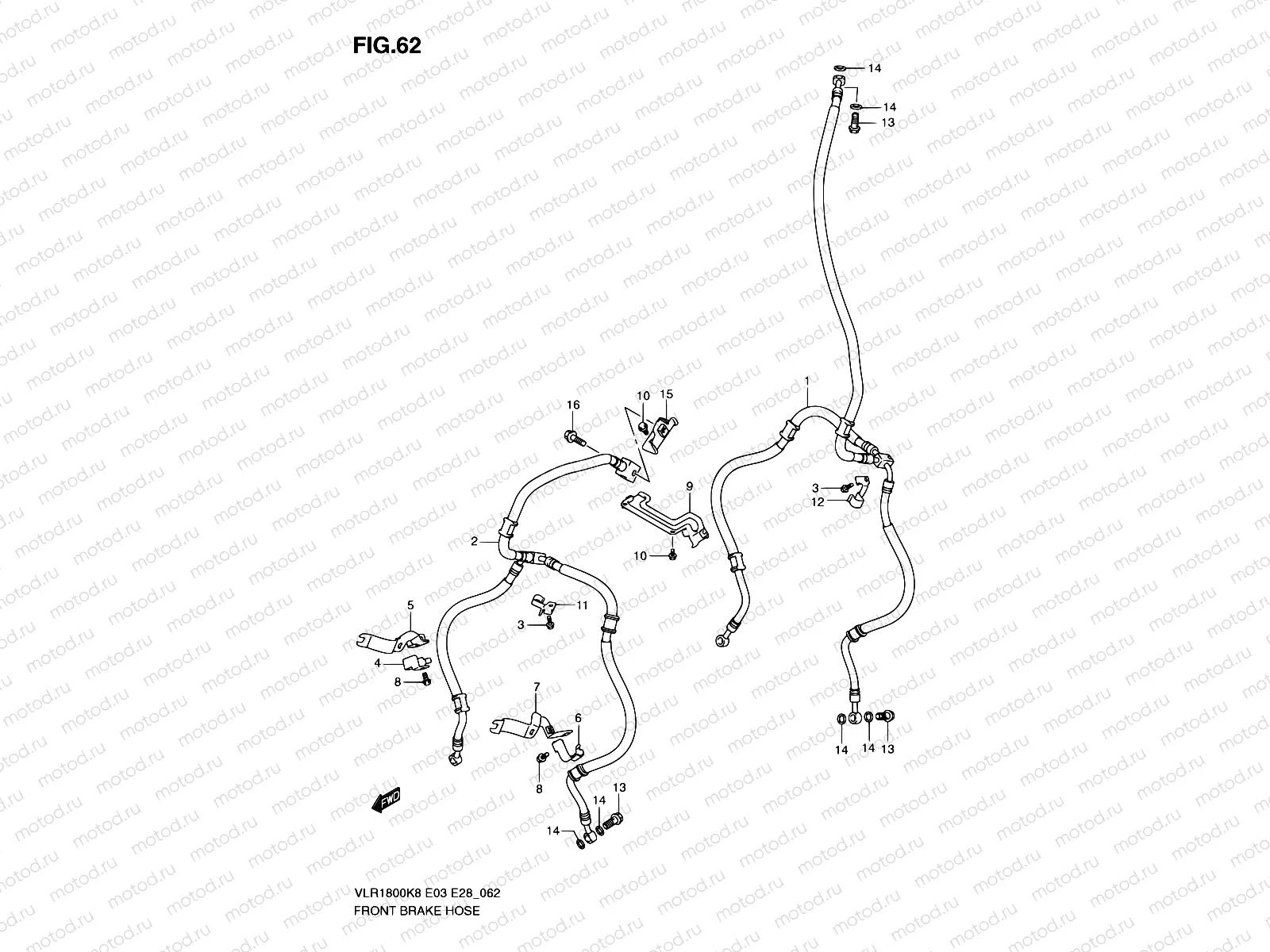

62 - FRONT BRAKE HOSE

62 - FRONT BRAKE HOSE

Например: 59480-22H01

1

59480-22H01

ose,fr Brake

24 140 ₽/шт

2

69480-22H01

ose,rr brake n

3

01547-0625B

БОЛТ

97 ₽/шт

4

59261-22H00

CLAMP,FR BRAKE HOSE NO.1,R

978 ₽/шт

5

59460-22H00

CLAMP,FR BRAKE HOSE,R

1 032 ₽/шт

6

59271-22H00

CLAMP,FR BRAKE HOSE,L

978 ₽/шт

7

59470-22H00

CLAMP,FR BRAKE HOSE,L

1 032 ₽/шт

8

01547-0610B

БОЛТ

82 ₽/шт

9

59260-22H00

CLAMP,FR BRAKE HOSE

1 150 ₽/шт

10

01550-0612A

БОЛТ КУЗОВНОЙ, МЕТАЛЛ

81 ₽/шт

11

59264-22H00

CLAMP,FR BRAKE HOSE NO.3

978 ₽/шт

12

69275-22H00

CLAMP,RR BRAKE HOSE

891 ₽/шт

13

09360-10062

Болт соединяющий

469 ₽/шт

14

09161-10009

Шайба

113 ₽/шт

15

69270-22H00

CLAMP,RR BRAKE HOSE

630 ₽/шт

16

01550-0825A

Болт

119 ₽/шт
