Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VLR 1800 Intruder C1800R / Boulevard C109R SUZUKI VLR1800 L0 Intruder C1800R / Boulevard C109R SUZUKI 34 - TURNSIGNAL LAMP

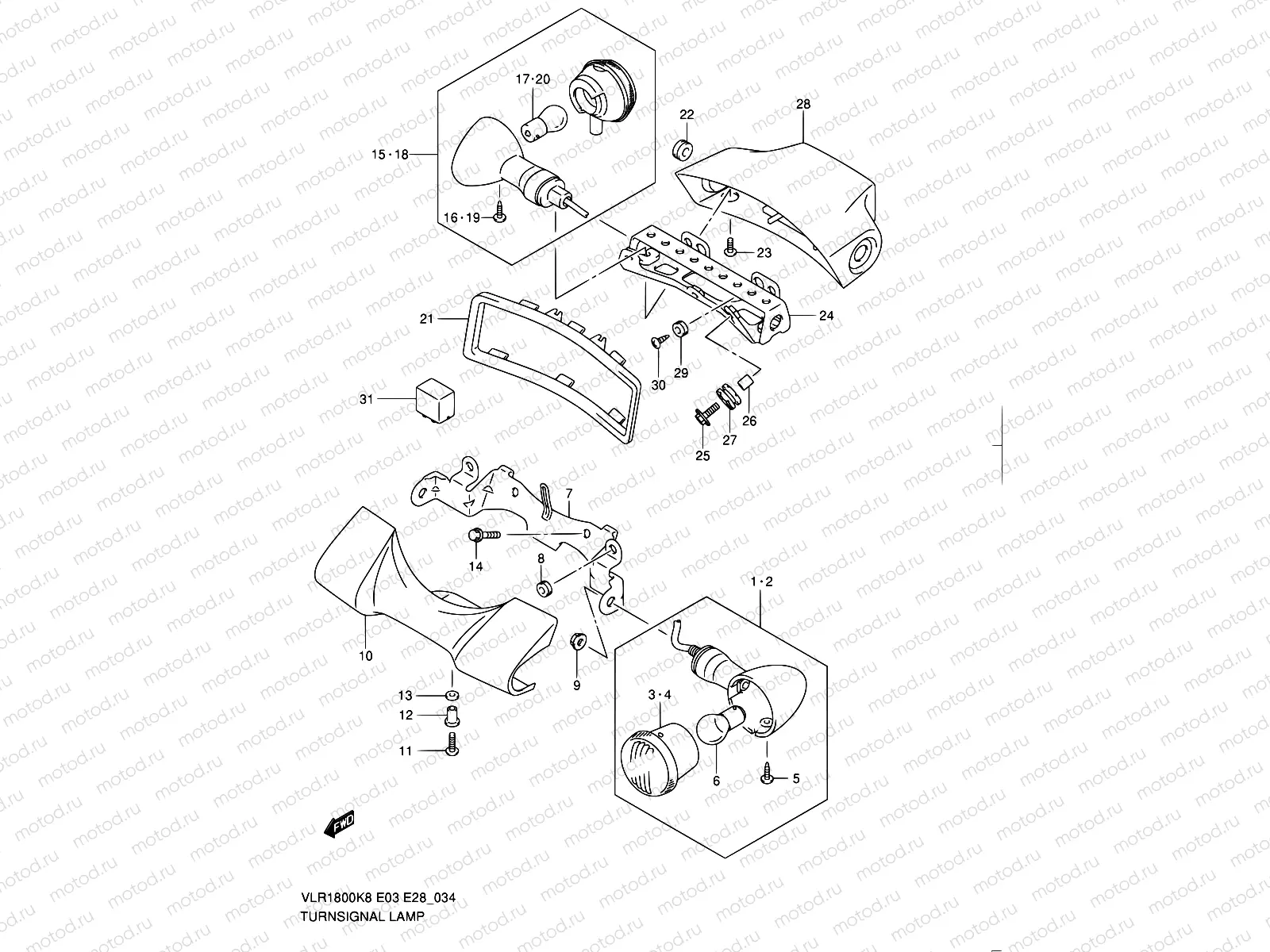

34 - TURNSIGNAL LAMP

34 - TURNSIGNAL LAMP

Например: 35601-41FC0

1

35601-41FC0

Поворотник передний, правый

8 330 ₽/шт

2

35602-41FC0

Поворотник передний, левый

8 330 ₽/шт

3

35610-38AA0

Линза

1 785 ₽/шт

4

35630-38AA0

Линза

1 696 ₽/шт

5

35623-38AA0

SCREW(4X10)

321 ₽/шт

6

40503-00838-069

P21/5w,5w, bay1 (12V 21/5W BAY15d)

7

35616-41FD1

Bracket,front v

8

09320-06027

Cushion,fuel Tank Cover Center

172 ₽/шт

9

08310-0010B

Гайка

85 ₽/шт

10

35641-41F02

COVER,FR TURNSIGNAL

5 100 ₽/шт

11

09139-05042

Винт 5X16

119 ₽/шт

12

94618-48H10

Nut

13

09160-05048

WASHER,5.5X14X1.2

81 ₽/шт

14

01550-0816B

Болт крепёжный

97 ₽/шт

15

35603-38AB4

Lamp Assy,turnsignal Rh

9 736 ₽/шт

16

35623-38AA0

SCREW(4X10)

321 ₽/шт

17

40503-00838-120

Bulb (12V 21W BA15s)

18

35604-38AB3

Clignotant

19

35623-38AA0

SCREW(4X10)

321 ₽/шт

20

40503-00838-120

Bulb (12V 21W BA15s)

21

35657-22H00

GASKET,RR TURNSIGNAL COVER

2 581 ₽/шт

22

09308-10005

GROMMET

238 ₽/шт

23

09103-06507

Болт 6X14

2 070 ₽/шт

24

35620-22H00

BRACKET,RR TURNSIGNAL

3 949 ₽/шт

25

09116-06131

BOLT(6X25)

1 210 ₽/шт

26

09180-06290

Кольцо/шайба

1 250 ₽/шт

27

09320-10051

САЙЛЕНТБЛОК

178 ₽/шт

28

35621-22H00

COVER,RR TURNSIGNAL

12 629 ₽/шт

29

09320-06027

Cushion,fuel Tank Cover Center

172 ₽/шт

30

03541-0510A

Болт

72 ₽/шт

31

38610-03F01

Relay Assy,turnsignal Lamp

6 120 ₽/шт
