Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VLR 1800 Intruder C1800R / Boulevard C109R SUZUKI VLR1800 L0 Intruder C1800R / Boulevard C109R SUZUKI 54B - REAR FENDER (MODEL L0)

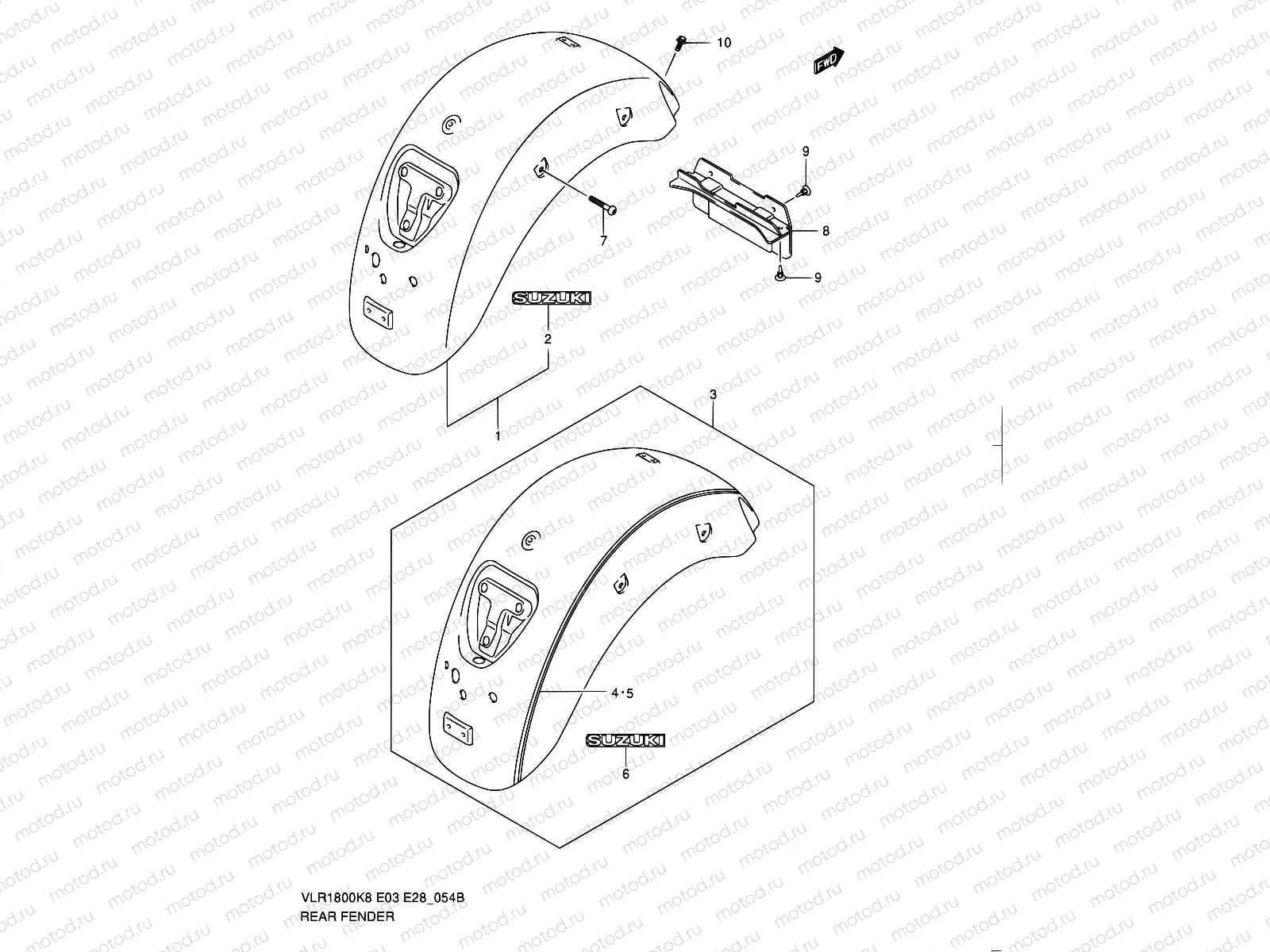

54B - REAR FENDER (MODEL L0)

54B - REAR FENDER (MODEL L0)

Например: 63100-22H31-YAY

1

63100-22H31-YAY

FENDER ASSY,RR

143 642 ₽/шт

1

63100-22H31-YHG

FENDER. REAR (GRAY)

2

68171-22H00-GMJ

EMBLEM

743 ₽/шт

2

68171-22H00-FFP

Emblem

3

63100-22HC1-HBV

FENDER ASSY,RR

125 664 ₽/шт

3

63100-22HC0-HBY

Fender assy, rear

4

68170-22H00-HEA

Tape set,rear f

4

68170-22H00-HEC

Tape set,rear f

5

68710-22H00-HEA

Tape set,rear f

5

68710-22H00-HEC

Tape set,rear f

6

68171-22H00-HFC

Emblem

6

68171-22H00-HED

mblem

7

09106-10085

BOLT(10X50)

6 060 ₽/шт

8

63411-22H00

MUDGUARD,RR FENDER FR

4 106 ₽/шт

9

09409-08308-5ES

CLIP(GRAY)

178 ₽/шт

10

01550-0812B

Болт

97 ₽/шт
