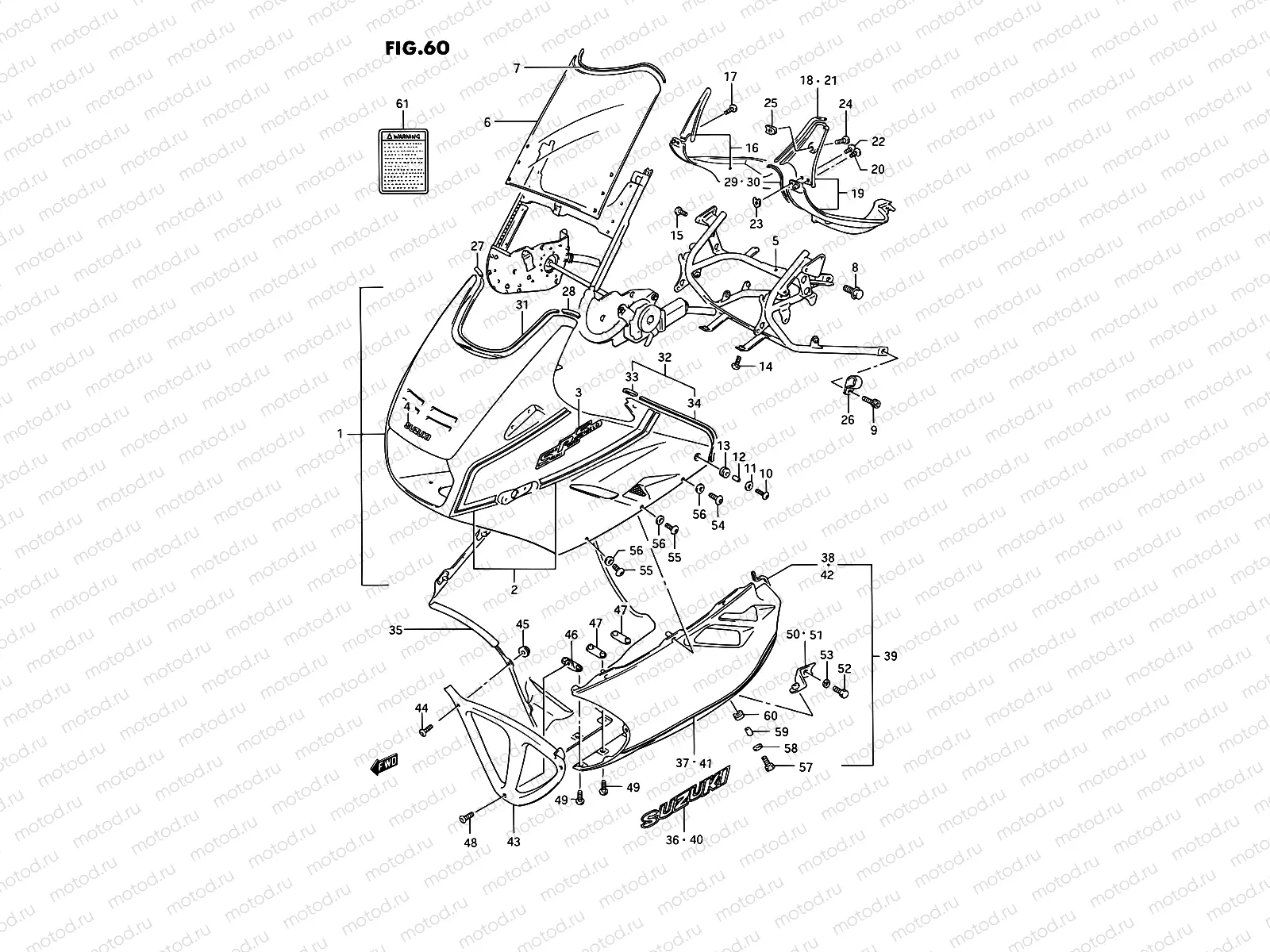

60 - COWLING (MODEL K 33J,24D)

60 - COWLING (MODEL K 33J,24D)

Например: 68181-48B01-3BH

1

68181-48B01-3BH

Emblem,cowling

1

94400-48C00-33J

Body assy, cowling (black)

1

94400-48B71-33J

ody assy, cowling (black)

1

94400-48B70-24D

ody assy, cowling (maroon)

1

94400-48B71-24D

ody assy, cowling (maroon)

2

68180-48B31-3BD

2

68180-48B31-3BC

3

68181-48B01-3BH

Emblem,cowling

3

68181-48B01-3BG

4

68185-05C10-12R

.emblem

4

68185-05C10-14B

Emblem

5

94510-48B21

race comp,cowl

6

94611-48B40

Windscreen

7

94631-48B10

Molding

8

09103-10190-XC0

Vis

9

07130-0816A

БОЛТ

113 ₽/шт

10

09139-06028

SCREW(6X20)

194 ₽/шт

11

09160-06056

WASHER(6.5X18X1)

82 ₽/шт

12

09180-06262

Кольцо/шайба

162 ₽/шт

13

09320-09016

РЕЗИНКА

162 ₽/шт

14

09139-06030

Винт (6X16)

194 ₽/шт

15

02142-06127

Винт 6X12

81 ₽/шт

16

94700-48B10-291

PANEL ASSY,R

16 969 ₽/шт

17

02142-0508A

SCREW

85 ₽/шт

18

94635-19C00

MOLDING

918 ₽/шт

19

94800-48B10-291

Panel

20

02142-0508A

SCREW

85 ₽/шт

21

94635-19C00

MOLDING

918 ₽/шт

22

02142-0512A

Болт

85 ₽/шт

23

09148-05020

Гайка

97 ₽/шт

24

03241-M0512-A

Vis

25

09148-05020

Гайка

97 ₽/шт

26

09403-18410

Collier

27

94426-48B10

CAP,PANEL & COWLING,R

375 ₽/шт

28

94427-48B10

CAP,PANEL & COWLING,L

375 ₽/шт

29

94591-48B10

Molding.cowl.p.

30

94592-48B10

Moldimg. panel lh

31

94635-19C00

MOLDING

918 ₽/шт

32

94439-48B00

MOLDING,COWLING BODY SIDE

1 263 ₽/шт

33

94651-48B00

.cover

34

94479-48B00

MOLDING,COWLING BODY SIDE

942 ₽/шт

35

97600-48C10-13L

over,cwl.lwr.r

35

97600-48B62-33J

Cover assy, lower rh (black)

35

97600-48B62-24D

Cover assy, lower rh (maroon)

35

97600-48C11-33J

over assy, lower rh (black)

35

97600-48C11-24D

over assy, lower rh (maroon)

36

68111-31311-3BF

"Emblem,""suzuki"""

36

68111-31311-3BE

37

68685-48B31-3BD

37

68685-48B31-3BC

38

94479-48B00

MOLDING,COWLING BODY SIDE

942 ₽/шт

39

94480-48B00

39

97700-48B62-33J

Cover assy, lower lh (black)

39

97700-48B62-24D

Cover assy, lower lh (maroon)

39

97700-48C11-33J

over assy, lower lh (black)

39

97700-48C10-24D

over assy, lower lh (maroon)

39

97700-48C11-24D

over assy, lower lh (maroon)

40

68111-31311-3BF

"Emblem,""suzuki"""

40

68111-31311-3BE

41

68695-48B31-3BD

Tape,l

42

94479-48B00

MOLDING,COWLING BODY SIDE

942 ₽/шт

43

94475-48B02

Cover,cowling

44

09139-05025

БОЛТ НЕ КОЛЕСНЫЙ, МЕТАЛЛ

162 ₽/шт

45

08316-2005A

Гайка

85 ₽/шт

46

94490-06B00

Plate,lower

47

94493-06B00

race comp,cowl

48

09139-06027

Винт (6х12)

194 ₽/шт

49

09139-06039

SCREW(6X16)

1 410 ₽/шт

50

94580-48B11

race,cowllower

51

94590-48B11

race,lower,l.

52

01500-08127

Болт

81 ₽/шт

53

08321-01087

Пластина замка

81 ₽/шт

54

09139-06028

SCREW(6X20)

194 ₽/шт

55

09139-06030

Винт (6X16)

194 ₽/шт

56

09161-07006

Шайба

307 ₽/шт

57

09139-06028

SCREW(6X20)

194 ₽/шт

58

09160-06056

WASHER(6.5X18X1)

82 ₽/шт

59

09180-06121

SPACER(6.4X9.2X12)

1 330 ₽/шт

60

09320-09016

РЕЗИНКА

162 ₽/шт

61

68922-14F31

Label,screen

567 ₽/шт

61

68922-14F01

Label,screen

771 ₽/шт
