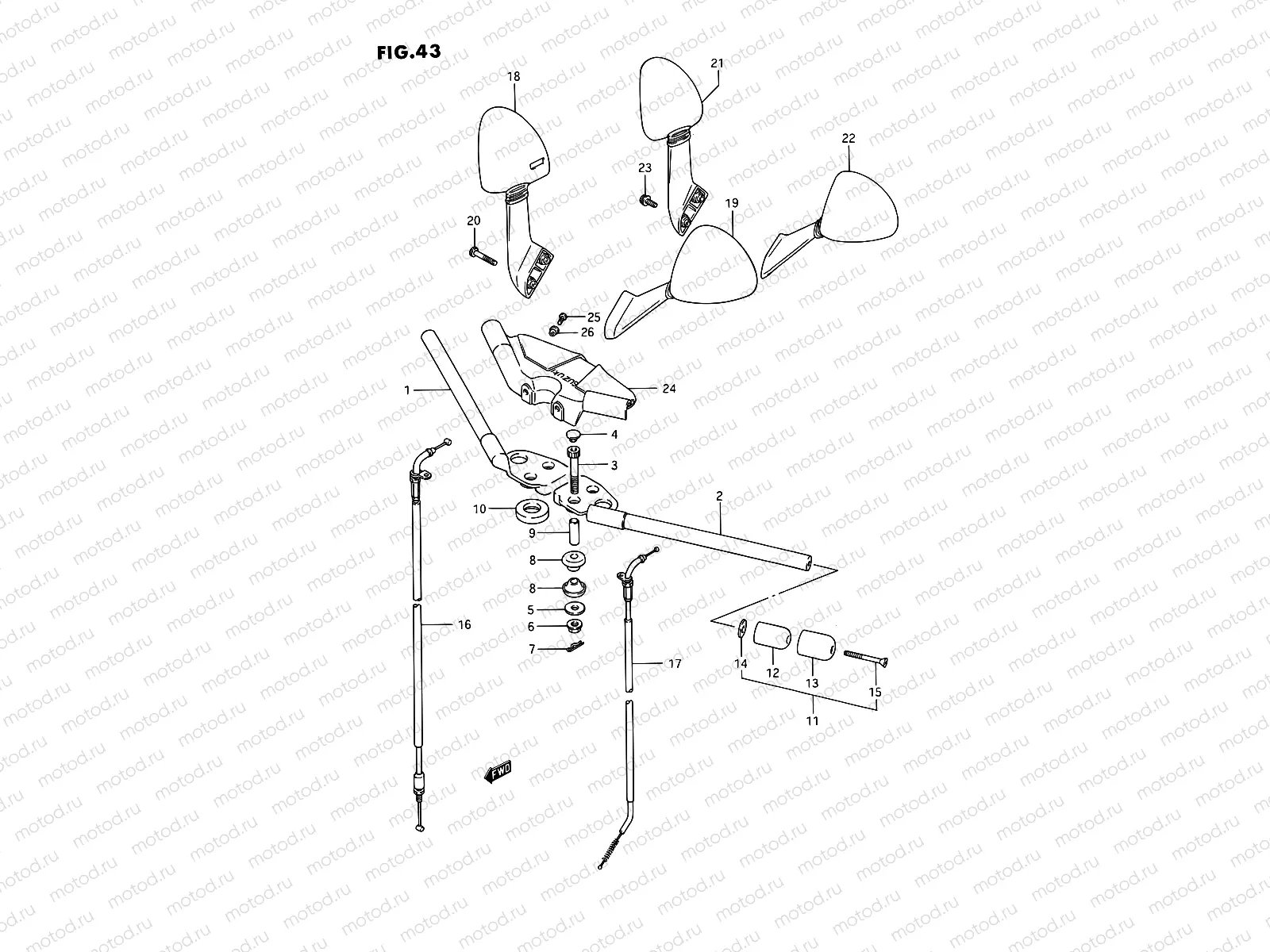

43 - HANDLE BAR (MODEL J/K)

43 - HANDLE BAR (MODEL J/K)
Например: 56111-48B70
1
56111-48B70
Handle bar, rh (hole 26)
2
56151-48B70
Handlebar,lh
3
09106-10049
Vis
5
09160-10094
WASHER(10.5X30X3.2)
119 ₽/шт
6
08319-3110B
Гайка
1 920 ₽/шт
7
09385-10005
Крепёж
900 ₽/шт
8
56240-42A01
Rubber,upper
9
56243-48B31
AFSTANDBUS
10
56559-48B70
Cushion
11
56200-48822
Balancer set,hb
12
56271-00A00
BALANCER,HANDLEBAR
1 701 ₽/шт
13
56274-00A11
Cap
14
56275-34401
SPACER,BALANCER
278 ₽/шт
15
02122-0660B
Болт
81 ₽/шт
16
58300-48B10
Câble de gaz
17
58410-48B00
CABLE ASSY,STARTER
2 776 ₽/шт
18
56500-48B52-23S
Rétroviseur droite
18
56500-48B52-24D
Mirror assy, rear view rh (maroon)
18
56500-48B52-24V
Rétroviseur droite
18
56500-48B52-33J
Rétroviseur droite
19
56600-48B52-23S
Mirror assy, rear view lh (silver)
19
56600-48B52-24D
Rétroviseur gauche
19
56600-48B52-24V
Rétroviseur gauche
19
56600-48B52-33J
MIRROR ASSY,RR VIEW,L
20 332 ₽/шт
20
07130-0640B
Болт
119 ₽/шт
21
56500-48B32-23S
Mirror assy, rear view rh (silver)
21
56500-48B32-24D
Mirror assy, rear view rh (maroon)
21
56500-48B52-24V
Rétroviseur droite
21
56500-48B52-33J
Rétroviseur droite
21
56500-48B60-24D
Mirror assy, rear view rh (maroon)
21
56500-48B60-24V
Mirror assy, rear view rh (blue)
21
56500-48B60-33J
Mirror assy, rear view rh (black)
22
56600-48B32-23S
Mirror assy, rear view lh (silver)
22
56600-48B32-24D
Mirror assy, rear view lh (maroon)
22
56600-48B52-24V
Rétroviseur gauche
22
56600-48B52-33J
MIRROR ASSY,RR VIEW,L
20 332 ₽/шт
22
56600-48B60-24D
Mirror assy, rear view lh (maroon)
22
56600-48B60-24V
Mirror assy, rear view lh (blue)
22
56600-48B60-33J
Mirror assy, rear view lh (black)
23
07120-0620B
Болт
102 ₽/шт
24
56170-48B00
Cover,steering
25
02142-0512A
Болт
85 ₽/шт
26
09169-05009
Шайба
1 640 ₽/шт
