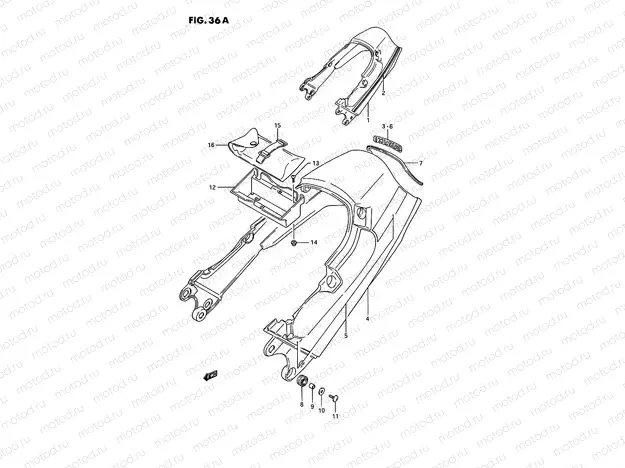

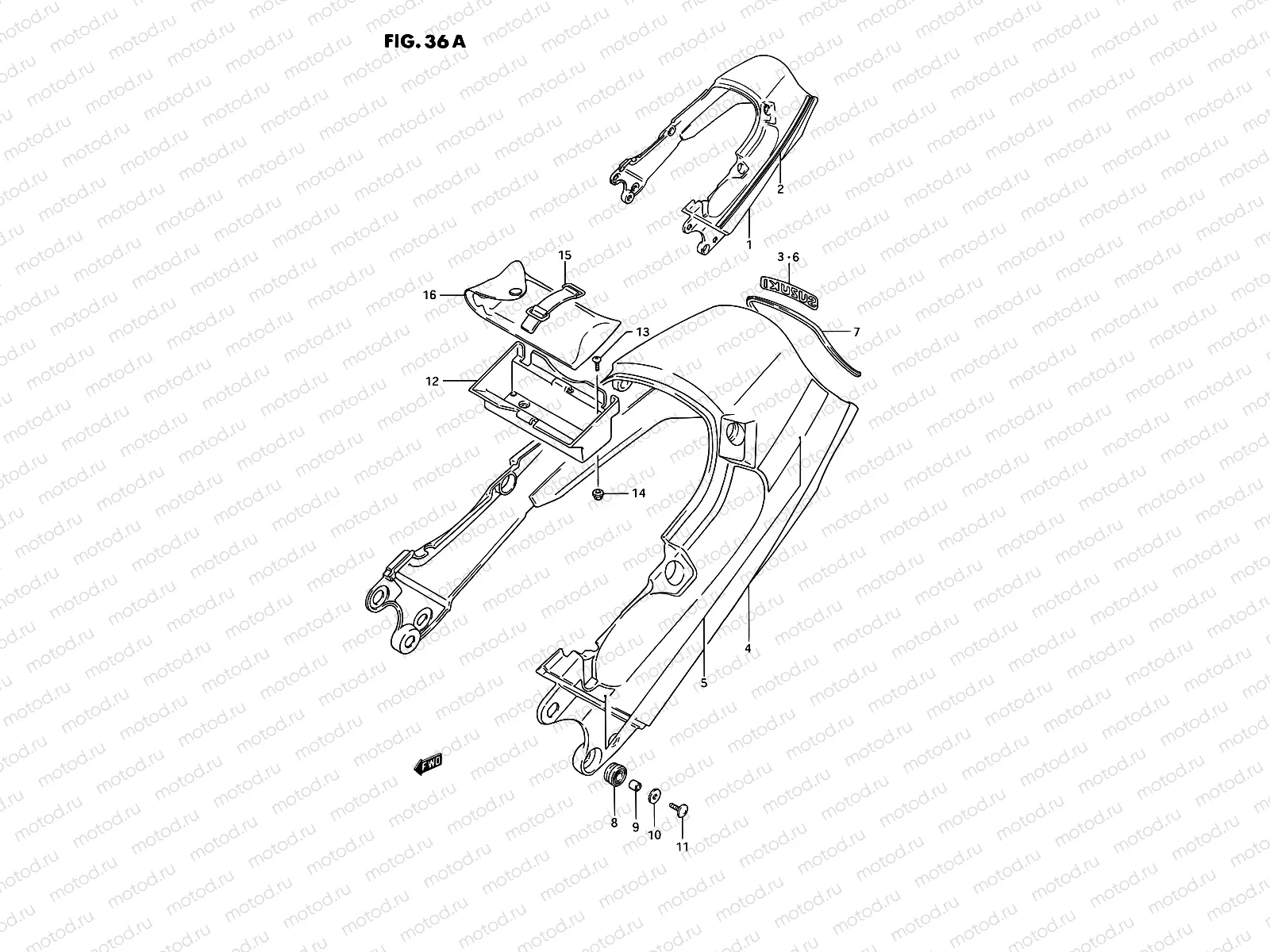

36A - SEAT TAIL COVER (MODEL K)

36A - SEAT TAIL COVER (MODEL K)
Например: 45500-48890
1
45500-48890
Box,seat tail
1
45500-48851-24D
Cover set, seat tail (maroon)
1
45500-48850-33J
Cover set, seat tail (black)
1
45500-48851-33J
Cover set, seat tail (black)
2
68160-48B31-3BC
2
68160-48B31-3BD
3
68271-34A00-0FP
Emblem (silver)
3
68271-34A00-23S
Emblem,cover
4
45500-48890
Box,seat tail
4
45500-48861-2VV
Cover set, seat tail
5
68160-48B40-12R
.tape set, seat tail cover
6
68271-34A00-23S
Emblem,cover
7
94635-19C00
MOLDING
918 ₽/шт
8
47161-48B10
Damper (rear)
9
09180-06318
Кольцо/шайба
1 990 ₽/шт
10
09160-06109
Шайба
85 ₽/шт
11
02142-0620B
Болт
1 060 ₽/шт
12
47431-48B10
Holder, tool
13
02142-0412A
Болт
740 ₽/шт
14
08316-2004A
Гайка
1 330 ₽/шт
15
09462-00094
Band
2 850 ₽/шт
16
09800-21011
Tool assy
