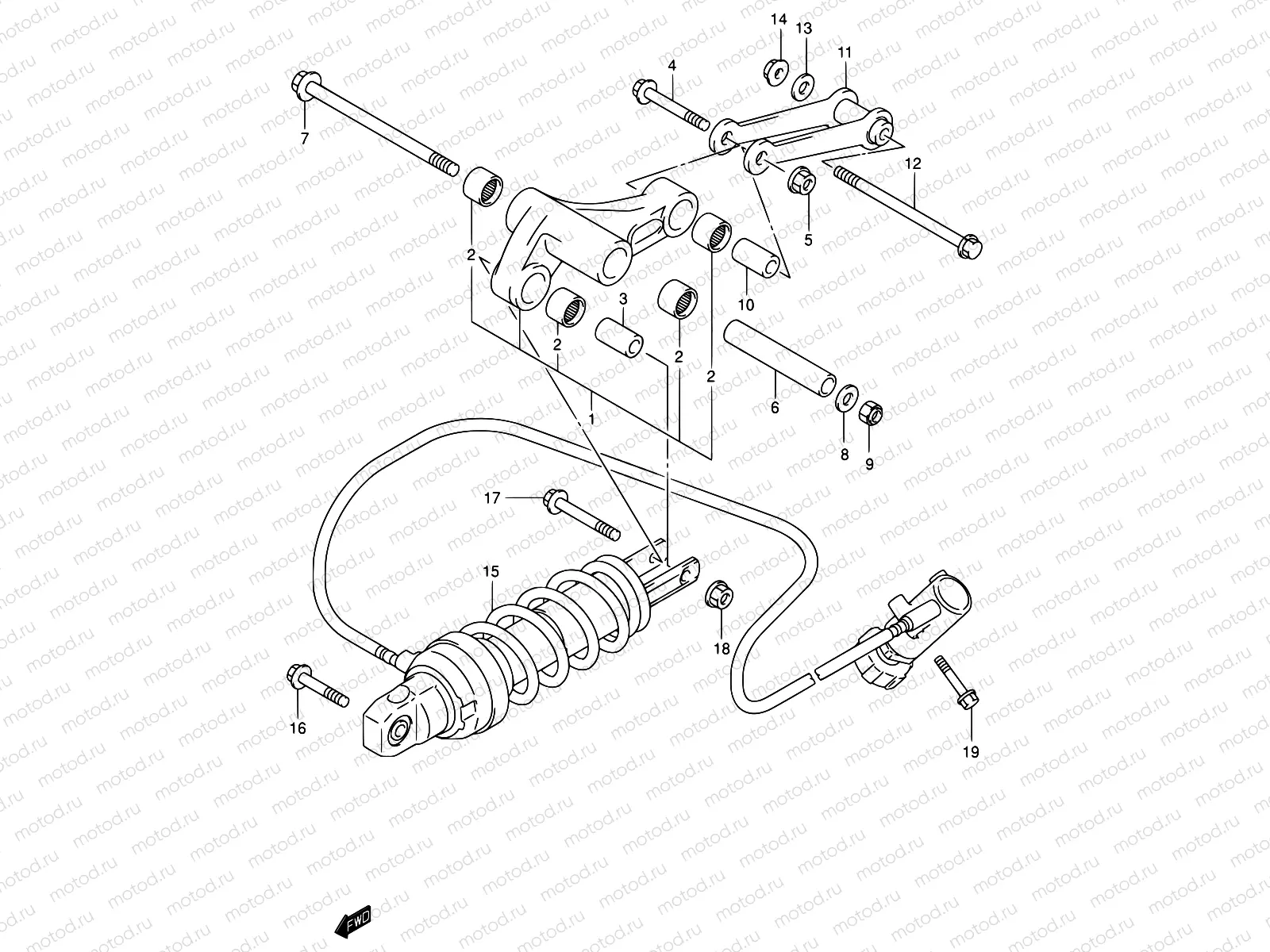

59B - REAR CUSHION LEVER (MODEL K1/K2)

59B - REAR CUSHION LEVER (MODEL K1/K2)
Например: 62610-14810
1
62610-14810
LEVER SET,RR CUSHION
38 709 ₽/шт
2
09263-17057
Bearing
1 324 ₽/шт
3
62684-40A10
SPACER,RR CUSHION LEVER
646 ₽/шт
4
09103-10101
Болт нижней опоры
1 920 ₽/шт
5
08319-31107
Гайка
210 ₽/шт
6
62626-33D00
SPACER,RR CUSHION LEVER CTR
1 173 ₽/шт
7
62621-33D00
BOLT,RR CUSHION LEVER CTR
1 748 ₽/шт
8
09160-12080
Шайба
2 580 ₽/шт
9
08319-2112A
Гайка
211 ₽/шт
10
62684-40A10
SPACER,RR CUSHION LEVER
646 ₽/шт
11
62640-14F10
ROD,RR CUSHION LEVER
6 608 ₽/шт
12
09103-10198
BOLT(10X132)
4 420 ₽/шт
13
09160-10039
Шайба
119 ₽/шт
14
09159-10027
Гайка
211 ₽/шт
15
62100-14FB0
ABSORBER ASSY,RR SHOCK
129 022 ₽/шт
16
09103-10126
BOLT(10X48)
226 ₽/шт
17
09103-10027
BOLT(10X58)
2 310 ₽/шт
18
08319-31107
Гайка
210 ₽/шт
19
01550-0640A
Болт
1 410 ₽/шт
