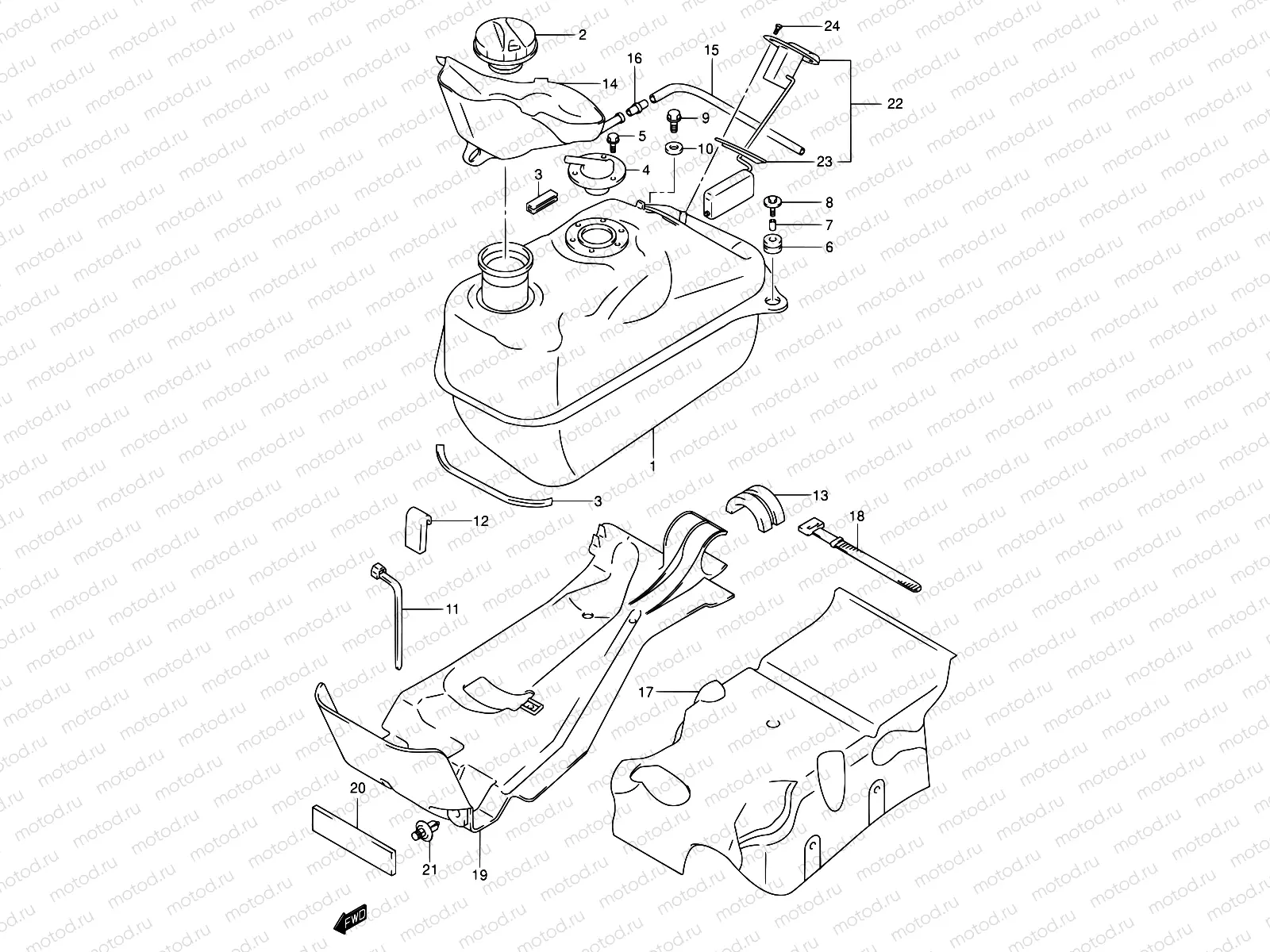

34A - FUEL TANK (MODEL K1/K2)

34A - FUEL TANK (MODEL K1/K2)

Например: 44110-14F10

1

44110-14F10

uel tank

1

44110-14F50

uel tank

2

44200-10F01

Крышка топливного бака

5 982 ₽/шт

3

68241-04X50-00B

MOLDING

1 696 ₽/шт

4

89485-65D00

VALVE,FUEL CUT

6 061 ₽/шт

5

01570-0510B

Болт

1 520 ₽/шт

6

44512-04F01

Cushion,fuel Tank Side

285 ₽/шт

7

09180-06267

Кольцо/шайба

2 030 ₽/шт

8

09116-06147

Болт копрусный

162 ₽/шт

9

01550-0625A

Болт

102 ₽/шт

10

09160-06501

Шайба

102 ₽/шт

11

09407-25402

CLAMP(L:250)

238 ₽/шт

12

44541-14F00

CUSHION,FUEL TANK LWR,R

438 ₽/шт

13

44541-14F10

CUSHION,FUEL TANK LWR

438 ₽/шт

14

44261-14F00

TRAY,FUEL TANK INLET

2 561 ₽/шт

15

09352-70104-600

Hose(7X10.2X600)

561 ₽/шт

16

09367-08001

JOINT

211 ₽/шт

17

44191-14F10

Body,heat shld.

18

09407-18402

Струбцина (L:165)

211 ₽/шт

19

44271-14F20

Cover,fuel tank

20

47451-38A01

CUSHION,TOOL HOLDER

254 ₽/шт

21

09409-08333

CLIP

129 ₽/шт

22

34810-14F00

GAUGE ASSY,FUEL LEVEL

7 937 ₽/шт

23

34825-45100

Прокладка датчика топливного

1 131 ₽/шт

24

01570-0510B

Болт

1 520 ₽/шт
