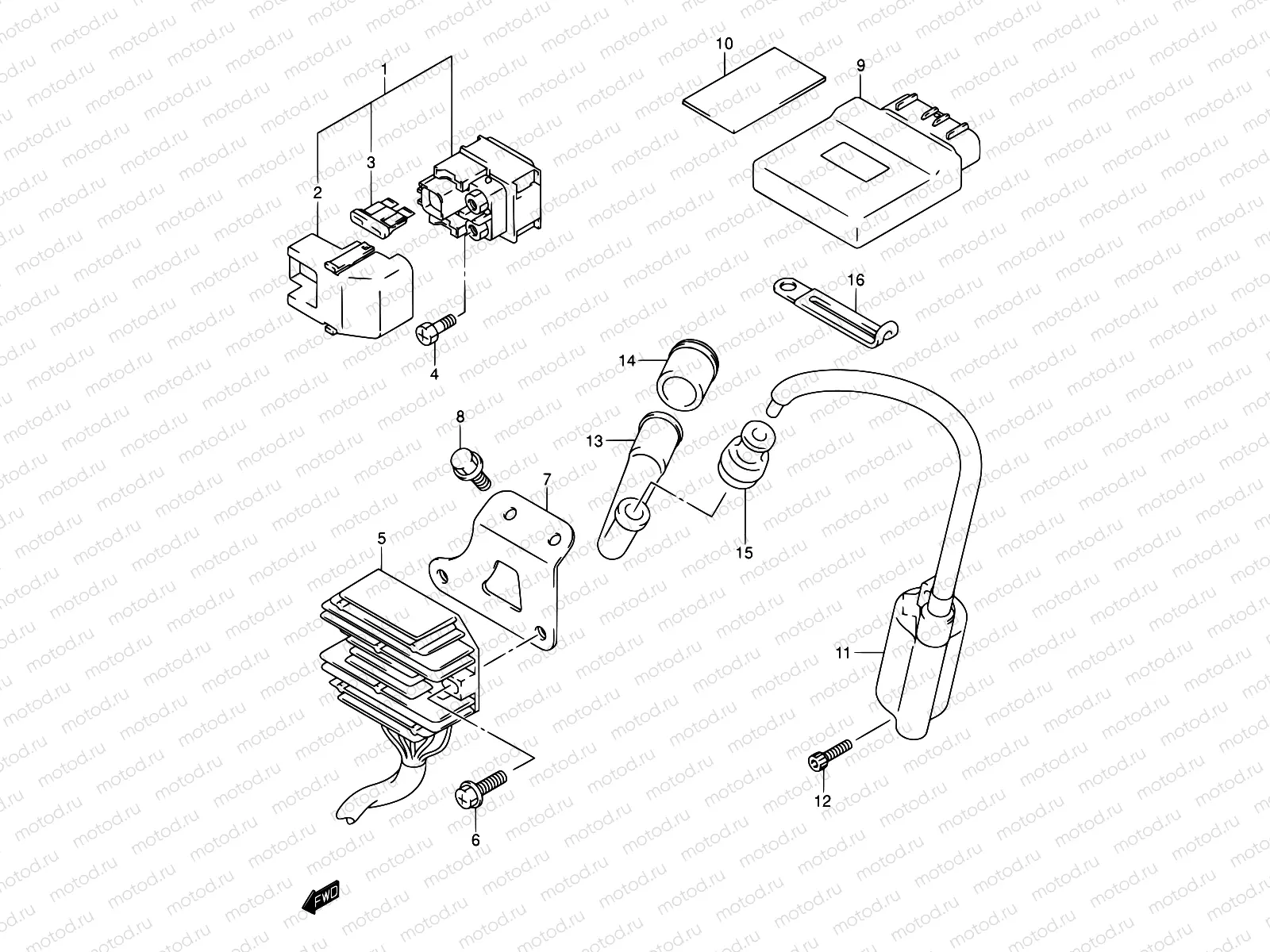

25A - ELECTRICAL (MODEL K1/K2)

25A - ELECTRICAL (MODEL K1/K2)
Например: 31800-21E20
1
31800-21E20
Relais - démarreur
2
31861-47E00
Крышка
841 ₽/шт
3
09481-30101
Предохранитель
129 ₽/шт
4
09128-06013
SCREW(6X8)
740 ₽/шт
5
32800-14F01
RECTIFIER ASSY
27 957 ₽/шт
6
02162-0620C
Болт
85 ₽/шт
7
32831-14F10
Bracket,rect fi
8
01550-0612B
БОЛТ
81 ₽/шт
9
32900-15F10
Igniter assy
10
33651-37000
PROTECTOR(170X95X3.0)
468 ₽/шт
11
33410-14F00
Катушка зажигания
11 183 ₽/шт
12
07130-0520B
Болт
1 520 ₽/шт
13
33510-45010
Колпачок свечи зажигания
2 988 ₽/шт
14
33541-44D00
Заглушка
340 ₽/шт
15
33542-38B00
Уплотнение
162 ₽/шт
16
09404-06039
Clamp(L:65)
194 ₽/шт
