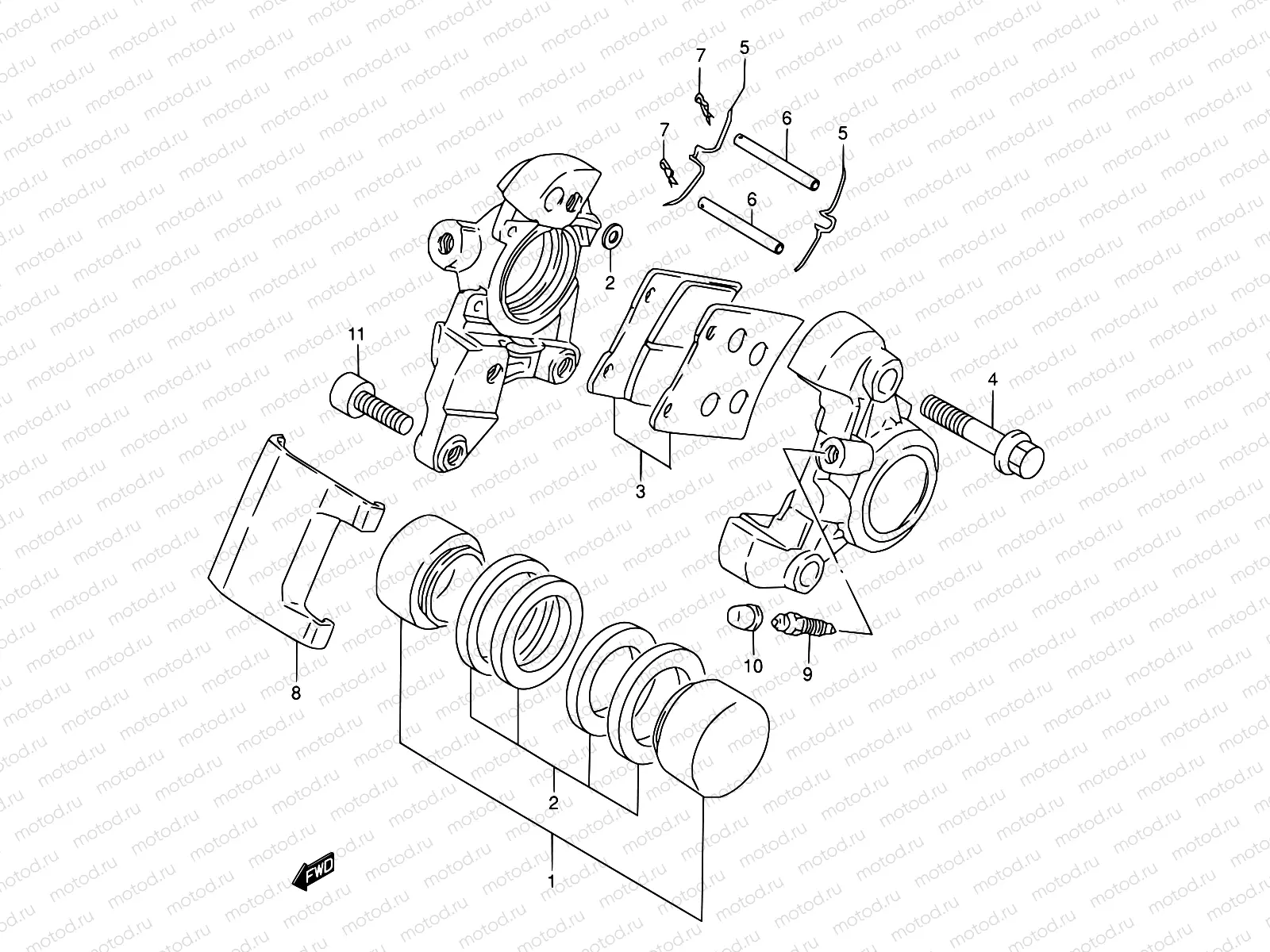

58 - REAR CALIPER (MODEL W)

58 - REAR CALIPER (MODEL W)

Например: 69100-38B50-999

0

69100-38B50-999

CALIPER ASSY,RR

44 880 ₽/шт

1

69100-38851

PISTON SET

12 903 ₽/шт

2

69100-38831

SEAL SET,PISTON

2 125 ₽/шт

3

69100-38870

PAD SET

6 530 ₽/шт

4

59145-16700

BOLT,HOUSING

504 ₽/шт

5

59143-16700

Пружина

272 ₽/шт

6

69141-45000

PIN,PAD

318 ₽/шт

7

69142-45000

CLIP,PAD PIN

275 ₽/шт

8

59151-24A01

COVER

3 490 ₽/шт

9

59121-18410

BLEEDER

759 ₽/шт

10

55156-66310

CAP,BLEEDER PLUG

221 ₽/шт

11

07130-1020B

Болт

2 310 ₽/шт
