Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VL 1500 Intruder LC SUZUKI VL1500 W Intruder LC SUZUKI (VIN: JS1AL121, JS1VY51A) 17 - 2ND AIR (MODEL W/X/Y E18)

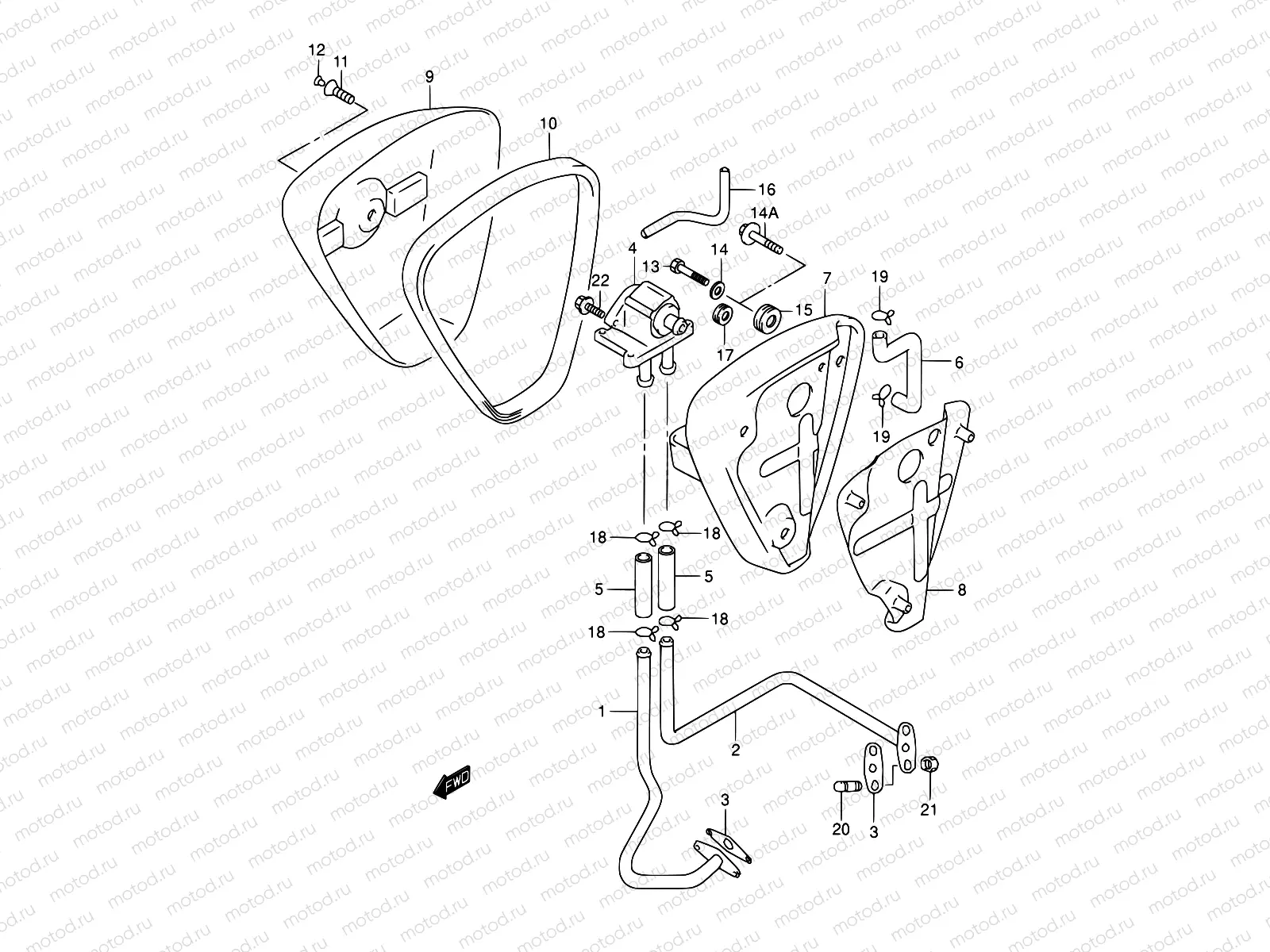

17 - 2ND AIR (MODEL W/X/Y E18)

17 - 2ND AIR (MODEL W/X/Y E18)
Например: 18410-10F00
1
18410-10F00
PIPE,2ND AIR FR
3 851 ₽/шт
2
18420-10F00
Pipe comp,2nd a
3
18441-45C01
Прокладка
446 ₽/шт
4
18450-10F03
VALVE ASSY,2ND AIR
16 405 ₽/шт
5
18461-10F00
Hose, 2nd air valve
6
18711-10F00
Hose,2nd air cl
7
18610-10F00
Bracket comp,2n
8
18740-10F00
Plate comp,2nd
9
18780-10F00
COVER ASSY,2ND AIR
13 685 ₽/шт
10
18788-48E00
Damper
11
09106-08089
BOLT(8X25)
5 940 ₽/шт
12
09250-06011
КОЛПАЧОК БОЛТА КРЕПЛЕНИЯ
194 ₽/шт
13
01500-0640B
Болт
81 ₽/шт
14
09160-06114
Шайба
1 250 ₽/шт
15
09320-10014
CUSHION
2 310 ₽/шт
16
09355-35007-600
Hose(3.5X7.5X600)
575 ₽/шт
17
09320-08509
Cushion(8X22X7)
210 ₽/шт
18
09401-13409
ХОМУТ МАЛЫЙ
1 250 ₽/шт
19
09401-15101
ХОМУТ МАЛЫЙ
162 ₽/шт
20
01421-0616A
Болт заклепка
114 ₽/шт
21
08319-31067
Гайка
153 ₽/шт
22
01550-0616B
БОЛТ
81 ₽/шт
